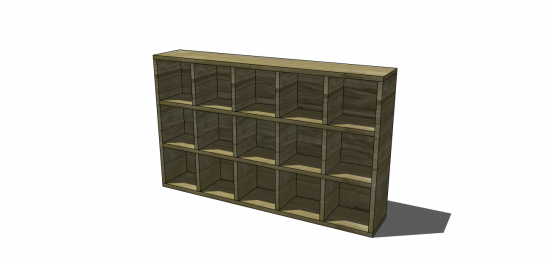

Project Image

Free DIY Furniture Plans to Build a Wood Curio Case! The perfect display case for all of your pretties! Can't wait to see what you put in yours! Xx...Rayan

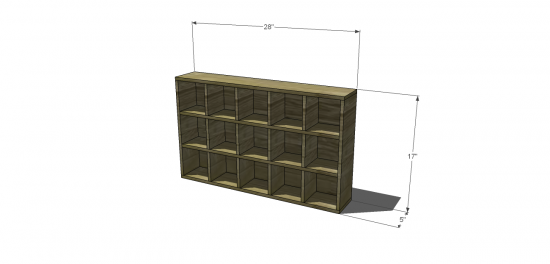

Dimensions
Dimensions for This Project
Tools
  • Tape Measure
  • Saw – Jig, Circular, or Miter
  • Drill
  • Square
  • Sander
  • Brad nailer
Lumber
  • 1 half sheet of ½” plywood
Materials
  • 1-1/4” brad nails
  • Edge banding, optional
  • 2’ of rope for the handles
  • Wood filler
  • Sandpaper
  • Wood glue
  • Finishing Supplies
Cut List
  • 1 – ½” plywood at 16” x 27” – Bottom
  • 2 – ½” plywood at 5” x 16” – Sides
  • 2 – ½” plywood at 5” x 28” – Top & Bottom
  • 2 – ½” plywood at 4-1/2” x 27” – Long Dividers
  • 4 – ½” plywood at 4-1/2” x 16” – Short Dividers
Instructions

Before beginning to build, always check in on my site to make sure you have the most up to date set of plans, I occasionally update and change the plans to make the building process easier or to allow for less expensive purchasing of materials! Read through the entire set of instructions and all comments before beginning this project. If you print out or save plans, be sure to check in on my site to be sure you have the most up to date set of plans, as I occasionally update things for ease of building or buying. If you are new to building, read through the GETTING STARTED section and other articles found under the BUILD tab in the menu on my site, it has valuable information about how to get started, tools and techniques. If you are unfamiliar with the finishing process, visit my Finishing school for some tips and tricks for painting like a pro and for special finishing practices. Use glue to secure your joints and Consider Painting or Staining individual sections prior to assembling. This makes the paint application virtually flawless. Coat with a spray on Poly or Wipe on Poly to protect your finish and your piece and it will last for ages. Adhere to all safety standards and guidelines, and be sure you follow safety protocol throughout your build. If you are unsure about whether you are building safely, run a quick online search for the tool or technique you are using, or contact me via email or post to the forum before you move ahead. My contact info can be found in the menu of my site.

Step 1
Step 1

Edge banding will be applied to the exposed edges of the plywood before assembly.

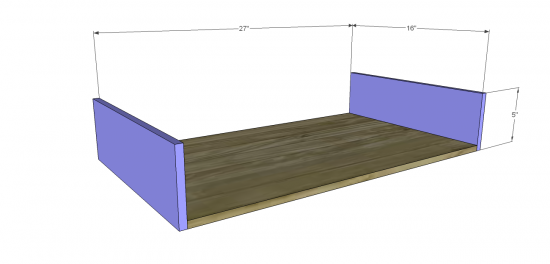

Cut the pieces for the sides and the bottom. Attach the sides to the bottom using glue and 1-1/4” brad nails.

Step 2
Step 2

Cut the pieces for the top and bottom. Secure to the sides and bottom using glue and 1-1/4” brad nails.

Step 3
Step 3
Step 3

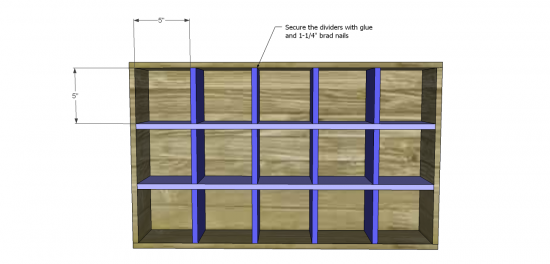

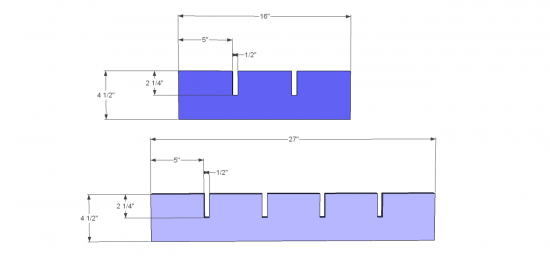

Cut the pieces for the dividers. Cut the notches as shown using a jigsaw. Insert the pieces into the box as shown, then secure using 1-1/4” brad nails through the sides into the dividers.

Step 4

Mark the position of the handles and drill holes big enough for the rope to pass through. Knot the rope on the inside.

Finishing Instructions

Fill any Screw, Nail or Pocket Holes, Sand and Finish as Desired. For Finishing Tips and Tricks visit my Finishing School
