How would you all like to venture into a whole new set of DIY Outdoor Furniture plans and a new collection? Well as luck would have it, that is precisely what we shall be doing! Yahoo! These plans are not all that unlike our most popular collection to date, and our most popular set of plans to date for Free DIY Furniture Plans to Build a Provence Beam Dining Table with 4x4's and even has quite a bit in common with our beloved Free DIY Furniture Plans to Build a Rustic Outdoor Table with it's built in ice cooler component. Or I should say, it will have much in common with it when I'm all finished with it... stay tuned for some amazing pieces to come in the next couple of weeks, trust me on this one! Can you get excited for some amazing DIY outdoor party furniture building? I sure can! Xx... Rayan

Dimensions
Tools
Lumber

5 - 1x4 at 8'

2 - 2x2 at 8'

Materials
Cut List

7 - 1x4 at 49" Top

3 - 1x4 at 23 1/2" Frame

2 - 1x4 at 13 1/4" Supports

4 - 2x2 at 17 9/16" Legs

2 - 2x2 at 15" Stretchers

2 - 2x2 at 16 15/16" Trusses

1 - 2x2 at 40 3/4" Center Rail



Instructions

Before beginning to build, always check in on my site to make sure you have the most up to date set of plans, I occasionally update and change the plans to make the building process easier or to allow for less expensive purchasing of materials! Read through the entire set of instructions and all comments before beginning this project. If you print out or save plans, be sure to check in on my site to be sure you have the most up to date set of plans, as I occasionally update things for ease of building or buying. If you are new to building, read through the GETTING STARTED section and other articles found under the BUILD tab in the menu on my site, it has valuable information about how to get started, tools and techniques. If you are unfamiliar with the finishing process, visit my Finishing school for some tips and tricks for painting like a pro and for special finishing practices. Use glue to secure your joints and Consider Painting or Staining individual sections prior to assembling. This makes the paint application virtually flawless. Coat with a spray on Poly or Wipe on Poly to protect your finish and your piece and it will last for ages. Adhere to all safety standards and guidelines, and be sure you follow safety protocol throughout your build. If you are unsure about whether you are building safely, run a quick online search for the tool or technique you are using, or contact me via email or post to the forum before you move ahead. My contact info can be found in the menu of my site.

Step 1

Build out your frame. Use your Kreg Jig set for 3/4" stock and your 1-1/4” Pocket Hole Screws and Wood glue to secure the pieces together. Use your Clamps to hold the boards together while you secure them and consider letting your glue setup for a bit before you fasten with your screws.

Step 2

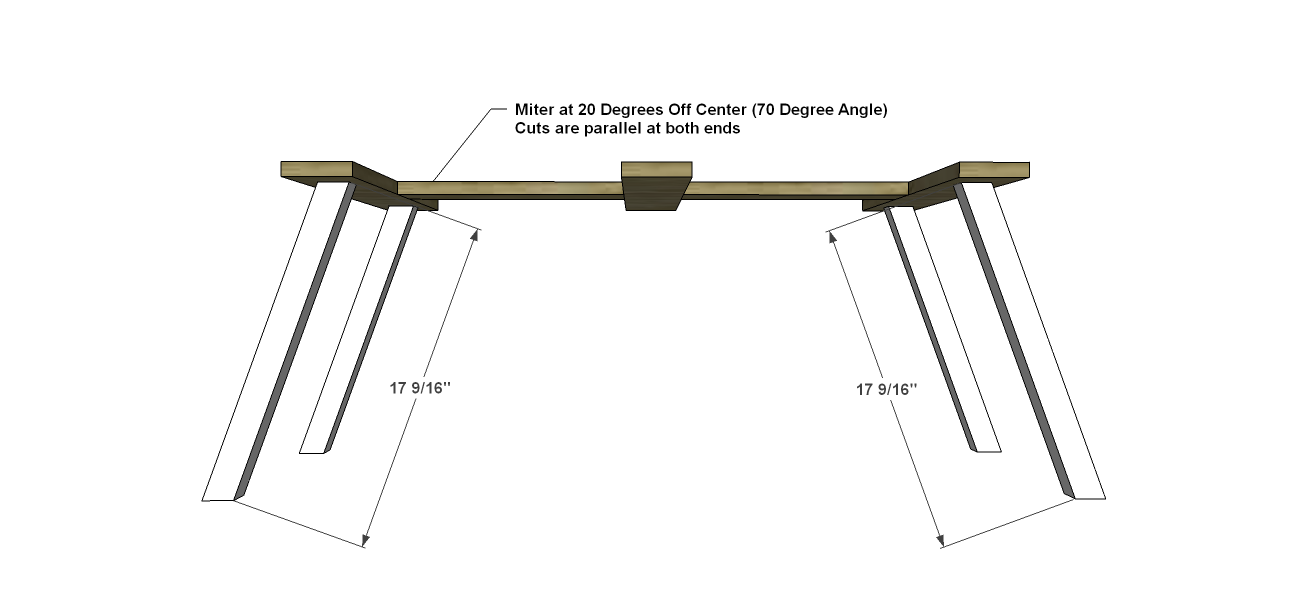

Cut and Fasten your Legs. Your legs will be mitered at 20 Degrees Off Center, which is a 70 Degree Angle if you Center Mark on your Miter Saw reads as 90 rather than 0. Your cuts will be parallel at both ends. To secure your legs in place, use your countersink bit and 1 1/2" wood screws and glue.

Step 3

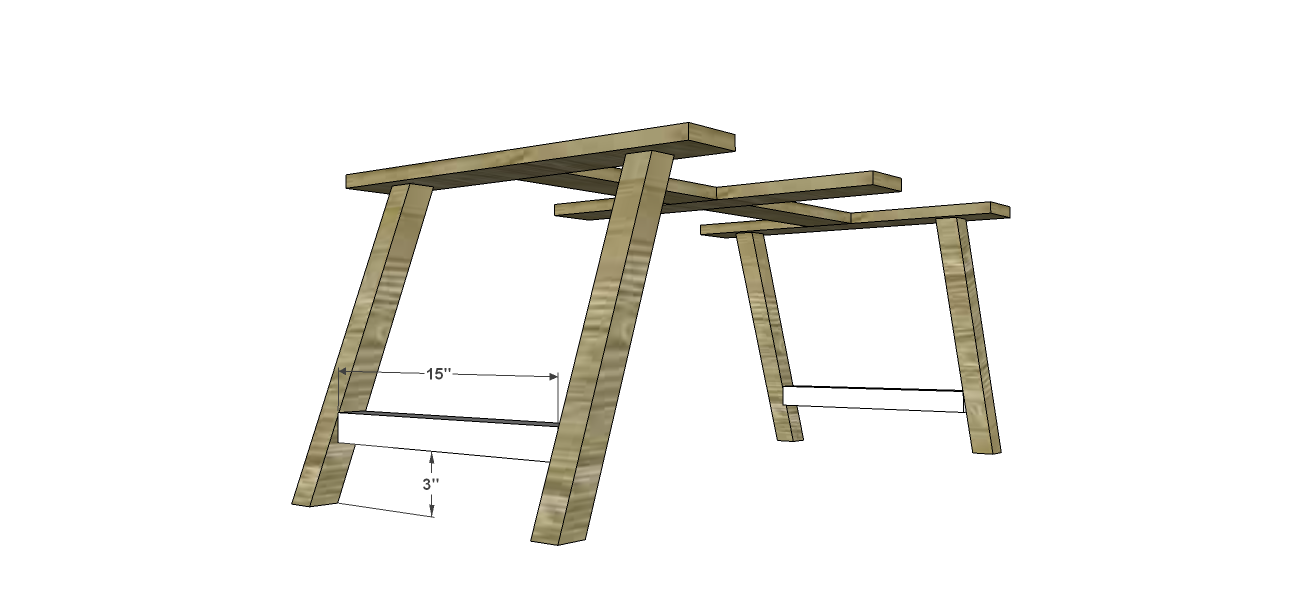

Attach your Stretchers. These are just a straight cut and will be fastened in place 3" up from ground level. You can fasten these in place using your Kreg Jig set for 1 1/2" stock and your 2 1/2" pocket hole screws and glue. You will want to align the front edges of your stretchers with the front edges of your legs, which will cause a bit of overhang on the backside, but will look better.

**Note: If you cut your Center Rail for the next step in advance you may want to attach it to the stretchers and then attach the stretchers to the legs, just to be sure you don't end up with a piece that is either too long or too short and have to recut or refasten something.

Step 4

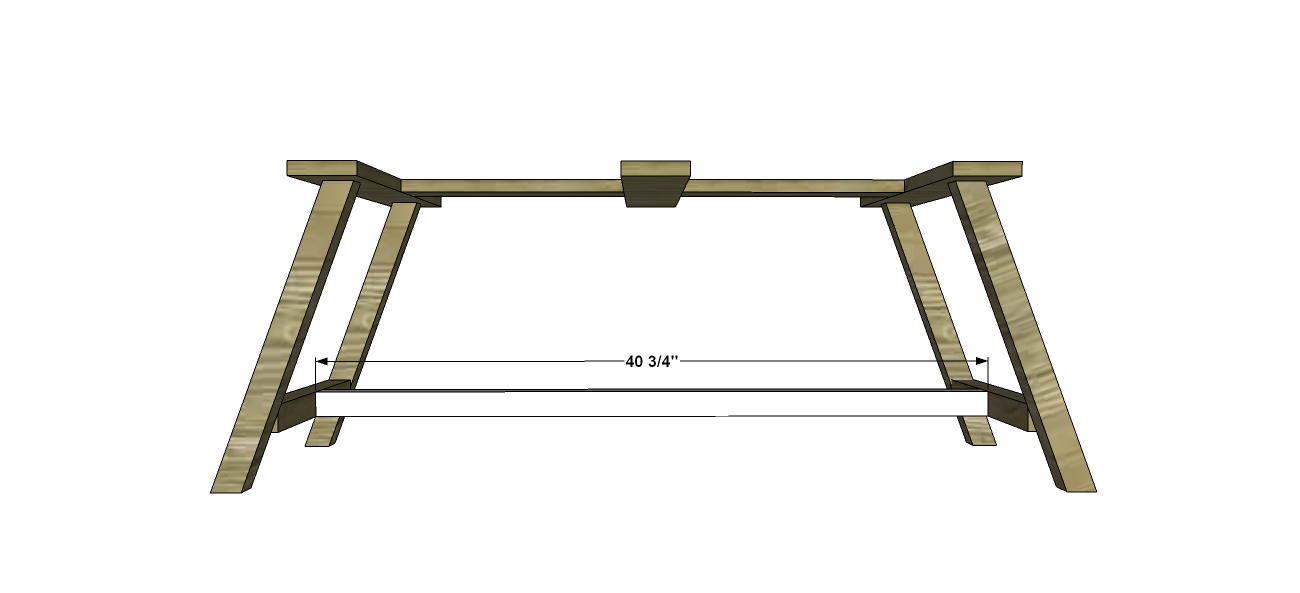

Cut and Attach your Center Rail. Since the previous step leaves a bit of wiggle room, you may want to measure this just before you are ready to attach it and after you have secured your stretchers so you know precisely how long this piece should be. Once you have this piece cut and ready to secure, use your Kreg Jig set for 1 1/2" stock and your 2 1/2" pocket hole screws and glue to secure from underneath.

Step 5

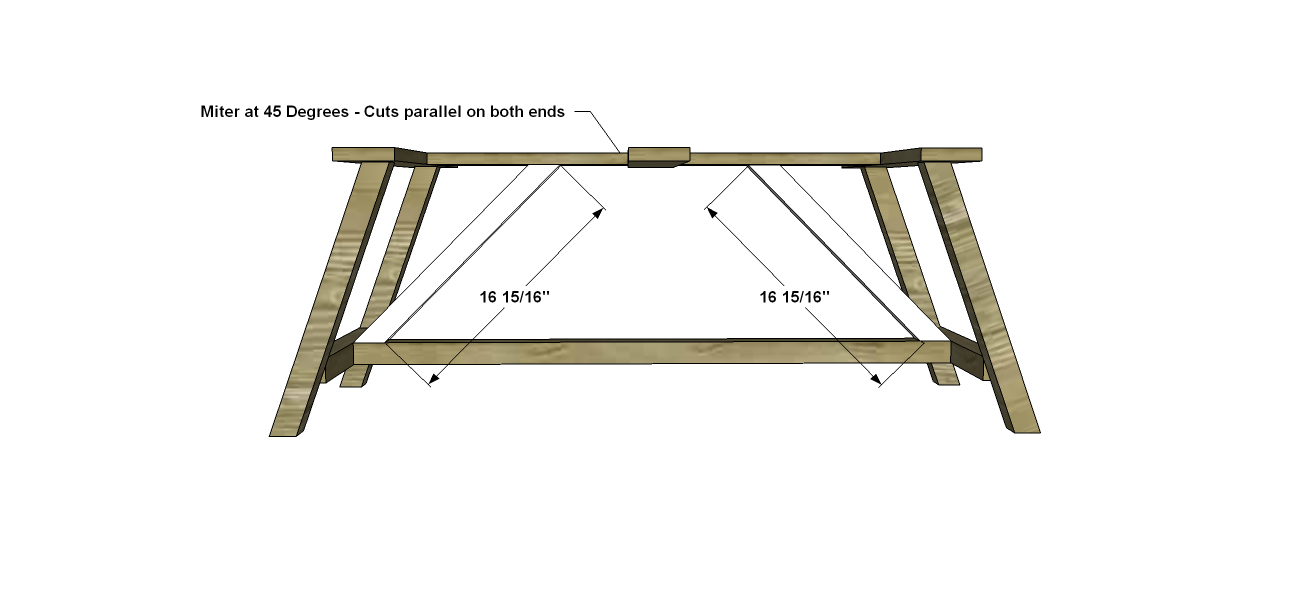

Cut and Fasten your Trusses in Place. Cut these at a 45 Degree Angle. Secure in place using your countersink drill bit and 1 1/2" wood screws and glue from underneath up through the center rail and from above and down through the frame.

Step 6
Attaching the Top for the Free DIY Furniture Plans to Build a Crosby Indoor Outdoor Coffee Table

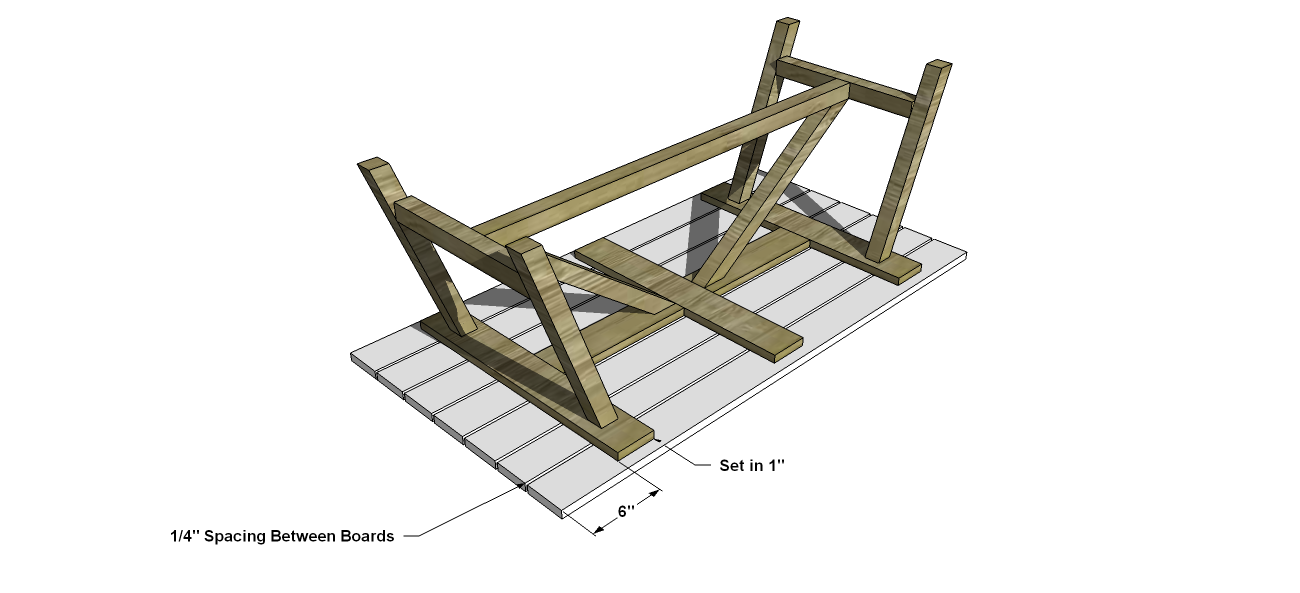

Fasten your Frame to your Top Boards. Your Top Boards should be spaced 1/4" apart and the frame should sit 6" in on either side and 1" back on the front and back. Secure in place from underneath using your 1 1/4" Brad Nails and Glue. You can also use screws if you prefer or if you will need to remove the top in the future for any reason.

Finishing Instructions

Fill any Screw, Nail or Pocket Holes, Sand and Finish as Desired. For Finishing Tips and Tricks visit my Finishing School
