Free DIY Furniture Plans //  How to Build a Modern Adirondack Ottoman

I figure after posting the plans for the Modern Adirondack Chair last week, you might indeed like to have plans for the matching ottoman! And so... I give you precisely such a thing! Yahoo... Xx... Rayan

Estimated Cost
$25-$50
Dimensions
Dimensions for Free DIY Furniture Plans //  How to Build a Modern Adirondack Ottoman
Tools
Lumber
  • 3 – 1x4 at 8’
Materials
Cut List
  • 2 – 1x4 at 17-1/4” – Side Aprons
  • 2 – 1x4 at 22-1/4”– Front and Back Aprons
  • 2 – 1x4 at 14-1/2” – Back Legs
  • 5 – 1x4 at 23-3/4” – Top Slats
  • 2 – 1x4 at 13-1/4” – Front Legs
Instructions

Before beginning to build, always check in on my site to make sure you have the most up to date set of plans, I occasionally update and change the plans to make the building process easier or to allow for less expensive purchasing of materials! Read through the entire set of instructions and all comments before beginning this project. If you print out or save plans, be sure to check in on my site to be sure you have the most up to date set of plans, as I occasionally update things for ease of building or buying. If you are new to building, read through the GETTING STARTED section and other articles found under the BUILD tab in the menu on my site, it has valuable information about how to get started, tools and techniques. If you are unfamiliar with the finishing process, visit my Finishing school for some tips and tricks for painting like a pro and for special finishing practices. Use glue to secure your joints and Consider Painting or Staining individual sections prior to assembling. This makes the paint application virtually flawless. Coat with a spray on Poly or Wipe on Poly to protect your finish and your piece and it will last for ages. Adhere to all safety standards and guidelines, and be sure you follow safety protocol throughout your build. If you are unsure about whether you are building safely, run a quick online search for the tool or technique you are using, or contact me via email or post to the forum before you move ahead. My contact info can be found in the menu of my site.

Step 1

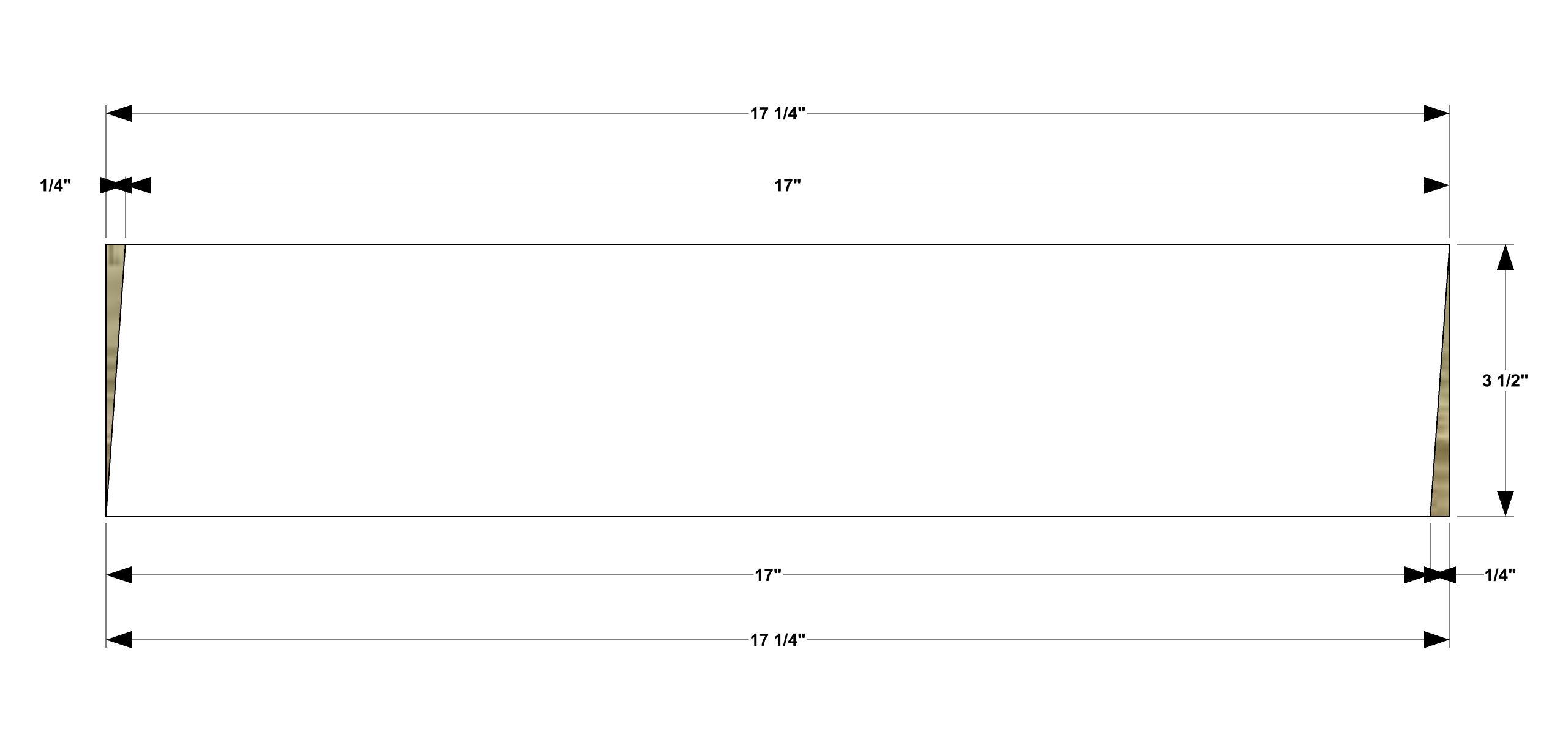

Dimensions for the Sides for Free DIY Furniture Plans //  How to Build a Modern Adirondack Ottoman

Cut out your Side Aprons. You will need 2 of these exactly the same. This diagram shows you how to mark out the shape you need for the Side Aprons. Use your circular saw to cut this out. If you simply connect the dots between the dimensions outlined below and use a circular saw to make these cuts, you won't have to worry about the actual angle for each corner

Step 2

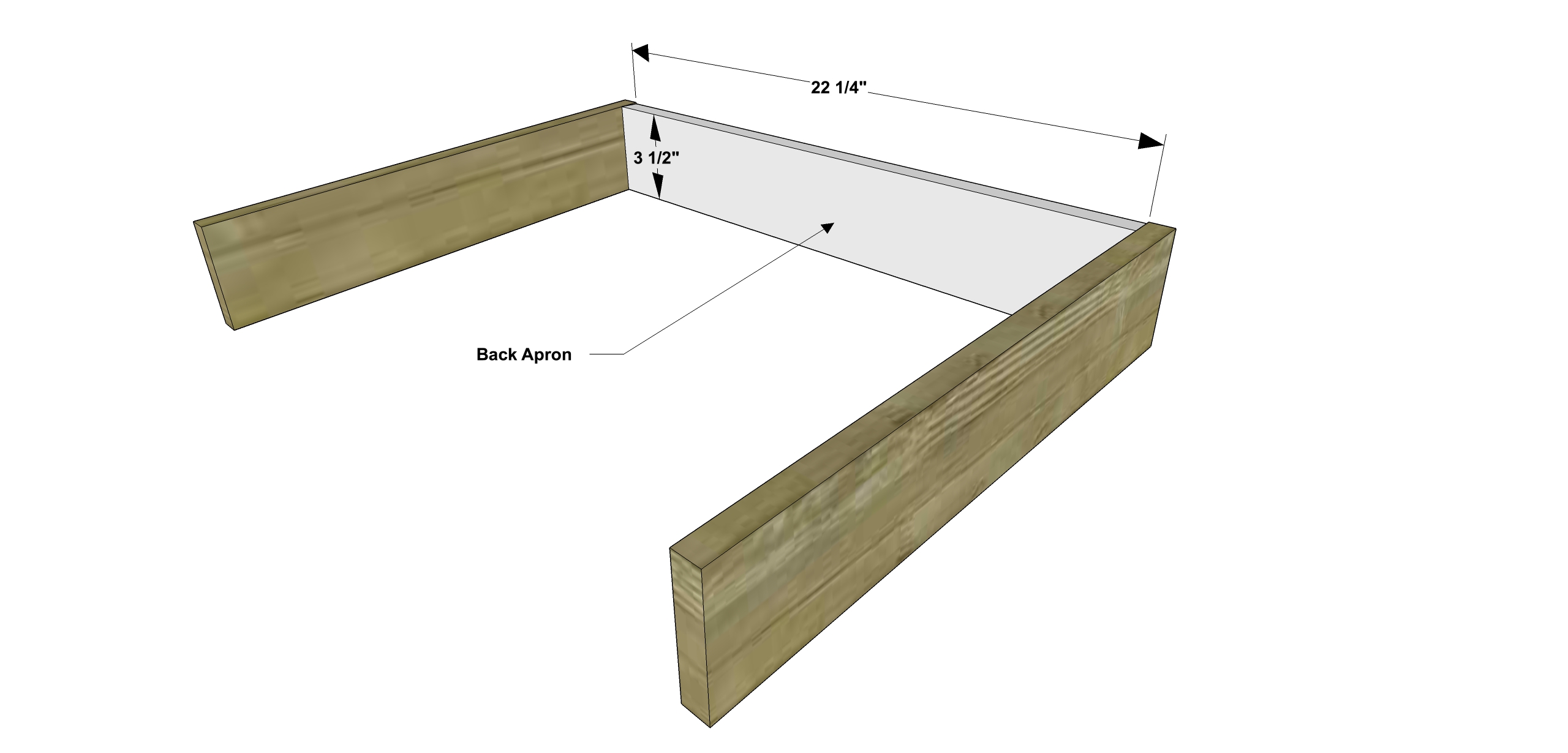

Back Apron for Free DIY Furniture Plans //  How to Build a Modern Adirondack Ottoman

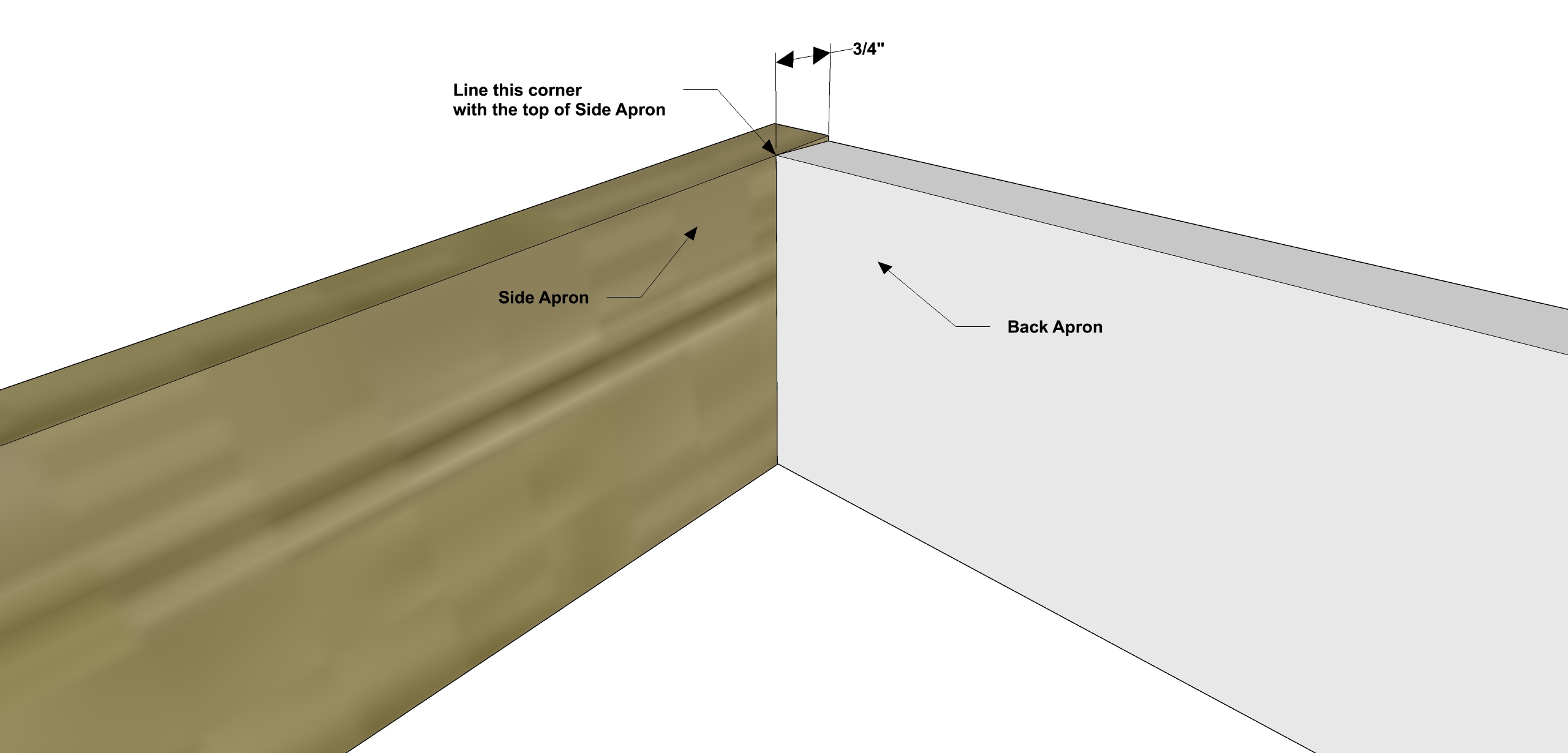

Back Apron Detail for Free DIY Furniture Plans //  How to Build a Modern Adirondack Ottoman

Cut out the Back Apron and attach as shown to the Side Aprons with glue and pocket screws. When you attach the Back Apron, align the corners noted with the top of the Side Aprons. This alignment is a little trick so that you don’t have to rip your lumber at funky angles! It will hardly be noticeable.

Step 3

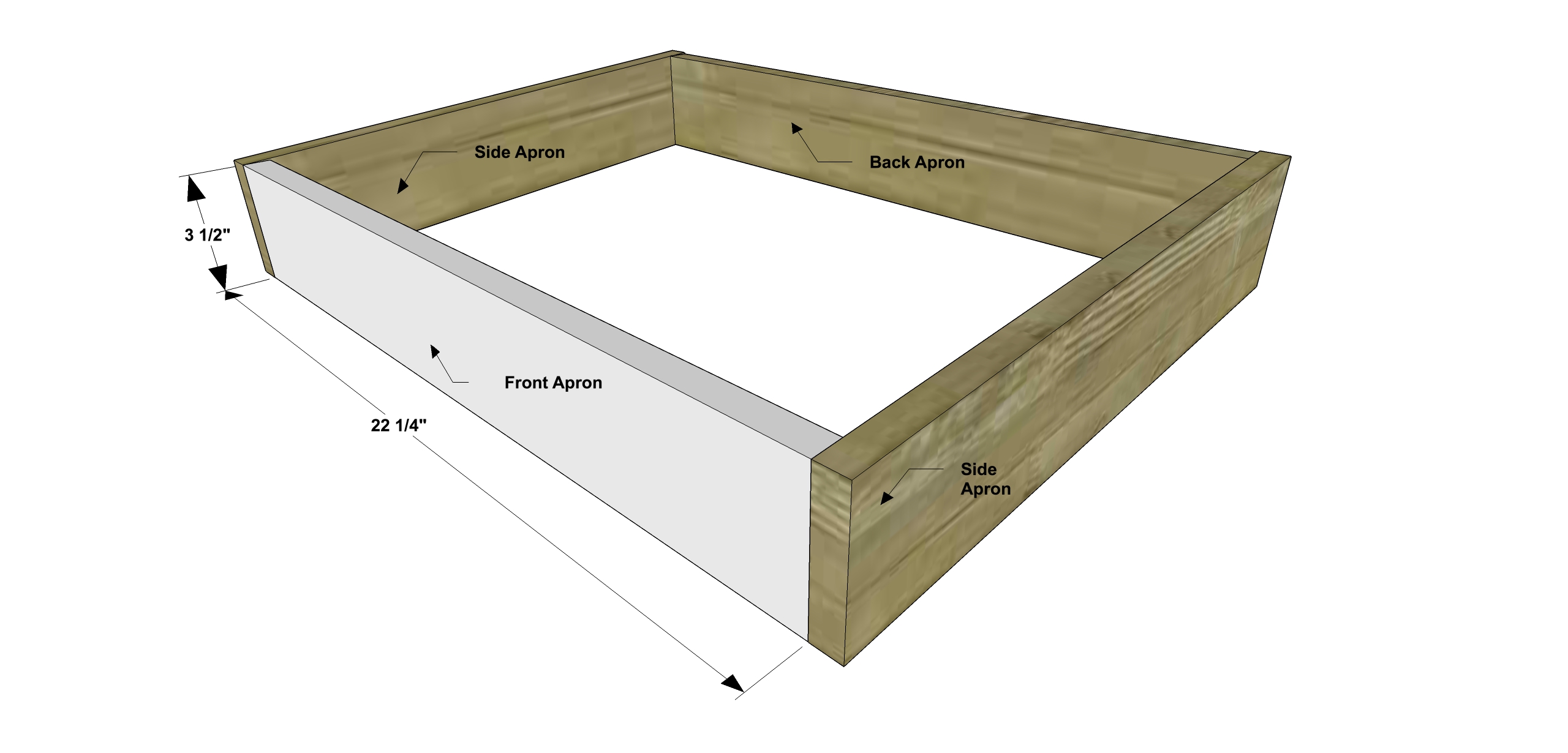

Front Apron for Free DIY Furniture Plans //  How to Build a Modern Adirondack Ottoman

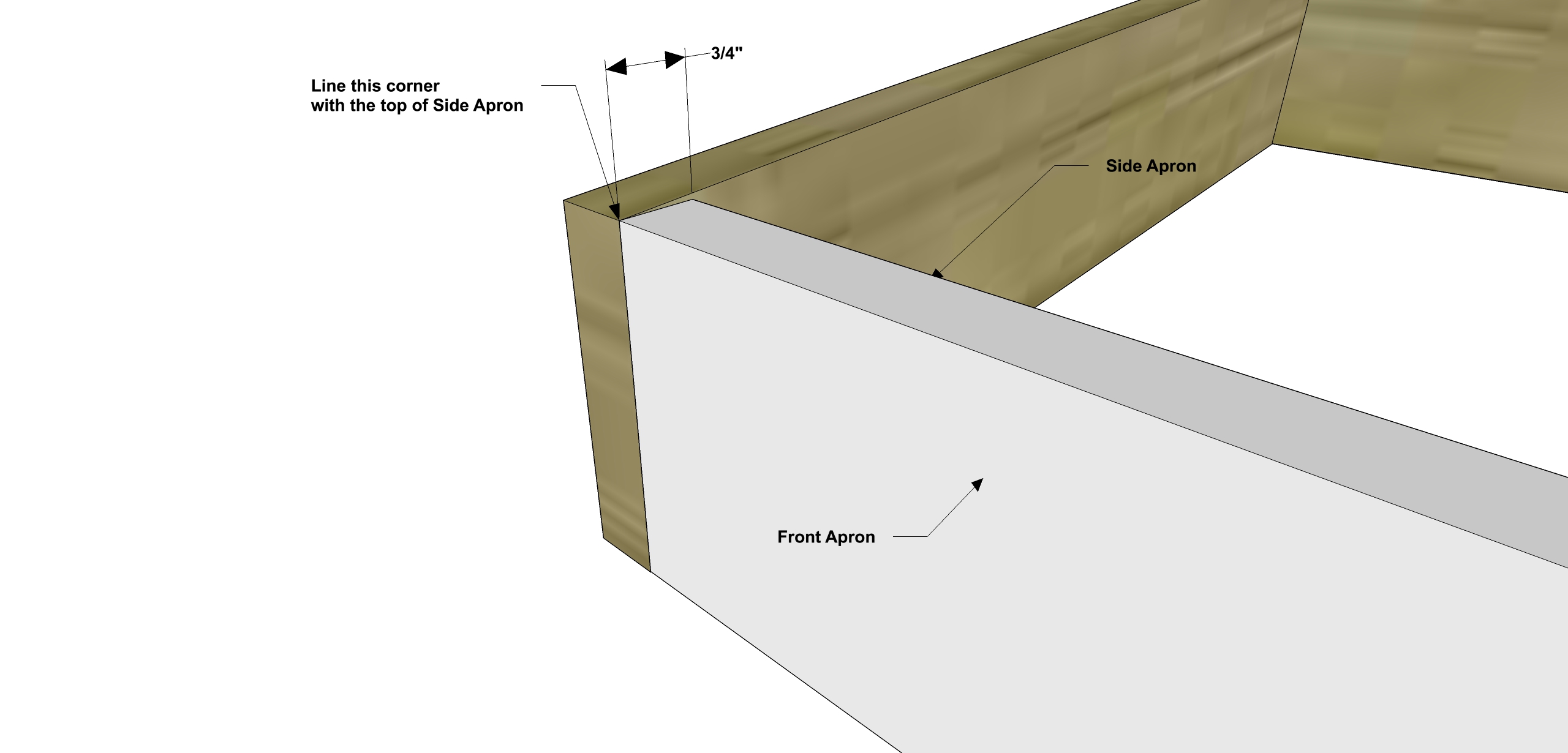

Front Apron Detail for Free DIY Furniture Plans //  How to Build a Modern Adirondack Ottoman

Cut out the Front Apron and attach as shown to the Side Aprons with glue and pocket screws. On both ends of the Front Apron, align the corners noted with the top of the Side Aprons.

Step 4
Back Legs for Free DIY Furniture Plans //  How to Build a Modern Adirondack Ottoman

Cut and attach the Back Legs as shown using glue and countersunk 1-1/4” screws or brad nails. Align the top of the Back Legs with the corners noted of the Side Aprons.

Step 5

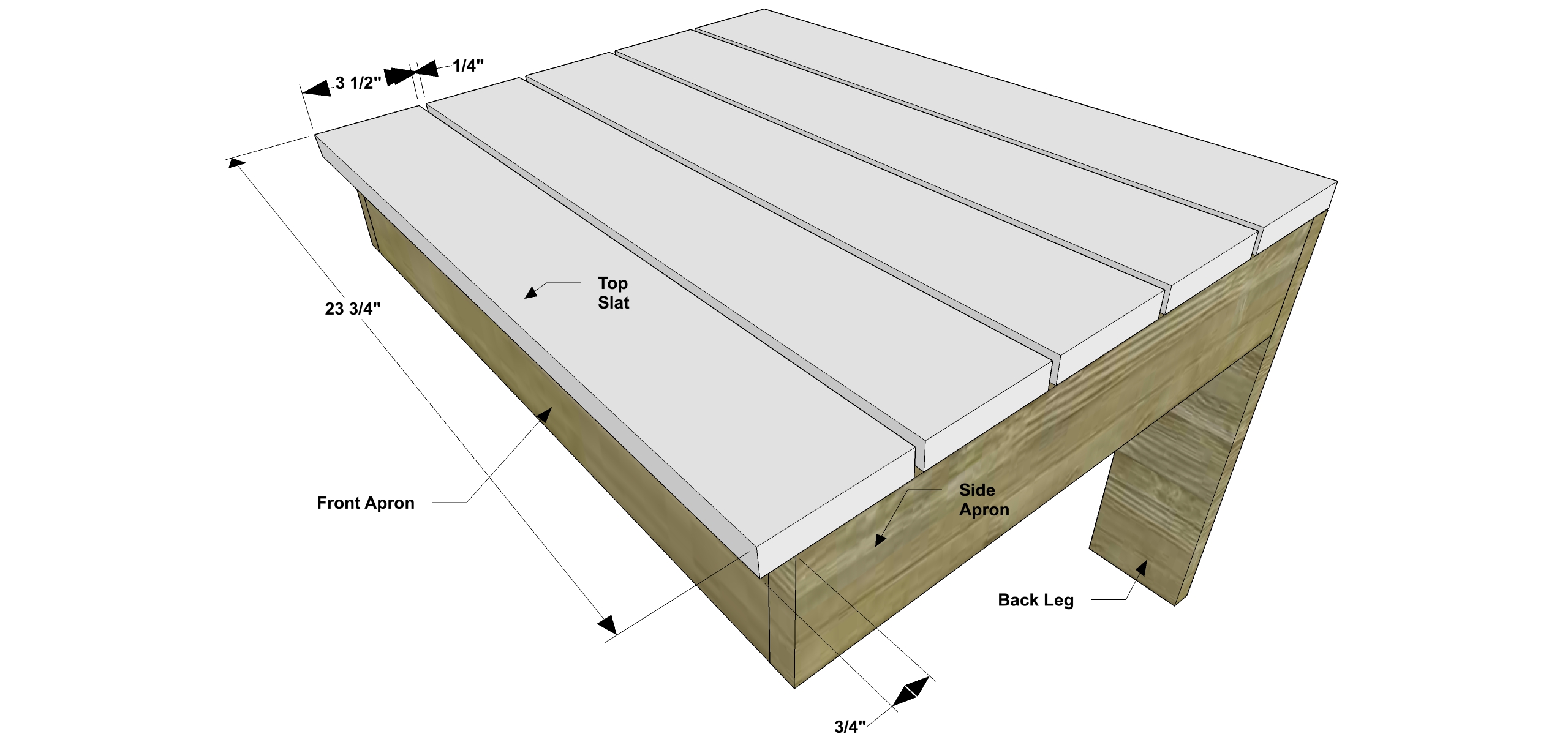

Top Slat for Free DIY Furniture Plans //  How to Build a Modern Adirondack Ottoman

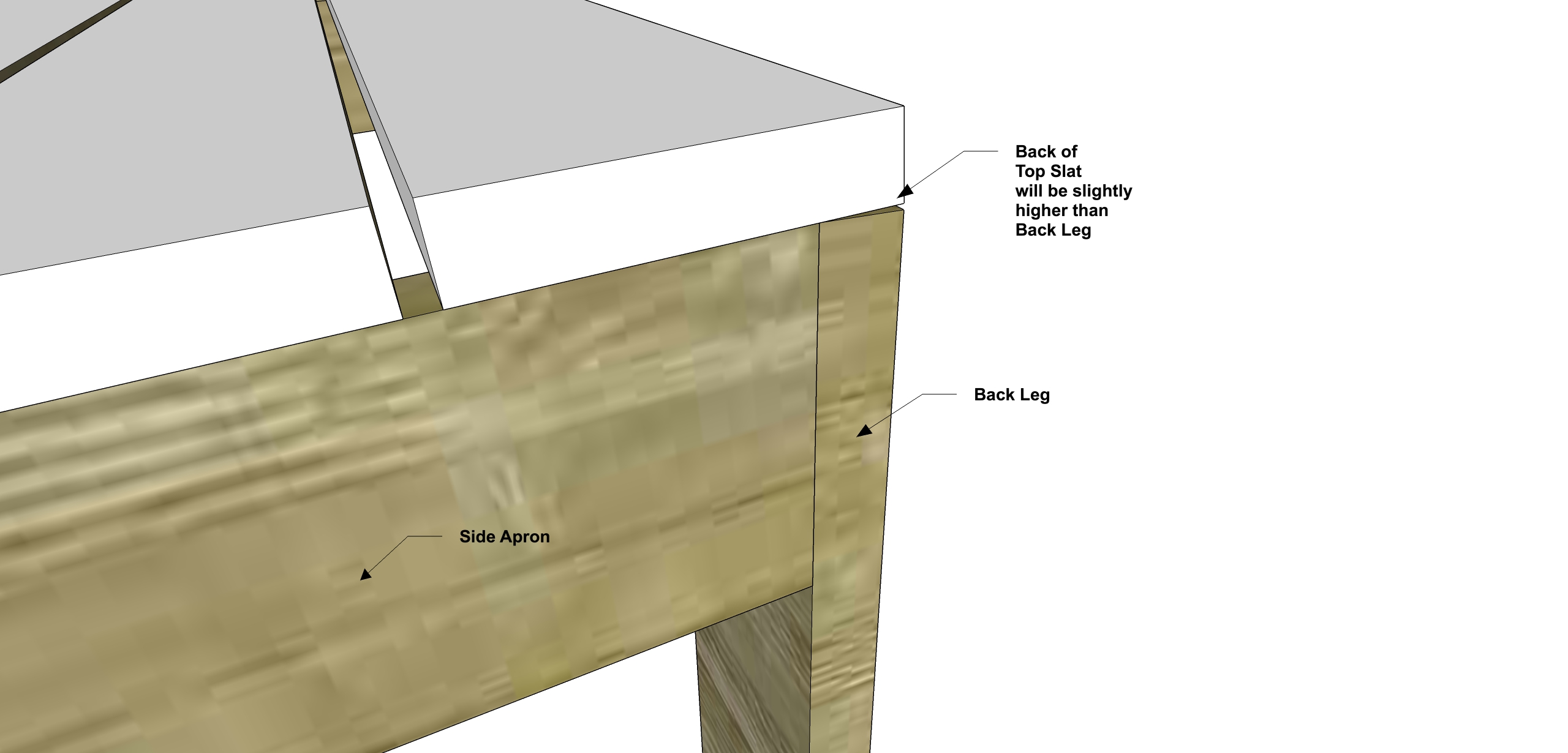

Top Slat Detail for Free DIY Furniture Plans //  How to Build a Modern Adirondack Ottoman

Cut and attach the Top Slats to the tops of the Front, Back and Side Aprons with glue and countersunk 1-1/4” screws or brad nails. The slats should be spaced 1/4” from each other, with approximately a 3/4” overhang past the Front Apron to later attach the Front Legs. Please note that the Top Slat toward the back of the ottoman will float slightly above the Back Legs.

Step 6

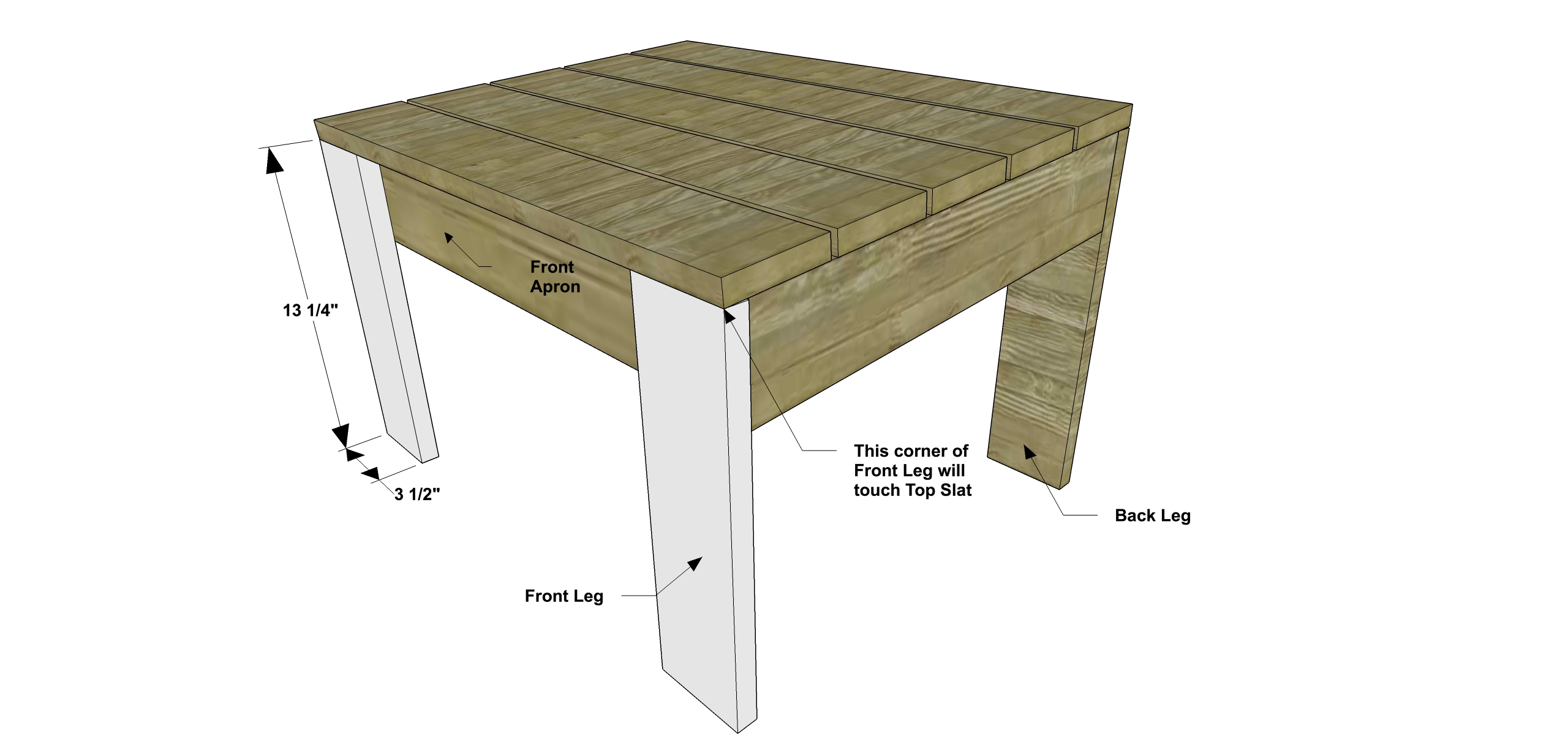

Front Legs for Free DIY Furniture Plans //  How to Build a Modern Adirondack Ottoman

Cut and attach the Front Legs as shown with glue and countersunk 1-1/4” screws or brad nails. Align the tops of the Front Legs with the noted areas of the Top Slat.

Finishing Instructions

Fill any Screw, Nail or Pocket Holes, Sand and Finish as Desired. For Finishing Tips and Tricks visit my Finishing School
