The Design Confidential Free DIY Furniture Plans // How to Build a Full Sized Cabin Bed

Equal parts fun and function, this gorgeous bed will make bed time a bit more exciting for the kiddos! A fabulous Handmade Holiday gift that will keep on giving for years after you build this! Plans for this bed in twin can be found here.

Finished Project for The Design Confidential Free DIY Furniture Plans // How to Build a Full Sized Cabin Bed
Estimated Cost
$300-$400
Dimensions
Dimensions for The Design Confidential Free DIY Furniture Plans // How to Build a Full Sized Cabin Bed
Tools
Lumber
  • 22 – 1/2x4 at 8' (rip down 1/2” plywood if lumber is unavailable)
  • 8 – 1x2 at 8'
  • 3 – 1x4 at 8'
  • 2 – 1x8 at 8'
  • 16 – 2x4 at 8'
  • 3 – 1/2” plywood at 4’x8’
  • 2 – 3/4” plywood at 4’x8’
Materials
Cut List
  • // Refer to specific steps in this plan before cutting pieces - some pieces are cut with angled ends and their exact measurements may differ from the measurements listed below. Measurements listed below are PRE-BEVEL dimensions and the actual end measurements will change once cut according to specific steps.

  • 4 – 2x4 at 61-3/16” – Post A
  • 4 – 2x4 at 59-1/8” – Post B
  • 3 – 2x4 at 51-1/4” – Side Top Rail, Side Middle Rail, and Side Bottom Rail
  • 3 – 2x4 at 74” – Back Top Rail, Back Middle Rail, and Back Bottom Rail
  • 2 – 2x4 at 74” – Front Top Rail and Front Bottom Rail
  • 4 – 2x4 at 31-3/16” – Roof Rafters
  • 6 – 2x4 at 58-1/4” – Floor Joists
  • 1 – 3/4” plywood at 48” x 78” – Floor, Left Side
  • 1 – 3/4” plywood at 10-1/4” x 78” – Floor, Right Side
  • 1 – 1/2” plywood at 14-1/4” x 78” – Back Wall
  • 2 – 1/2” plywood at 28-1/2” x 40” – Front Wall
  • 2 – 1/2” plywood at 14-1/4” x 57-1/4” –Side Bottom Walls
  • 2 – 1/2” plywood at 18-1/4” x 54-3/16” –Side Top Walls
  • 6 – 1x2 at 7-1/8” – Front Top Trim
  • 6 – 1x2 at 13” – Front Bottom Trim
  • 2 – 1x2 at 38-1/8” – Door Trim
  • 4 – 1x2 at 16-1/2 – Top and Bottom Window Trim
  • 4 – 1x2 at 15” – Side Window Trim
  • 1 – 1x4 at 21” – Stair Hanger
  • 2 – 1x4 at 51-1/4” – Side Ledges
  • 14 – 1x2 at 10-3/4” – Side Bottom Trim
  • 2 – 1x2 at 14-13/16” – Side Top Trim
  • 4 – 1x2 at 10-15/16” – Side Top Trim
  • 4 – 1x2 at 6-9/16” – Side Top Trim
  • 1 – 1x4 at 74” – Back Ledge
  • 9 – 1x2 at 10-3/4” – Back Trim
  • 1 – 1x4 at 83-1/2” – Roof Ridge
  • 6 – 1/2x4 at 83-1/2” – Purlins
  • 42 – 1/2x4 at 37-1/4” – Roof Slats
  • 2 – 1x8 at 31-15/16” – Stair Sides
  • 2 – 1x8 at 18-3/4” – Steps
Instructions

Before beginning to build, always check in on my site to make sure you have the most up to date set of plans, I occasionally update and change the plans to make the building process easier or to allow for less expensive purchasing of materials! Read through the entire set of instructions and all comments before beginning this project. If you print out or save plans, be sure to check in on my site to be sure you have the most up to date set of plans, as I occasionally update things for ease of building or buying. If you are new to building, read through the GETTING STARTED section and other articles found under the BUILD tab in the menu on my site, it has valuable information about how to get started, tools and techniques. If you are unfamiliar with the finishing process, visit my Finishing school for some tips and tricks for painting like a pro and for special finishing practices. Use glue to secure your joints and Consider Painting or Staining individual sections prior to assembling. This makes the paint application virtually flawless. Coat with a spray on Poly or Wipe on Poly to protect your finish and your piece and it will last for ages. Adhere to all safety standards and guidelines, and be sure you follow safety protocol throughout your build. If you are unsure about whether you are building safely, run a quick online search for the tool or technique you are using, or contact me via email or post to the forum before you move ahead. My contact info can be found in the menu of my site.

/ Click on Images to expand. If a plan has images that are too hard to read, please let me know and I will reupload the images for easier reference.

Step 1
You Can Build This! The Design Confidential Free DIY Furniture Plans // How to Build a Full Sized Cabin Bed
You Can Build This! The Design Confidential Free DIY Furniture Plans // How to Build a Full Sized Cabin Bed

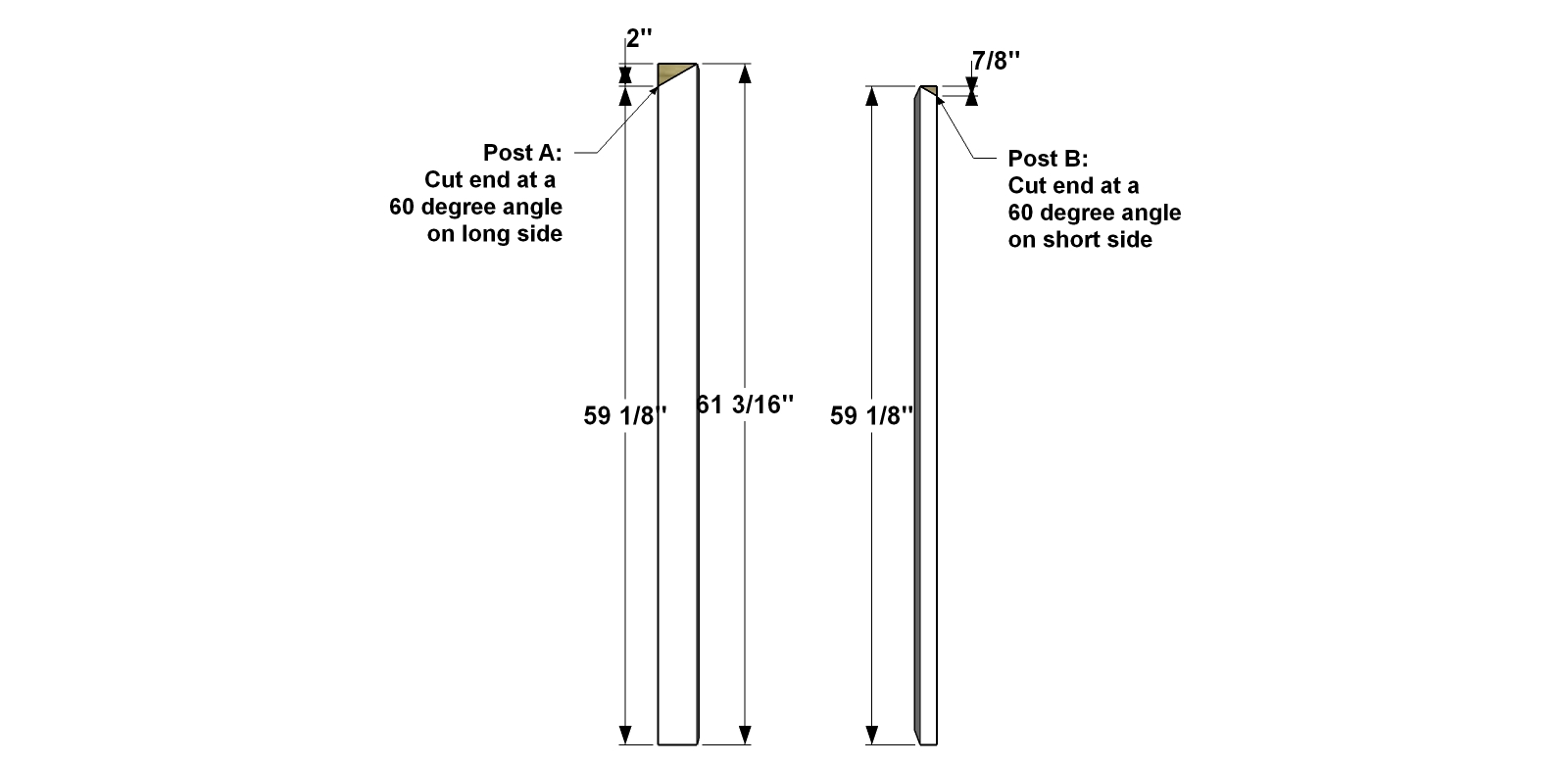

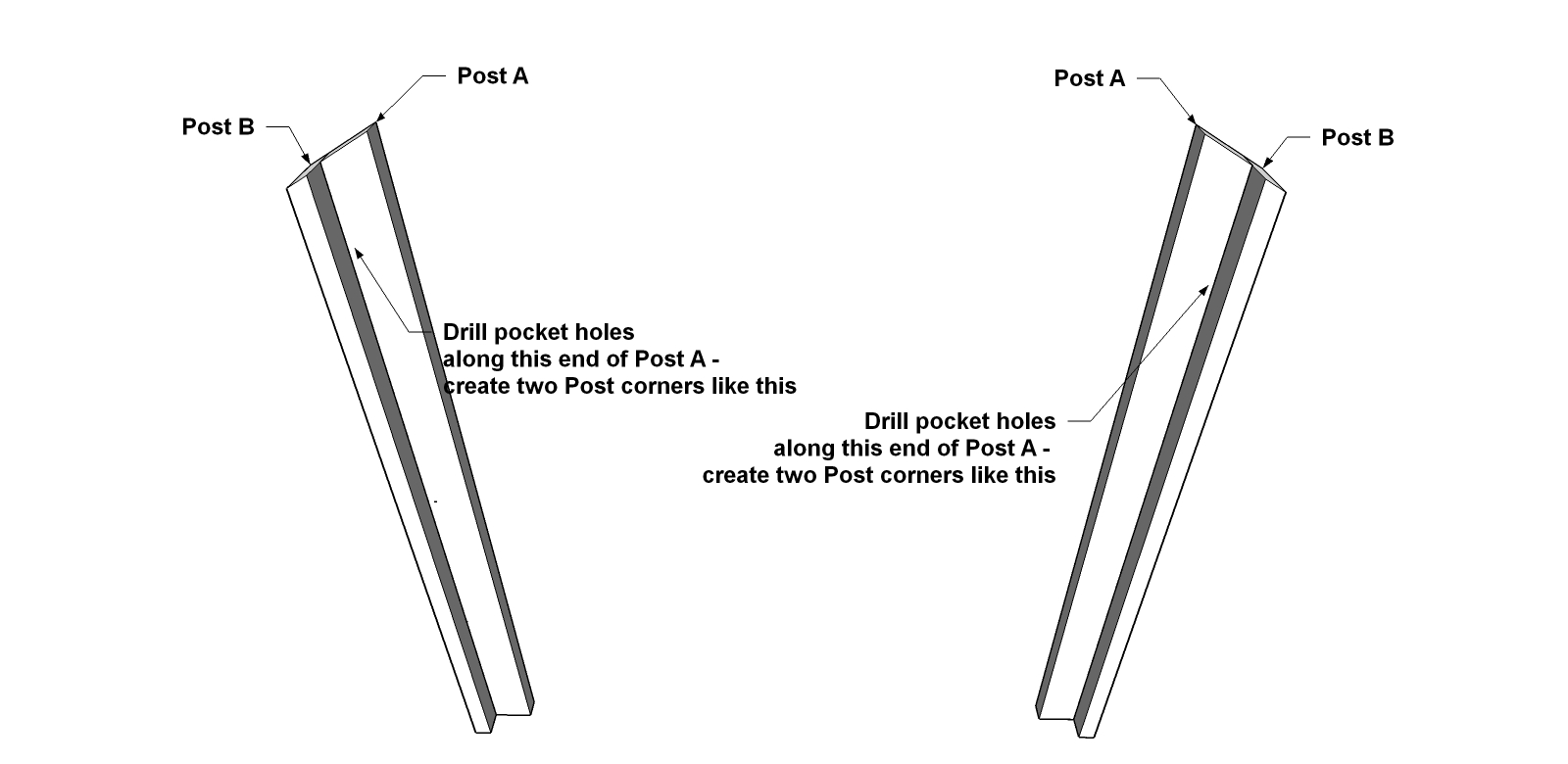

Cut the pieces for Posts A and Posts B as shown.

Set the Kreg jig for 1-1/2” material. Drill pocket holes in the long side of Post A as shown. Assemble Post A to Post B as shown with glue and 2-1/2” pocket screws. Repeat this process again, but in a “mirrored” assembly as shown in the image. Built a total of two sets of these “mirrored” Post pairs.

Step 2
You Can Build This! The Design Confidential Free DIY Furniture Plans // How to Build a Full Sized Cabin Bed

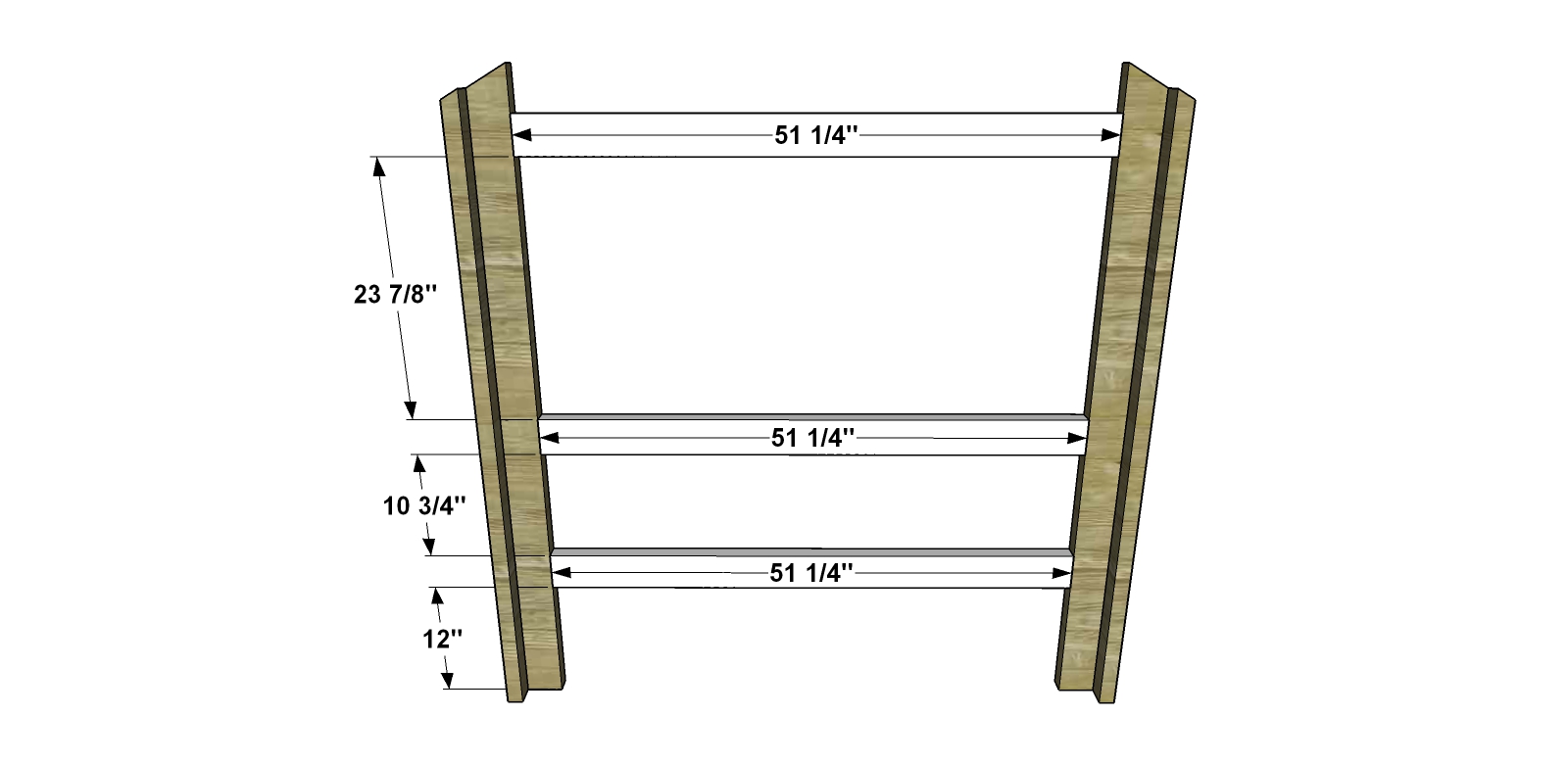

Cut the pieces for the Side Top Rail, Side Middle Rail, and Side Bottom Rail. Drill pocket holes in the ends of all pieces. Assemble pieces as shown with glue and 2-1/2” pocket screws.

Step 3
You Can Build This! The Design Confidential Free DIY Furniture Plans // How to Build a Full Sized Cabin Bed

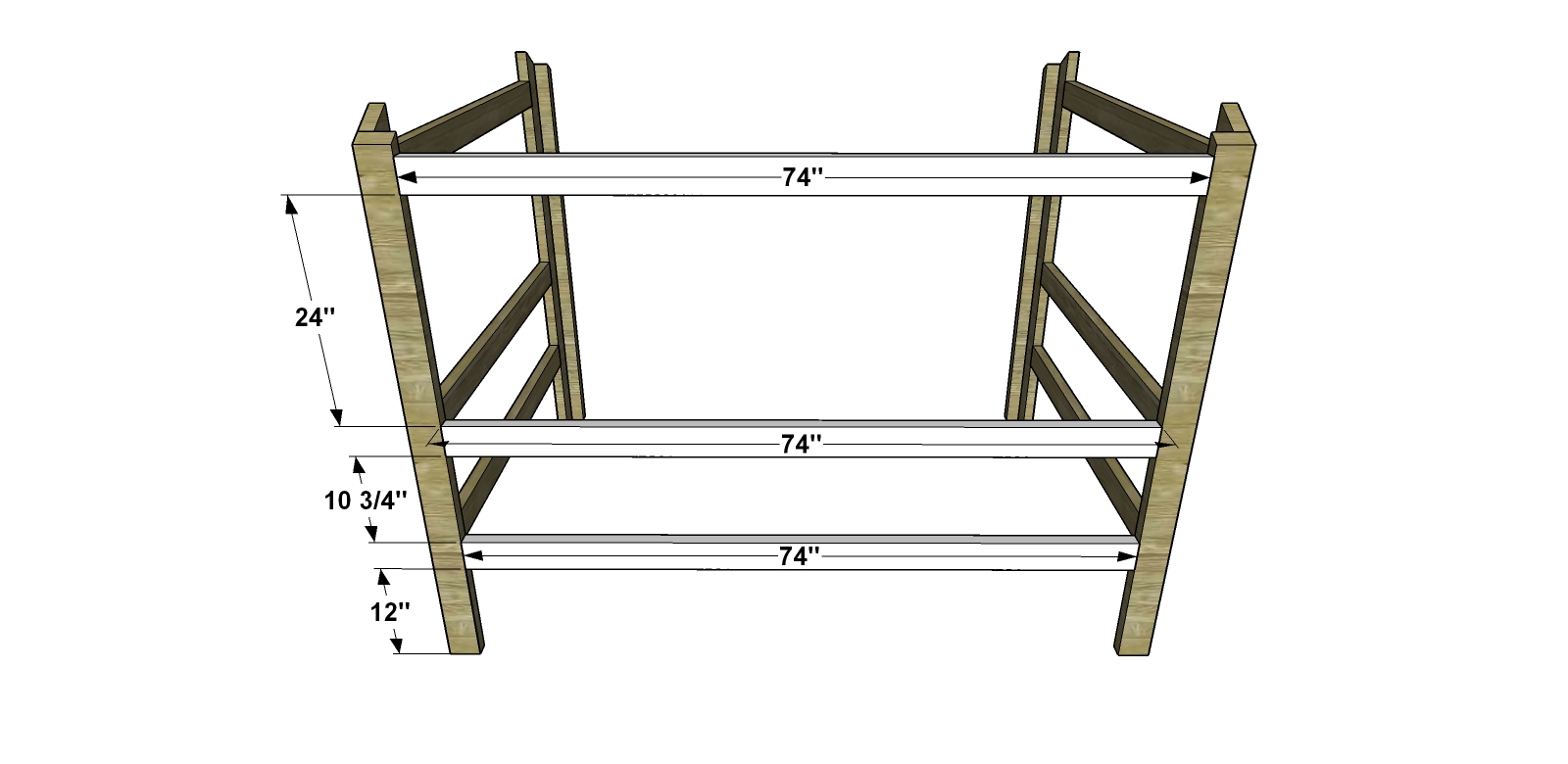

Cut the pieces for the Back Top Rail, Back Middle Rail, and Back Bottom Rail. Drill pocket holes in the ends of all pieces. Assemble as shown with glue and 2-1/2” pocket screws.

Step 4
You Can Build This! The Design Confidential Free DIY Furniture Plans // How to Build a Full Sized Cabin Bed

Cut the pieces for the Front Top Rail and Front Bottom Rail. Drill pocket holes in the ends of both pieces. Assemble as shown with glue and 2-1/2” pocket screws.

Step 5
You Can Build This! The Design Confidential Free DIY Furniture Plans // How to Build a Full Sized Cabin Bed
You Can Build This! The Design Confidential Free DIY Furniture Plans // How to Build a Full Sized Cabin Bed

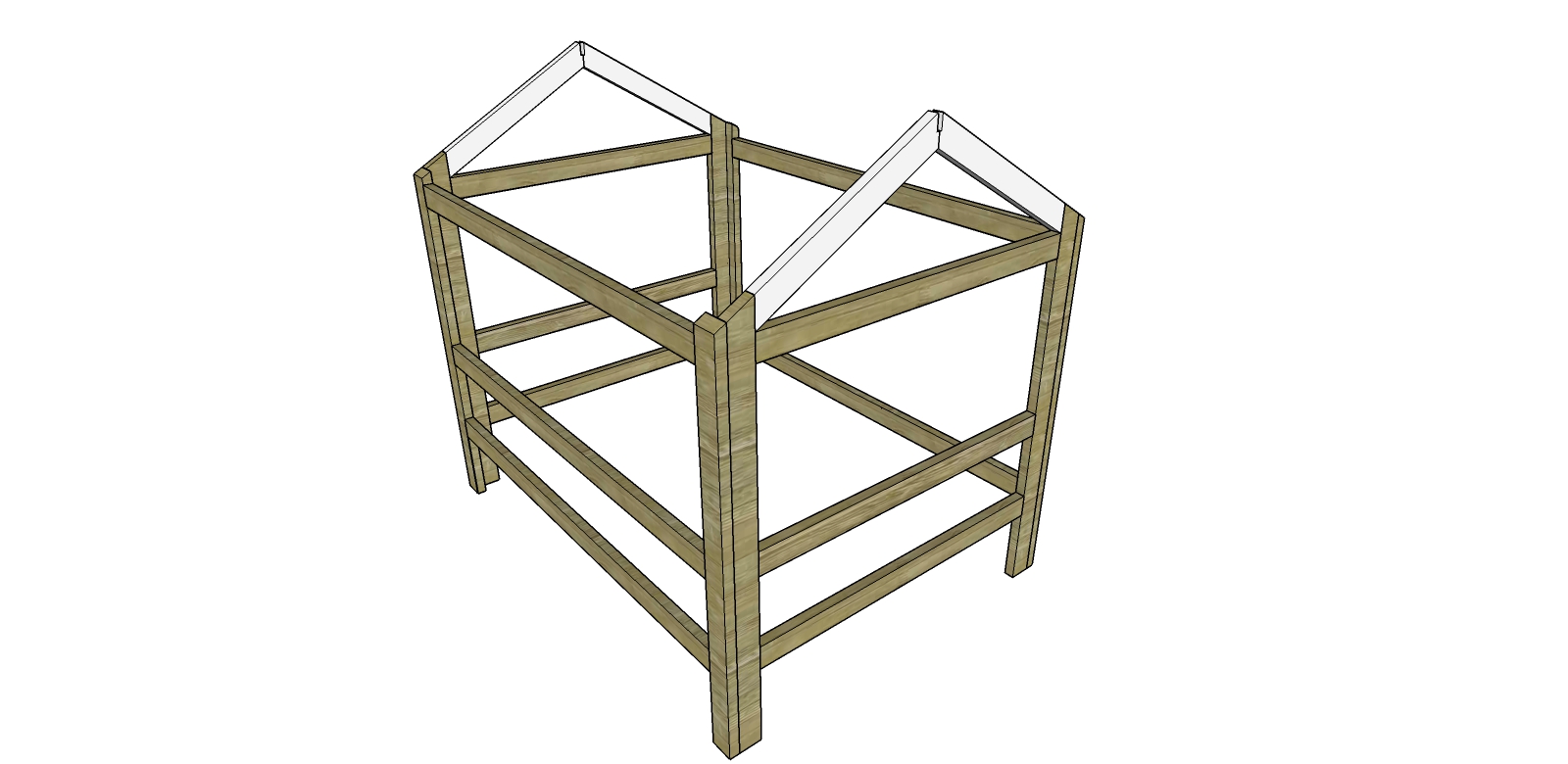

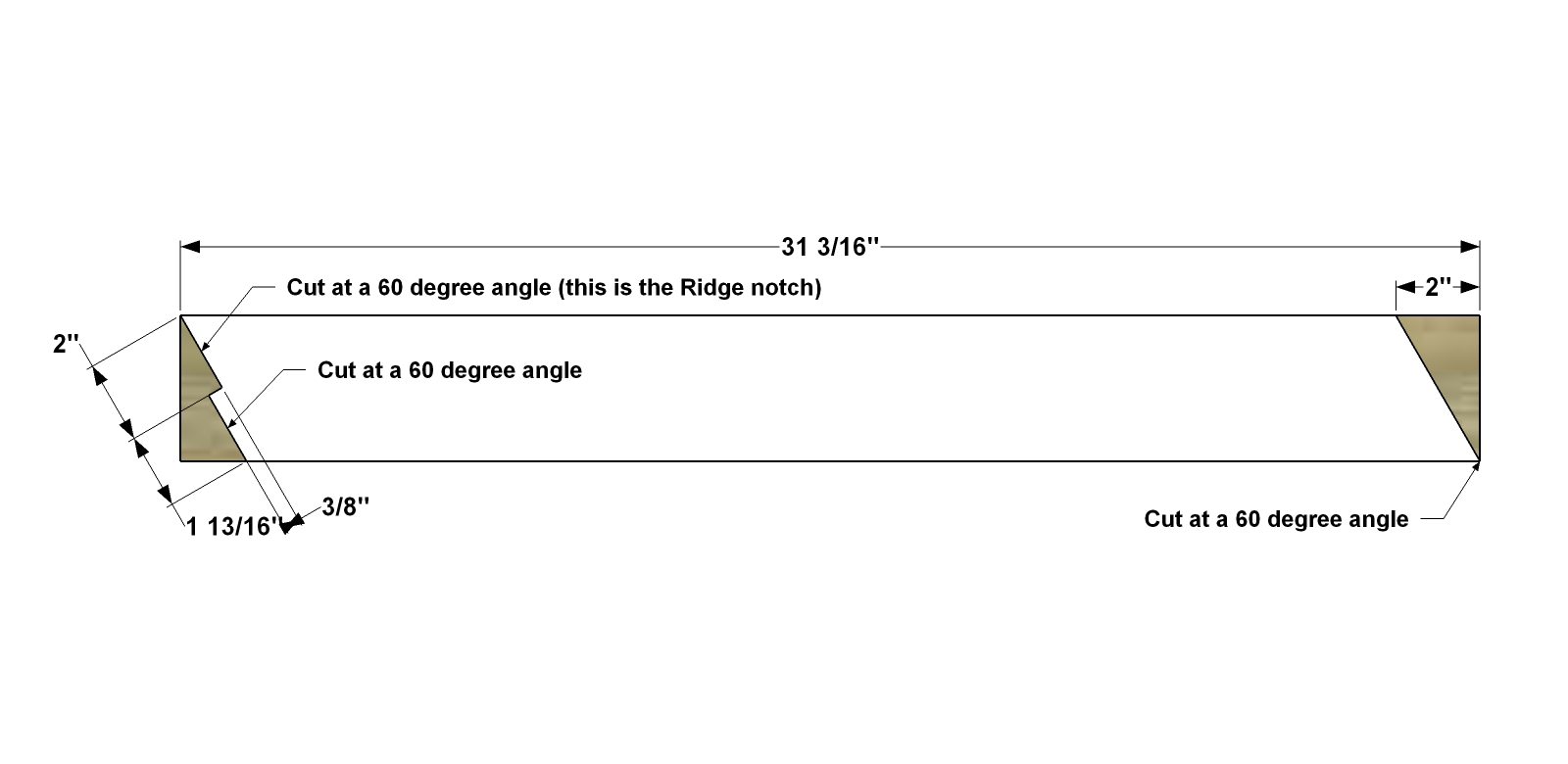

Cut the pieces for the Rafters. Drill pocket holes in the ends of the pieces (avoid drilling pocket screws in the Ridge notch area). Assemble as shown with glue and 2-1/2” pocket screws.

Step 6
You Can Build This! The Design Confidential Free DIY Furniture Plans // How to Build a Full Sized Cabin Bed

Cut the pieces for the Floor Joists. Drill pocket holes in each end of the pieces. Assemble as shown with glue and 2-1/2” pocket screws.

Step 7
You Can Build This! The Design Confidential Free DIY Furniture Plans // How to Build a Full Sized Cabin Bed

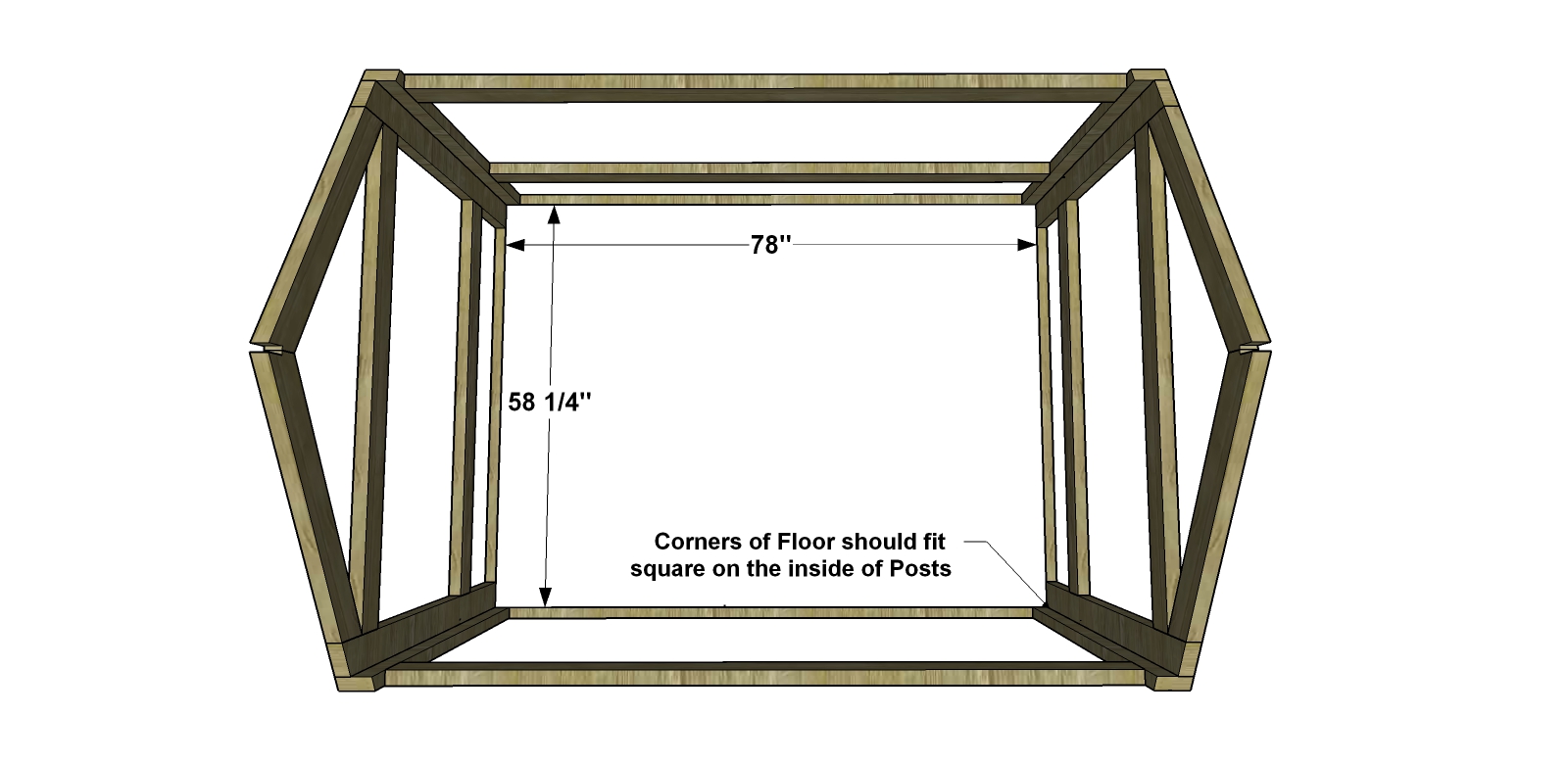

Cut the piece for the floor. Assemble as shown with glue and 1-1/4” brad nails.

Step 8
You Can Build This! The Design Confidential Free DIY Furniture Plans // How to Build a Full Sized Cabin Bed

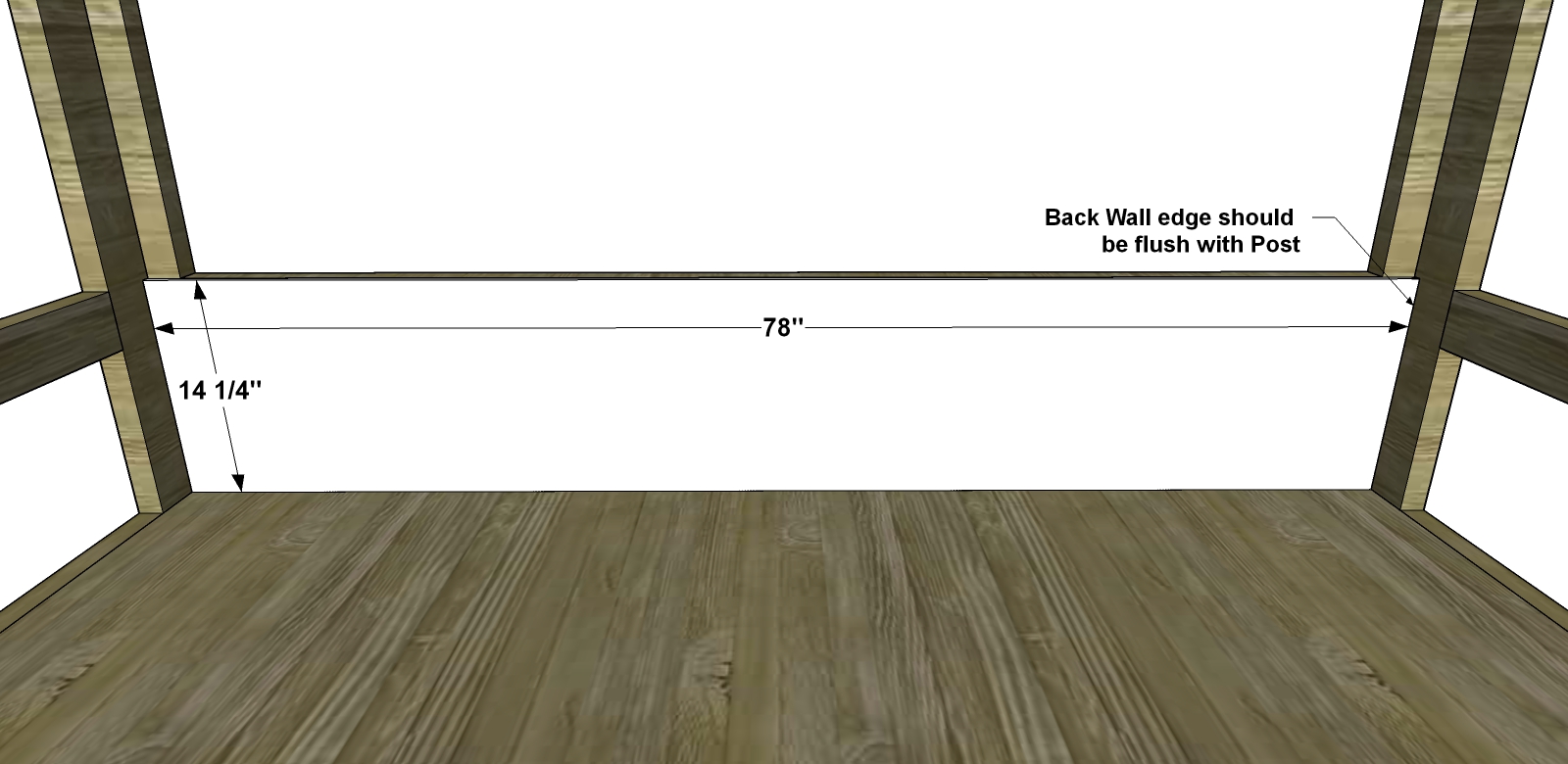

Cut the piece for the Back Wall. Assemble as shown with glue and 1-1/4” brad nails. Set the Kreg jig for 3/4” material and drill pocket holes on the bottom of the Back Wall piece. Assemble as shown with glue  - use 1-1/4” brad nails to secure the top and sides and 1-1/4” pocket screws to secure the bottom sides.

Step 9
You Can Build This! The Design Confidential Free DIY Furniture Plans // How to Build a Full Sized Cabin Bed

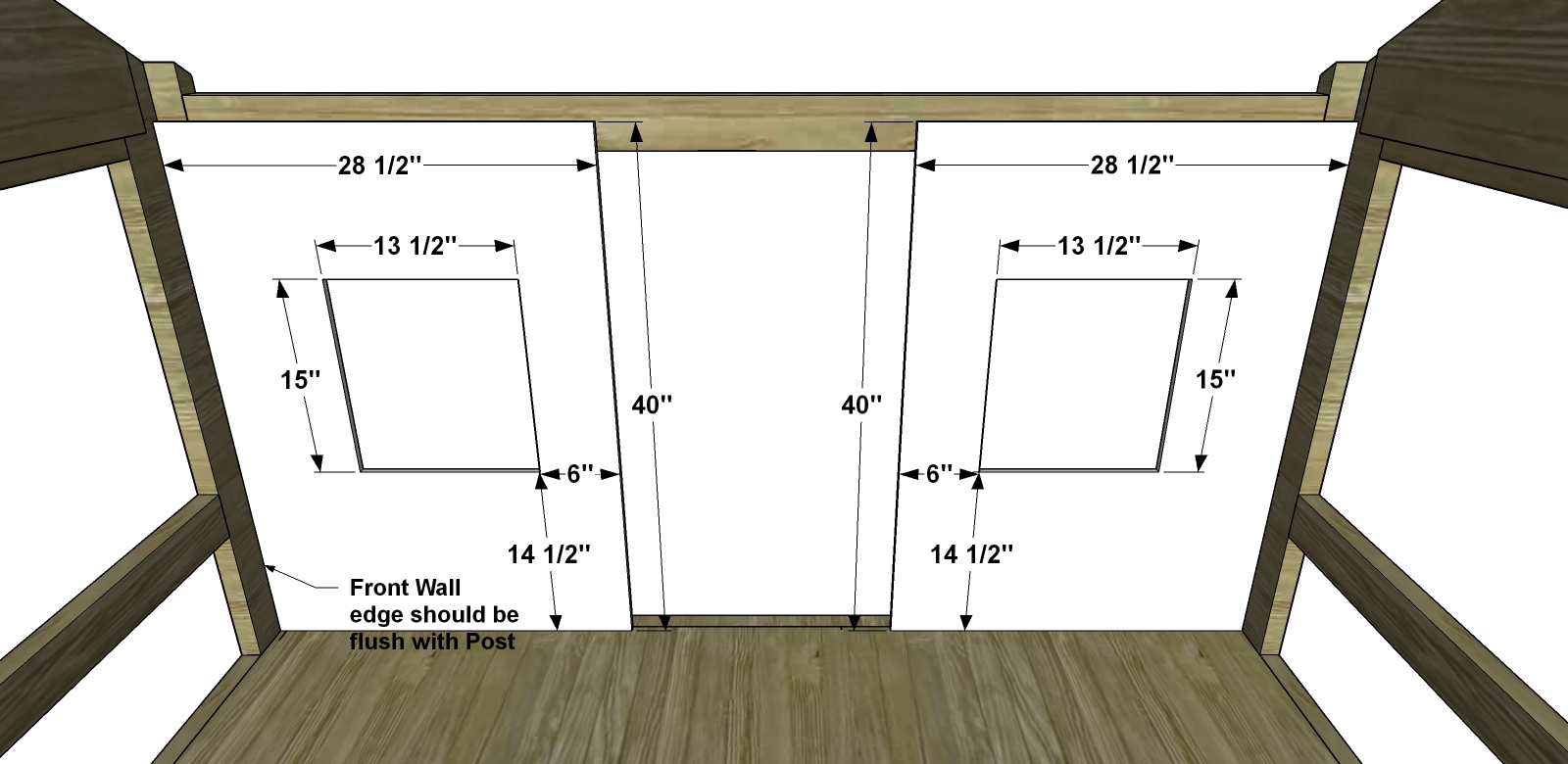

Cut the pieces for the Front Wall. Drill pocket holes on the bottoms of the Front Wall pieces. Assemble as shown with glue  - use 1-1/4” brad nails to secure the top and sides and 1-1/4” pocket screws to secure the bottom sides.

Step 10
You Can Build This! The Design Confidential Free DIY Furniture Plans // How to Build a Full Sized Cabin Bed

Cut the pieces for the Side Bottom Walls. Assemble as shown with glue and 1-1/4” brad nails. Drill pocket holes on the bottoms of the Side Wall pieces. Assemble as shown with glue  - use 1-1/4” brad nails to secure the top and sides and 1-1/4” pocket screws to secure the bottom sides.

Step 11
You Can Build This! The Design Confidential Free DIY Furniture Plans // How to Build a Full Sized Cabin Bed
You Can Build This! The Design Confidential Free DIY Furniture Plans // How to Build a Full Sized Cabin Bed

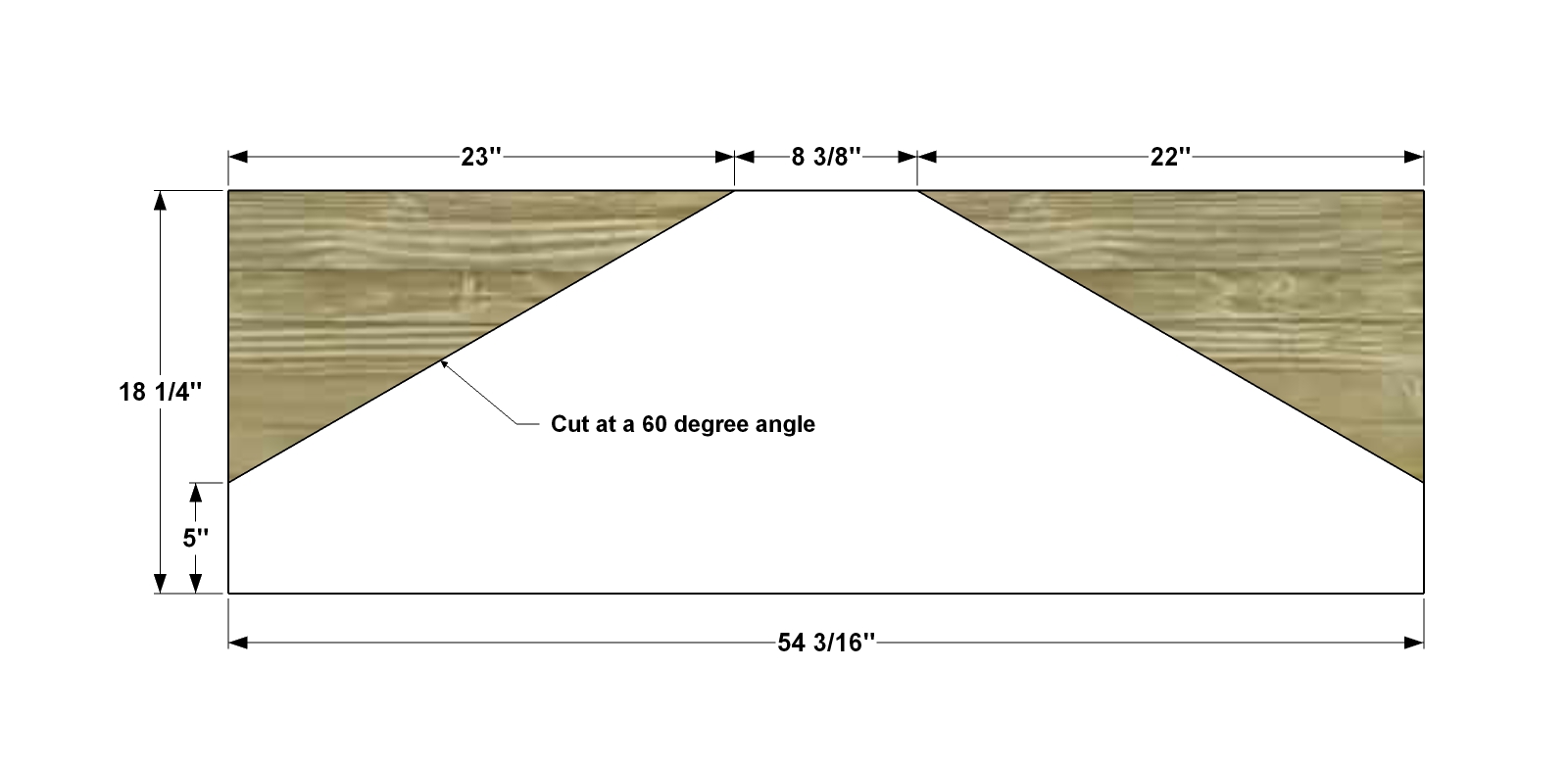

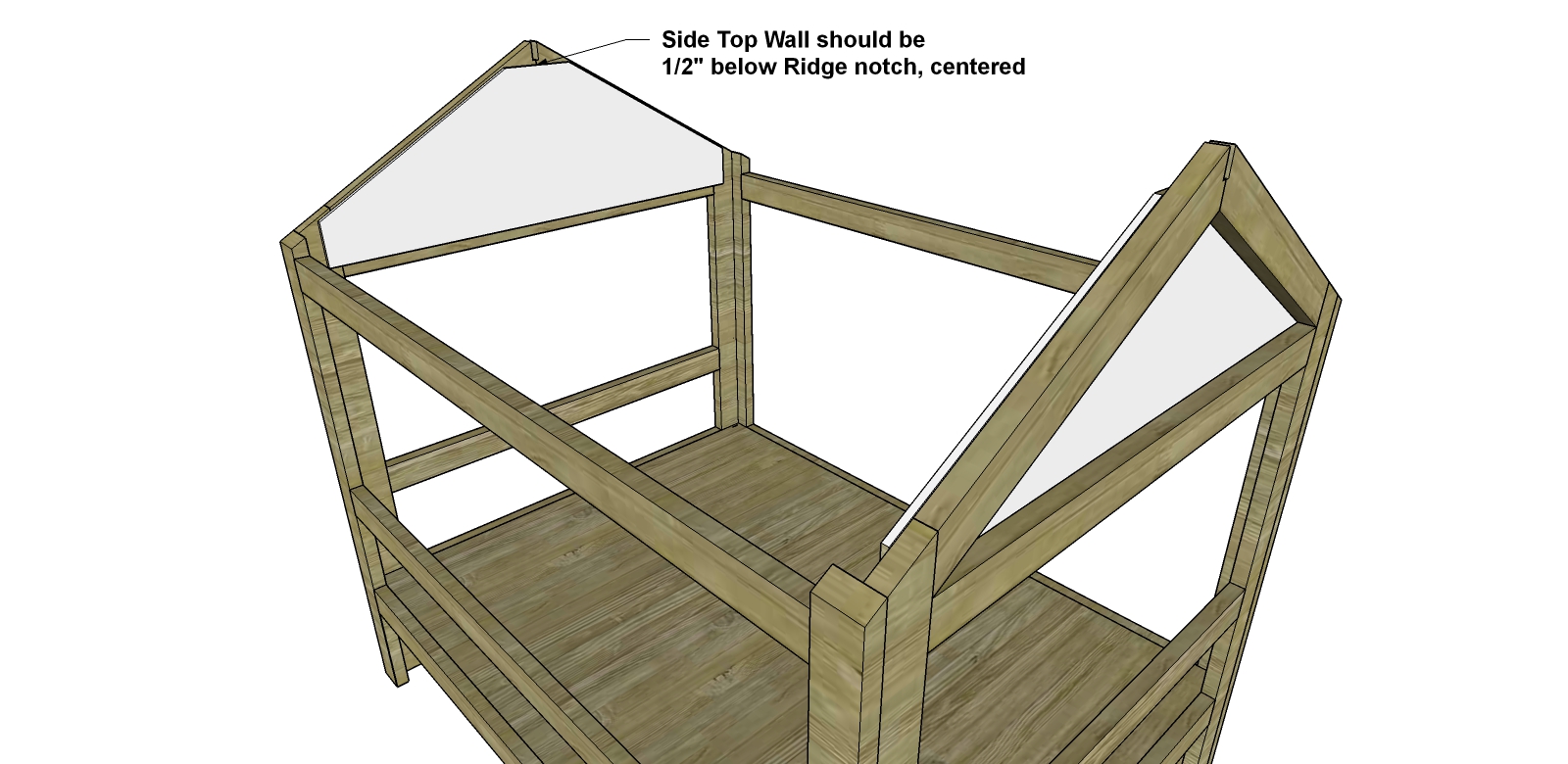

Cut the pieces for the Side Top Walls. Assemble as shown with glue and 1-1/4” brad nails.

Step 12
You Can Build This! The Design Confidential Free DIY Furniture Plans // How to Build a Full Sized Cabin Bed

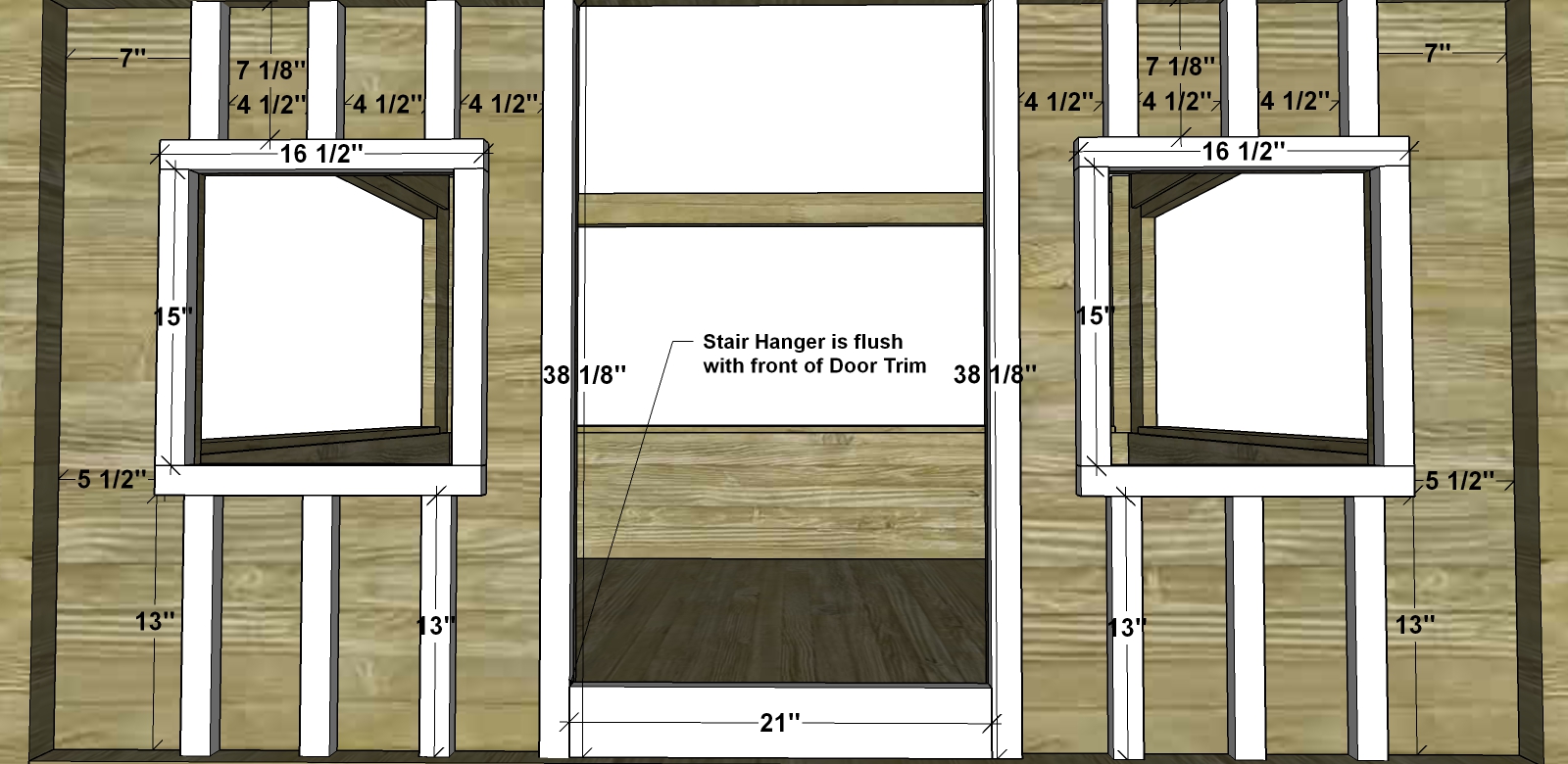

Cut the pieces for the Front Trim, Door Trim, Window Trim, and Stair Hanger. Assemble the Front Trim, Door Trim, and Window Trim as shown with glue and 1-1/4” brad nails. Drill pocket holes in the ends of the Stair Hanger and attach with glue and 1-1/4” pocket screws.

Step 13
You Can Build This! The Design Confidential Free DIY Furniture Plans // How to Build a Full Sized Cabin Bed

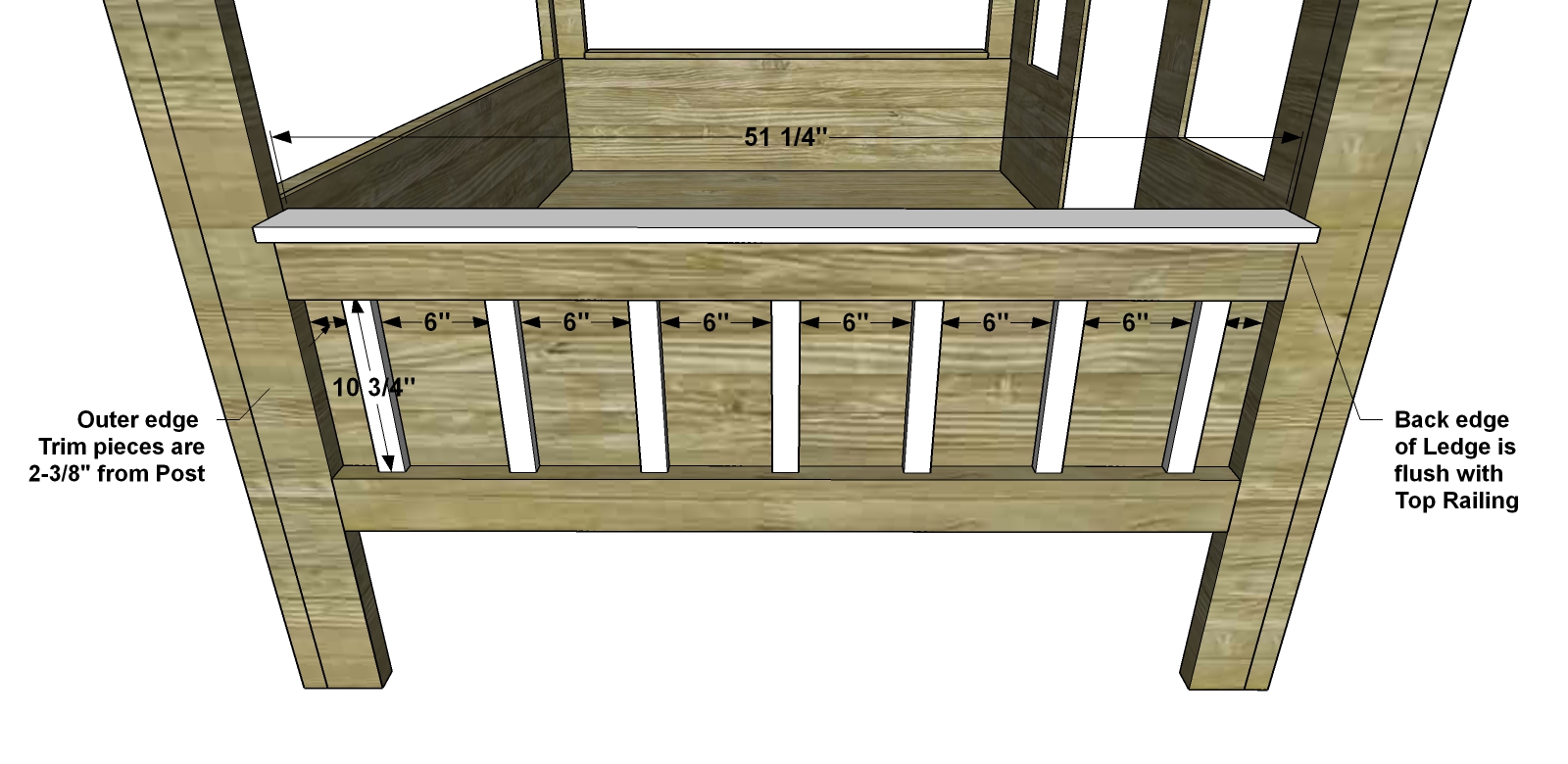

Cut the pieces for the Side Bottom Trim and Side Bottom Ledges. Attach as shown with glue and 1-1/4” brad nails.

Step 14
You Can Build This! The Design Confidential Free DIY Furniture Plans // How to Build a Full Sized Cabin Bed

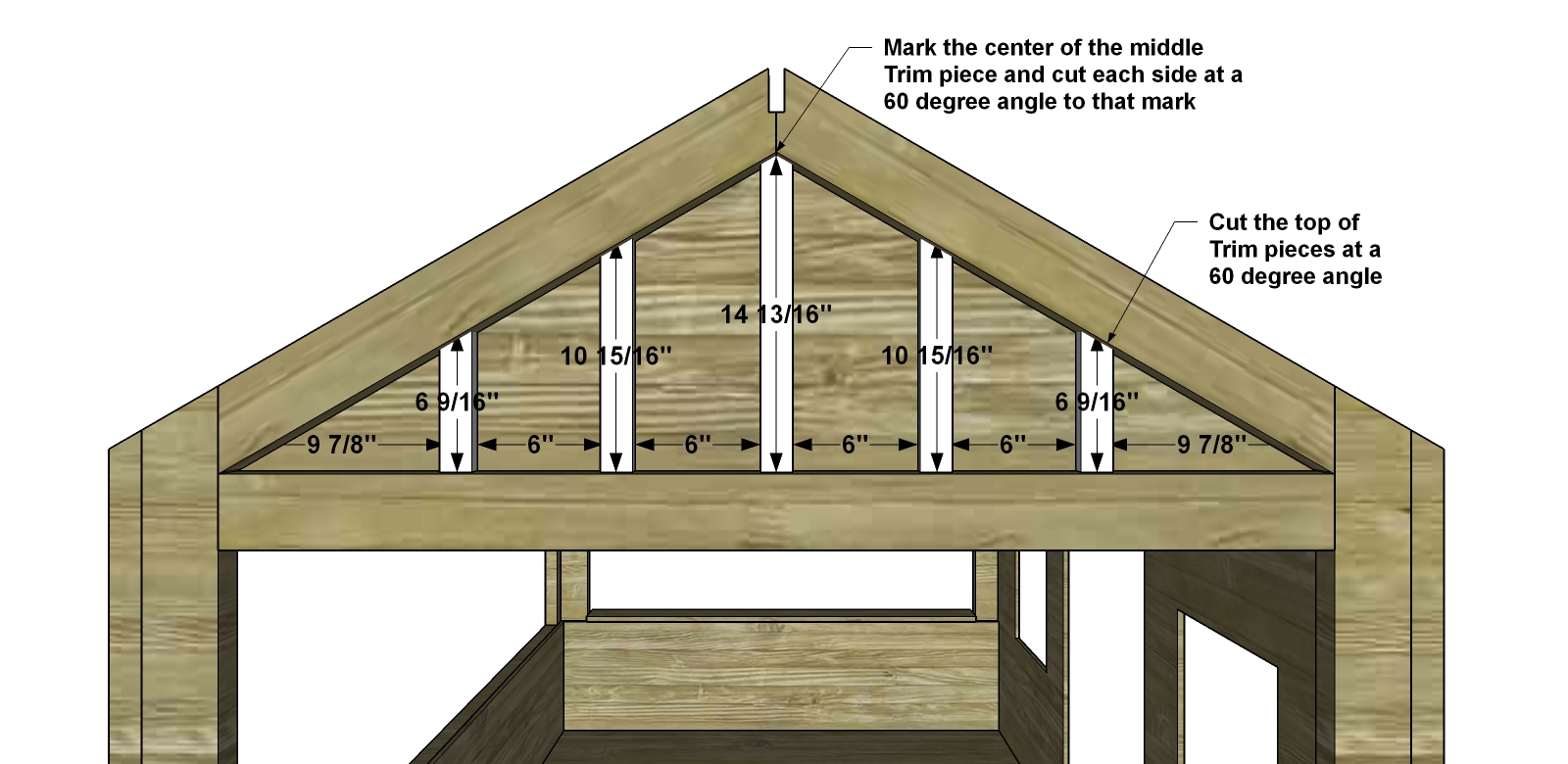

Cut the pieces for the Side Top Trim. Attach as shown with glue and 1-1/4” brad nails.

Step 15
You Can Build This! The Design Confidential Free DIY Furniture Plans // How to Build a Full Sized Cabin Bed

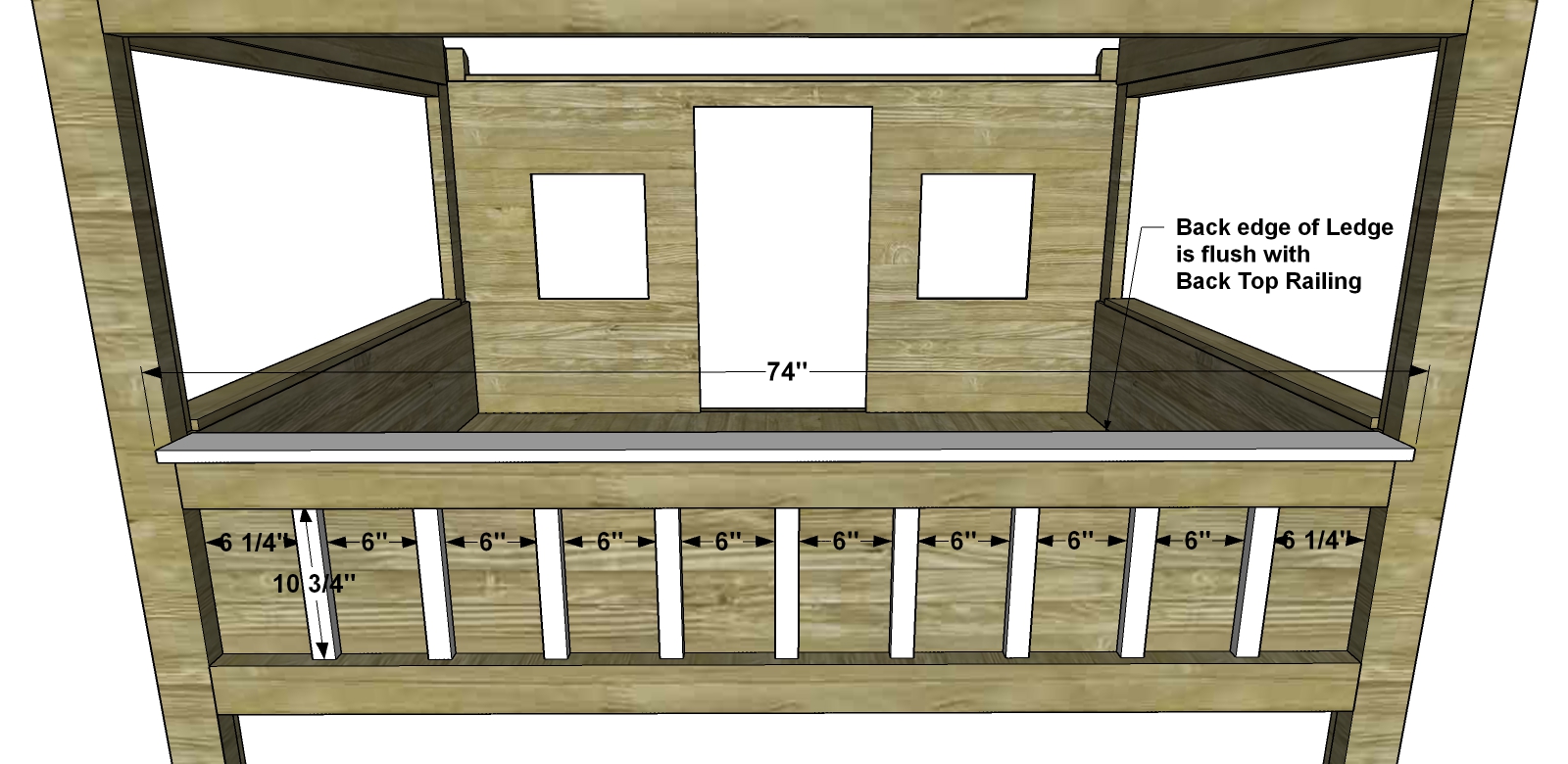

Cut the pieces for the Back Trim and Back Ledge. Attach as shown with glue and 1-1/4” brad nails.

Step 16
You Can Build This! The Design Confidential Free DIY Furniture Plans // How to Build a Full Sized Cabin Bed
You Can Build This! The Design Confidential Free DIY Furniture Plans // How to Build a Full Sized Cabin Bed

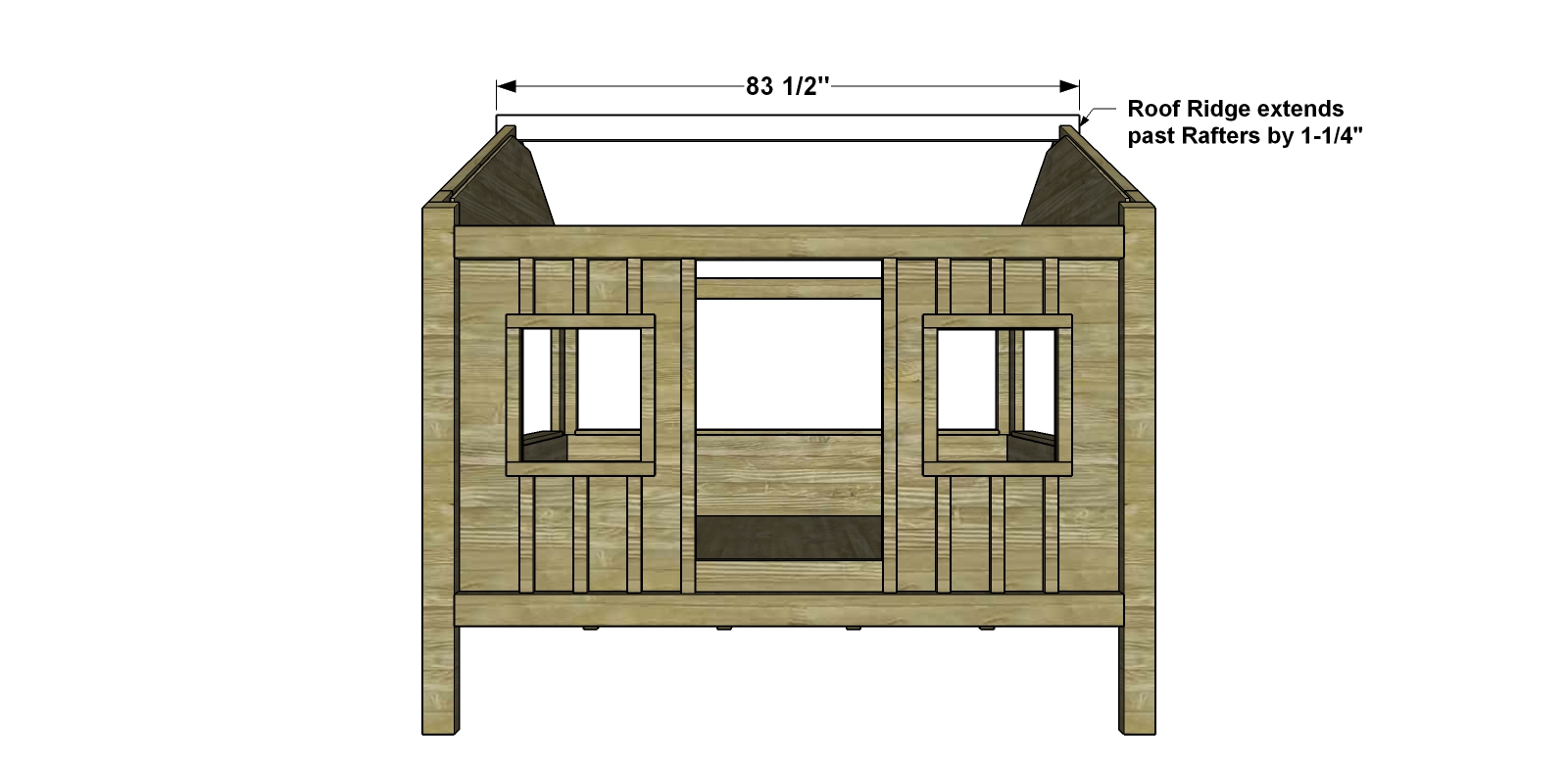

Cut the piece for the Roof Ridge. Attach as shown with glue and 1-1/4” brad nails, nailed through the Rafters.

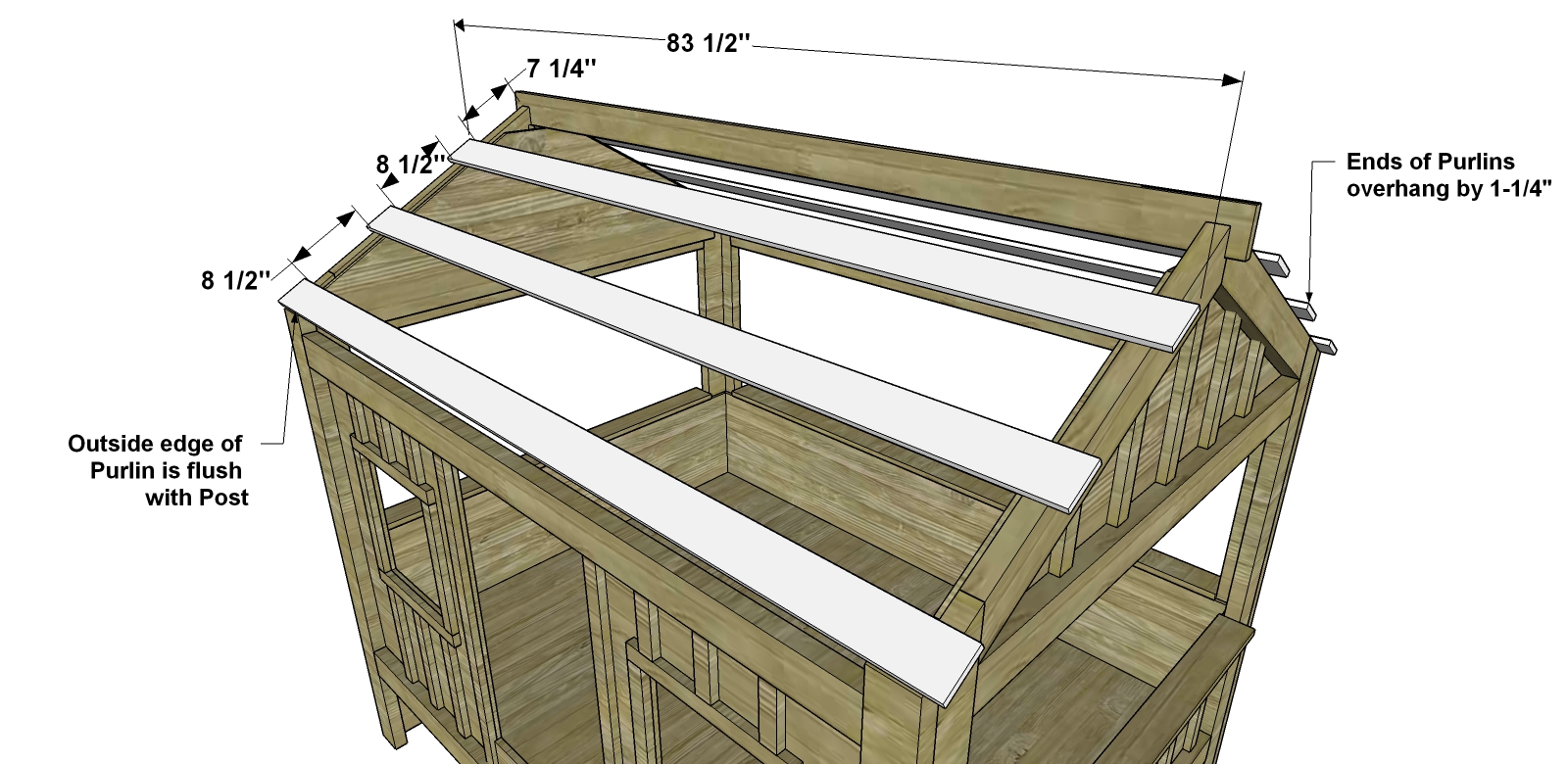

Cut the pieces for the Purlins. Attach as shown with glue and 1-1/4” brad nails. The ends of the Purlins should extend 1-1/4” past the Rafters.

Step 17
You Can Build This! The Design Confidential Free DIY Furniture Plans // How to Build a Full Sized Cabin Bed

Cut the pieces for the Roof Slats. Attach as shown with glue and 1-1/4” brad nails. Roof Slats should be spaced 1/2” apart from each other and extend approximately 2” past the Front and Back Rails. The first and last  Roof Slats should be flush with the Roof Ridge.

Step 18

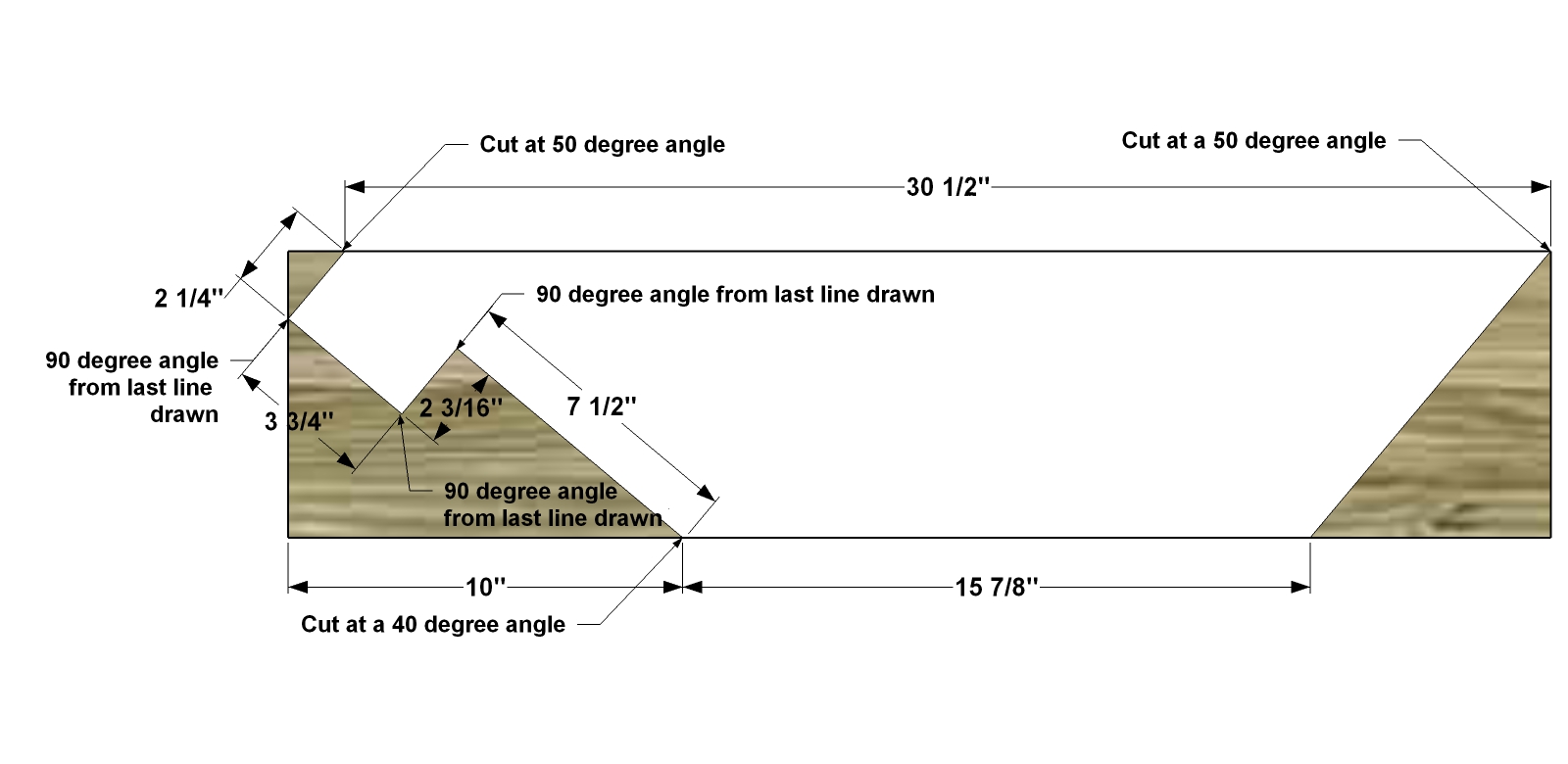

Stair Side for The Design Confidential Free DIY Furniture Plans // How to Build a Full Sized Cabin Bed
Steps for The Design Confidential Free DIY Furniture Plans // How to Build a Full Sized Cabin Bed

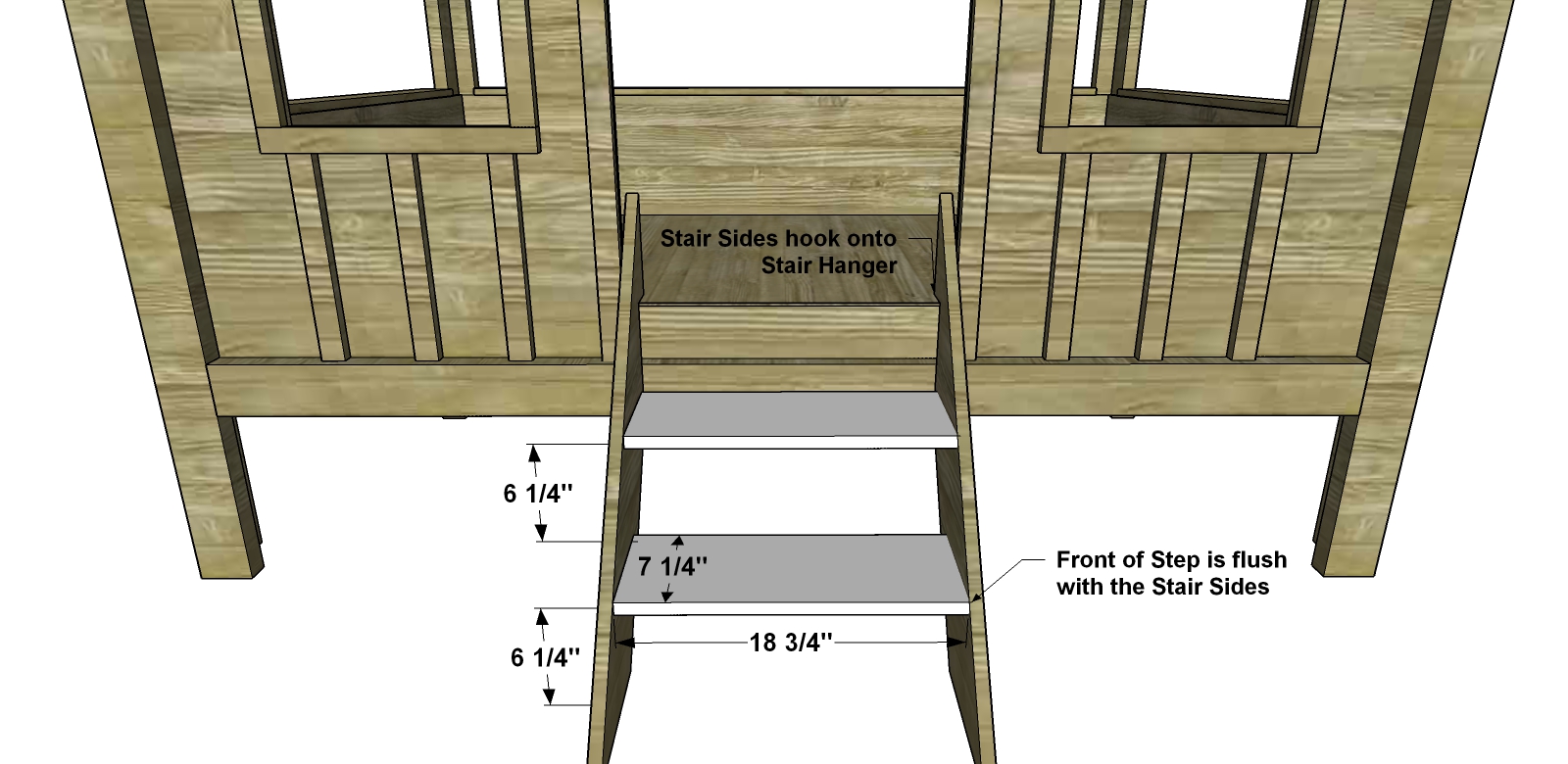

Cut the pieces for the Stair Sides and Steps.

Drill pocket holes in the both ends of the steps. Assemble as shown with glue and 1-1/4” pocket screws – make sure the pocket holes face the ground when assembling. Place on the Stair Hanger as shown and climb on in!

Finishing Instructions

Fill any Screw, Nail or Pocket Holes, Sand and Finish as Desired. For Finishing Tips and Tricks visit my Finishing School
