You asked, sweet friends... and so you shall receive! This gorgeous plan in a twin sized version! Of course, you generally always 'receive' when you ask for plans, so I suppose this isn't precisely celebratory, but so many wanted this in twin that I think it is high time you get it! Yahoo! We are working on rolling out all of the other hundreds of project requests, so if you are hoping for something specific, stay tuned or feel free to post it in our community forum so I can keep track of what I am supposed to be working on!

If you prefer plans for the Full Sized version, click here.

Estimated Cost
$250-$300
Dimensions
The Design Confidential Free DIY Furniture Plans How to Build a Twin Sized Cabin Loft Bed
Tools
Lumber
  • 18 – 1/2x4 (rip down 1/2” plywood if lumber is unavailable) at 8’
  • 7 – 1x2 at 8’
  • 3 – 1x4 at 8’
  • 2 – 1x8 at 8’
  • 15 – 2x4 at 8’
  • 2 – 1/2” plywood at 4’x8’
  • 1 – 3/4” plywood at 4’x8’
Materials
Cut List
  • // Refer to specific steps in this plan before cutting pieces - some pieces are cut with angled ends and their exact
  • 4 – 2x4 at 65-1/2” – Post A
  • 4 – 2x4 at 63-7/16” – Post B
  • 3 – 2x4 at 36-1/4” – Side Top Rail, Side Middle Rail, and Side Bottom Rail
  • 3 – 2x4 at 74” – Back Top Rail, Back Middle Rail, and Back Bottom Rail
  • 2 – 2x4 at 74” – Front Top Rail and Front Bottom Rail
  • 4 – 2x4 at 22-1/2” – Roof Rafters
  • 6 – 2x4 at 43-1/4” – Floor Joists
  • 1 – 3/4” plywood at 43-1/4” x 78” – Floor
  • 1 – 1/2” plywood at 14-1/4” x 78” – Back Wall
  • 2 – 1/2” plywood at 28-1/2” x 40” – Front Wall
  • 2 – 1/2” plywood at 14-1/4” x 42-1/4” –Side Bottom Walls
  • 2 – 1/2” plywood at 18” x 42” – Side Top Walls
  • 6 – 1x2 at 7-1/8” – Front Top Trim
  • 6 – 1x2 at 13” – Front Bottom Trim
  • 2 – 1x2 at 38-1/8” – Door Trim
  • 4 – 1x2 at 16-1/2 – Top and Bottom Window Trim
  • 4 – 1x2 at 15” – Side Window Trim
  • 1 – 1x4 at 21” – Stair Hanger
  • 2 – 1x4 at 36-1/4” – Side Ledges
  • 10 – 1x2 at 10-3/4” – Side Bottom Trim
  • 2 – 1x2 at 14-13/16” – Side Top Trim
  • 4 – 1x2 at 10-15/16” – Side Top Trim
  • 4 – 1x2 at 6-9/16” – Side Top Trim
  • 1 – 1x4 at 74” – Back Ledge
  • 9 – 1x2 at 10-3/4” – Back Trim
  • 1 – 1x4 at 83-1/2” – Roof Ridge
  • 6 – 1/2x4 at 83-1/2” – Purlins
  • 42 – 1/2x4 at 28” – Roof Slats
  • 2 – 1x8 at 31-15/16” – Stair Sides
  • 2 – 1x8 at 18-3/4” – Steps
  • may differ from the measurements listed below. Measurements listed below are PRE-BEVEL dimensions and the actual end measurements will change once cut according to specific steps.



Instructions

Before beginning to build, always check in on my site to make sure you have the most up to date set of plans, I occasionally update and change the plans to make the building process easier or to allow for less expensive purchasing of materials! Read through the entire set of instructions and all comments before beginning this project. If you print out or save plans, be sure to check in on my site to be sure you have the most up to date set of plans, as I occasionally update things for ease of building or buying. If you are new to building, read through the GETTING STARTED section and other articles found under the BUILD tab in the menu on my site, it has valuable information about how to get started, tools and techniques. If you are unfamiliar with the finishing process, visit my Finishing school for some tips and tricks for painting like a pro and for special finishing practices. Use glue to secure your joints and Consider Painting or Staining individual sections prior to assembling. This makes the paint application virtually flawless. Coat with a spray on Poly or Wipe on Poly to protect your finish and your piece and it will last for ages. Adhere to all safety standards and guidelines, and be sure you follow safety protocol throughout your build. If you are unsure about whether you are building safely, run a quick online search for the tool or technique you are using, or contact me via email or post to the forum before you move ahead. My contact info can be found in the menu of my site.

Step 1
The Design Confidential Free DIY Furniture Plans How to Build a Twin Sized Cabin Loft Bed
The Design Confidential Free DIY Furniture Plans How to Build a Twin Sized Cabin Loft Bed

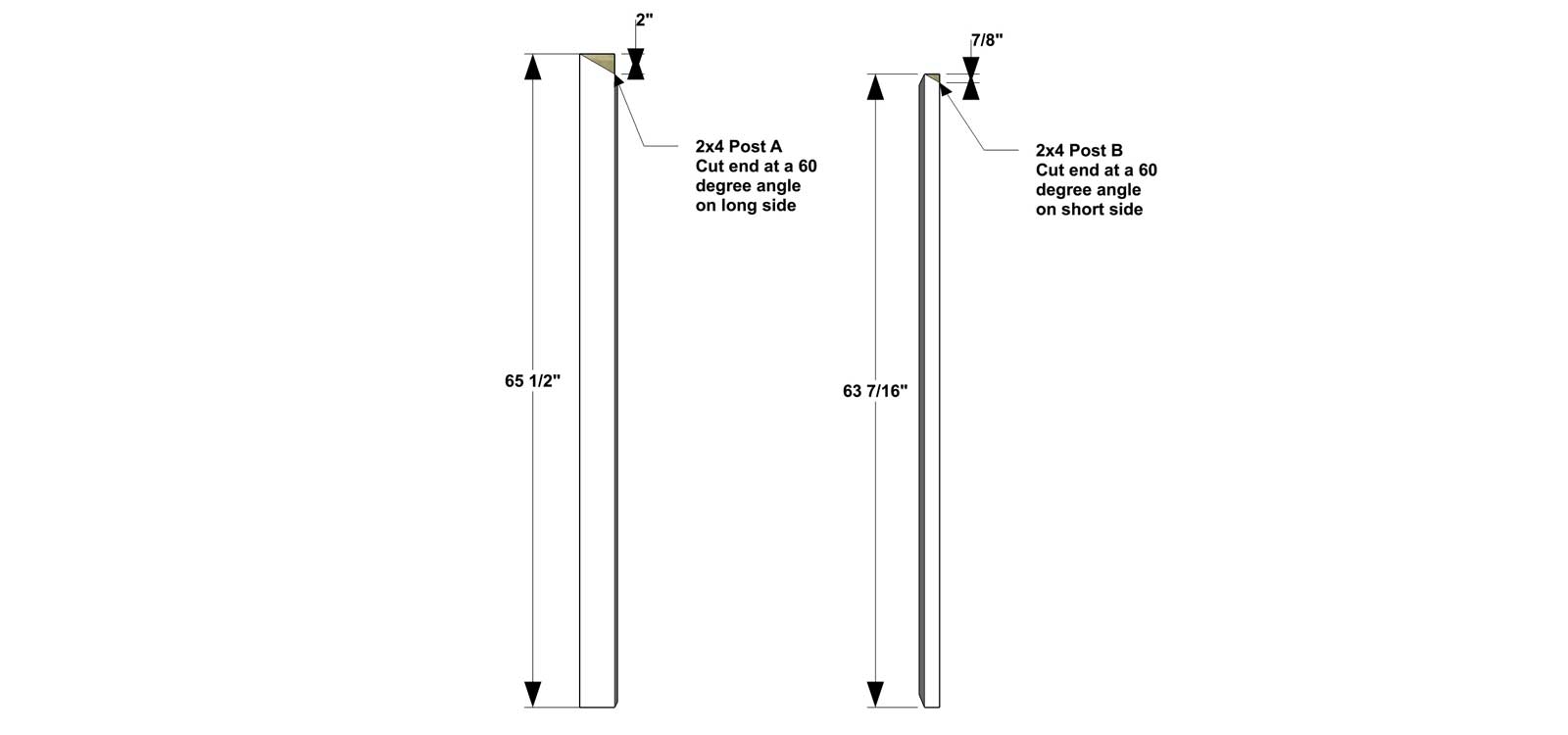

Cut the pieces for Posts A and Posts B as shown.

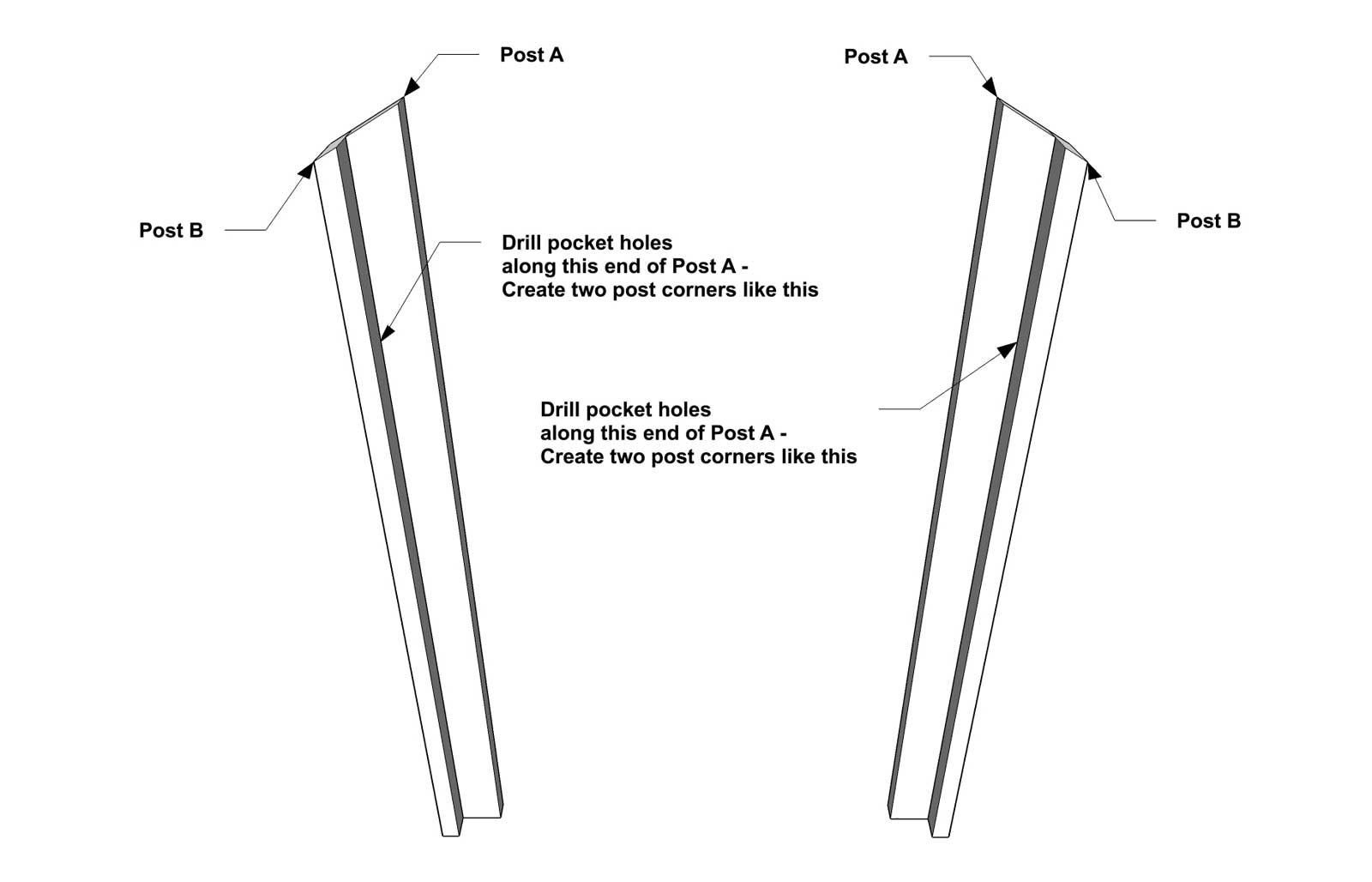

Set the Kreg jig for 1-1/2” material. Drill pocket holes in the long side of Post A as shown. Assemble Post A to Post B as shown with glue and 2-1/2” pocket screws. Repeat this process again, but in a “mirrored” assembly as shown in the image. Built a total of two sets of these “mirrored” Post pairs.

Step 2
The Design Confidential Free DIY Furniture Plans How to Build a Twin Sized Cabin Loft Bed

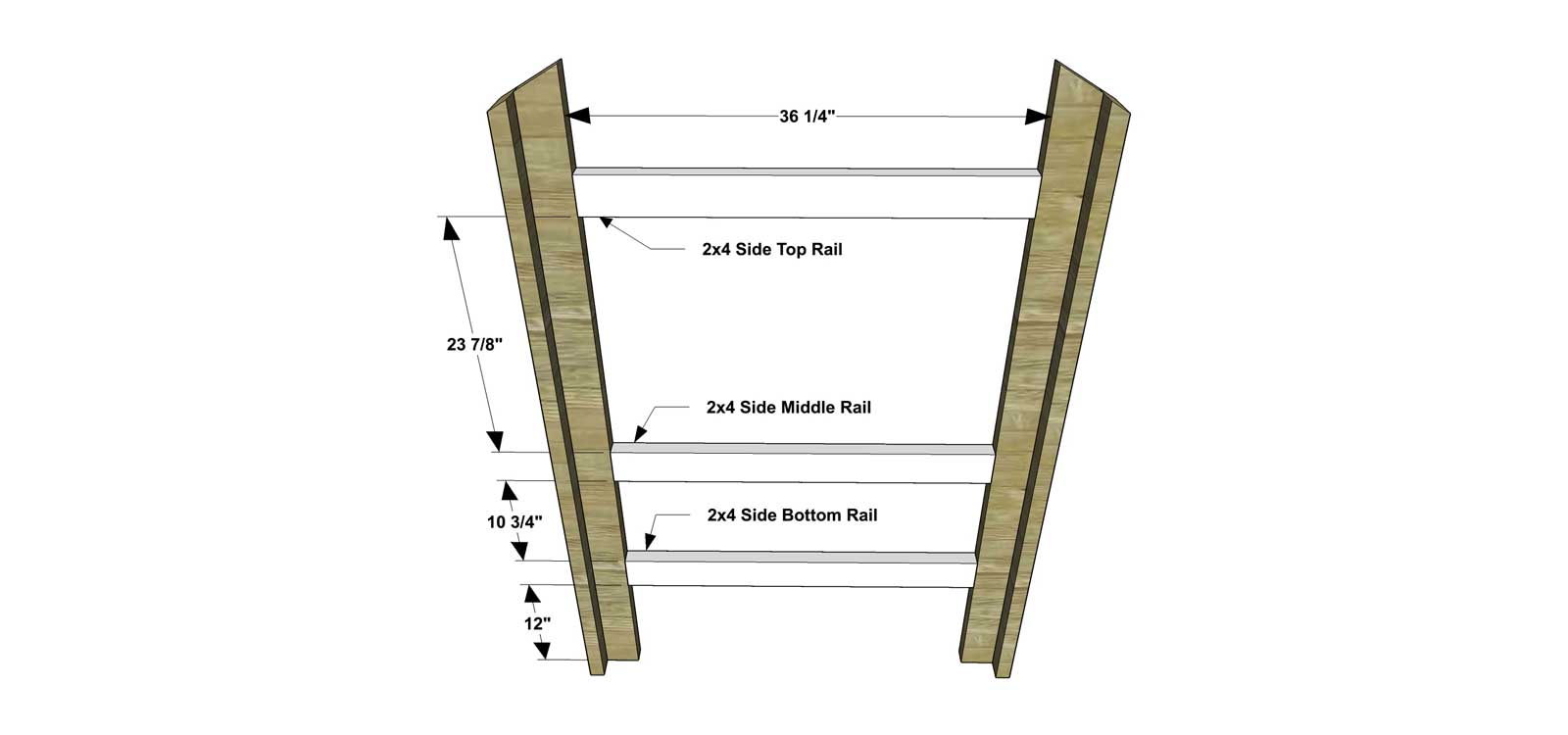

Cut the pieces for the Side Top Rail, Side Middle Rail, and Side Bottom Rail. Drill pocket holes in the ends of all pieces. Assemble pieces as shown with glue and 2-1/2” pocket screws.

Step 3
The Design Confidential Free DIY Furniture Plans How to Build a Twin Sized Cabin Loft Bed

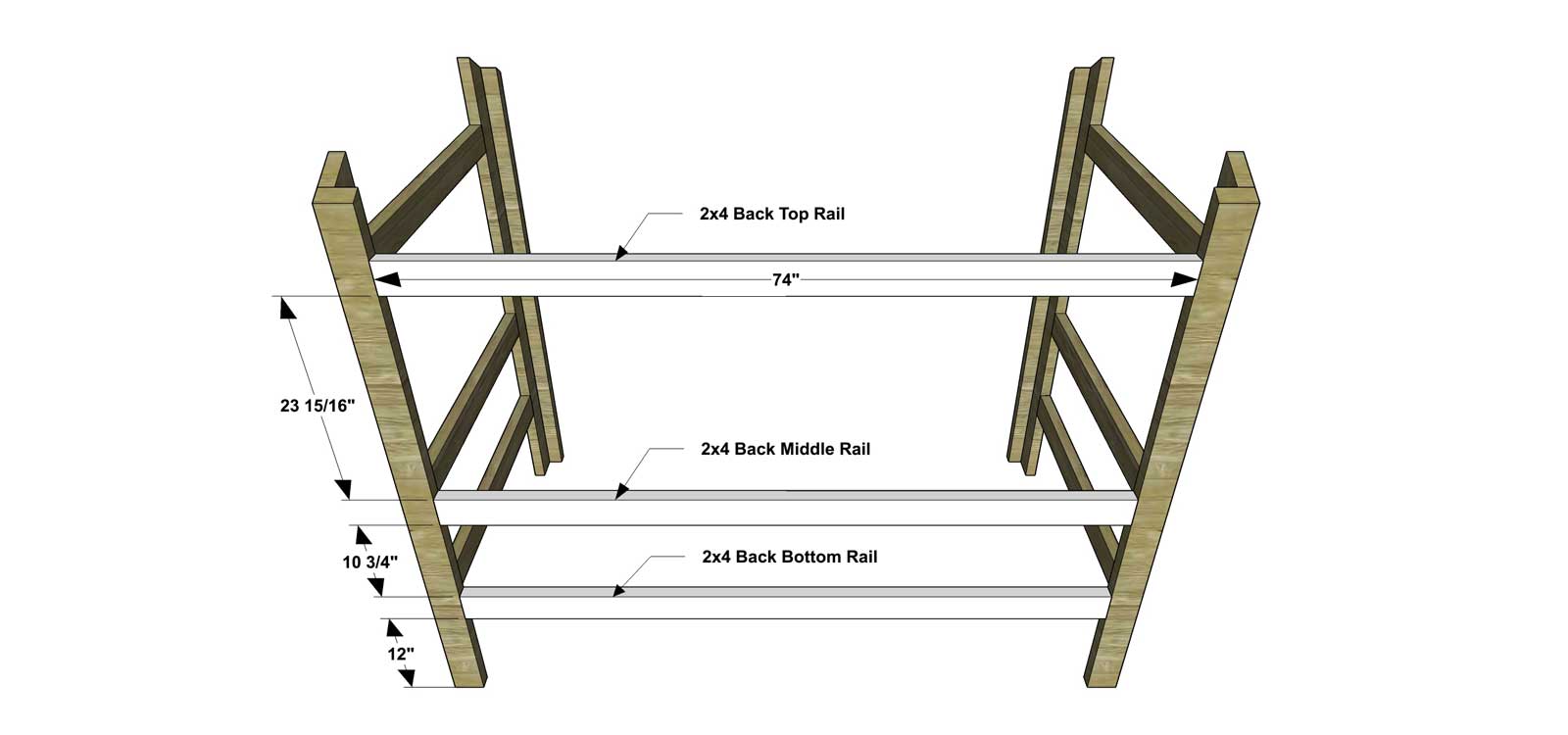

Cut the pieces for the Back Top Rail, Back Middle Rail, and Back Bottom Rail. Drill pocket holes in the ends of all pieces. Assemble as shown with glue and 2-1/2” pocket screws.

Step 4
The Design Confidential Free DIY Furniture Plans How to Build a Twin Sized Cabin Loft Bed

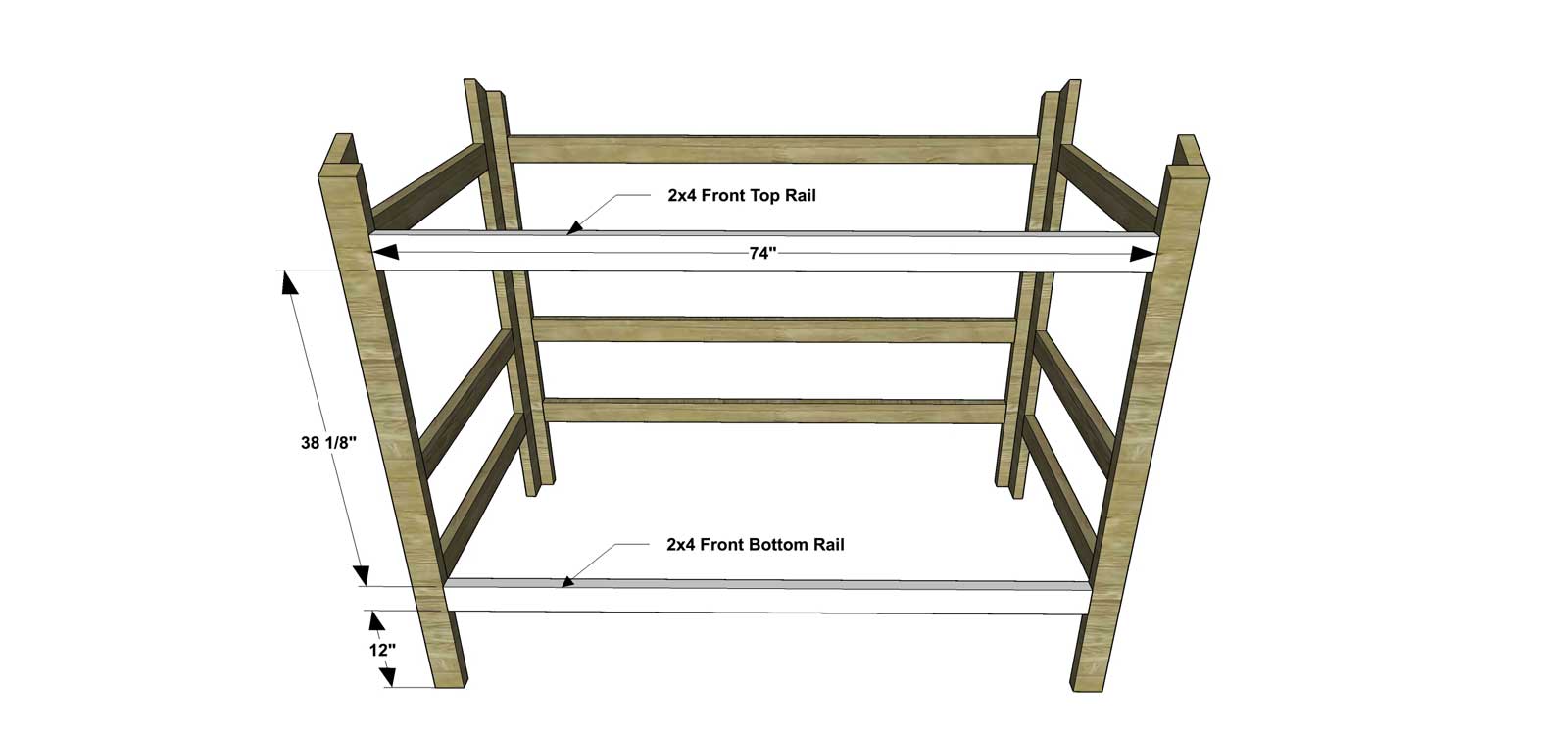

Cut the pieces for the Front Top Rail and Front Bottom Rail. Drill pocket holes in the ends of both pieces. Assemble as shown with glue and 2-1/2” pocket screws.

Step 5
The Design Confidential Free DIY Furniture Plans How to Build a Twin Sized Cabin Loft Bed
The Design Confidential Free DIY Furniture Plans How to Build a Twin Sized Cabin Loft Bed

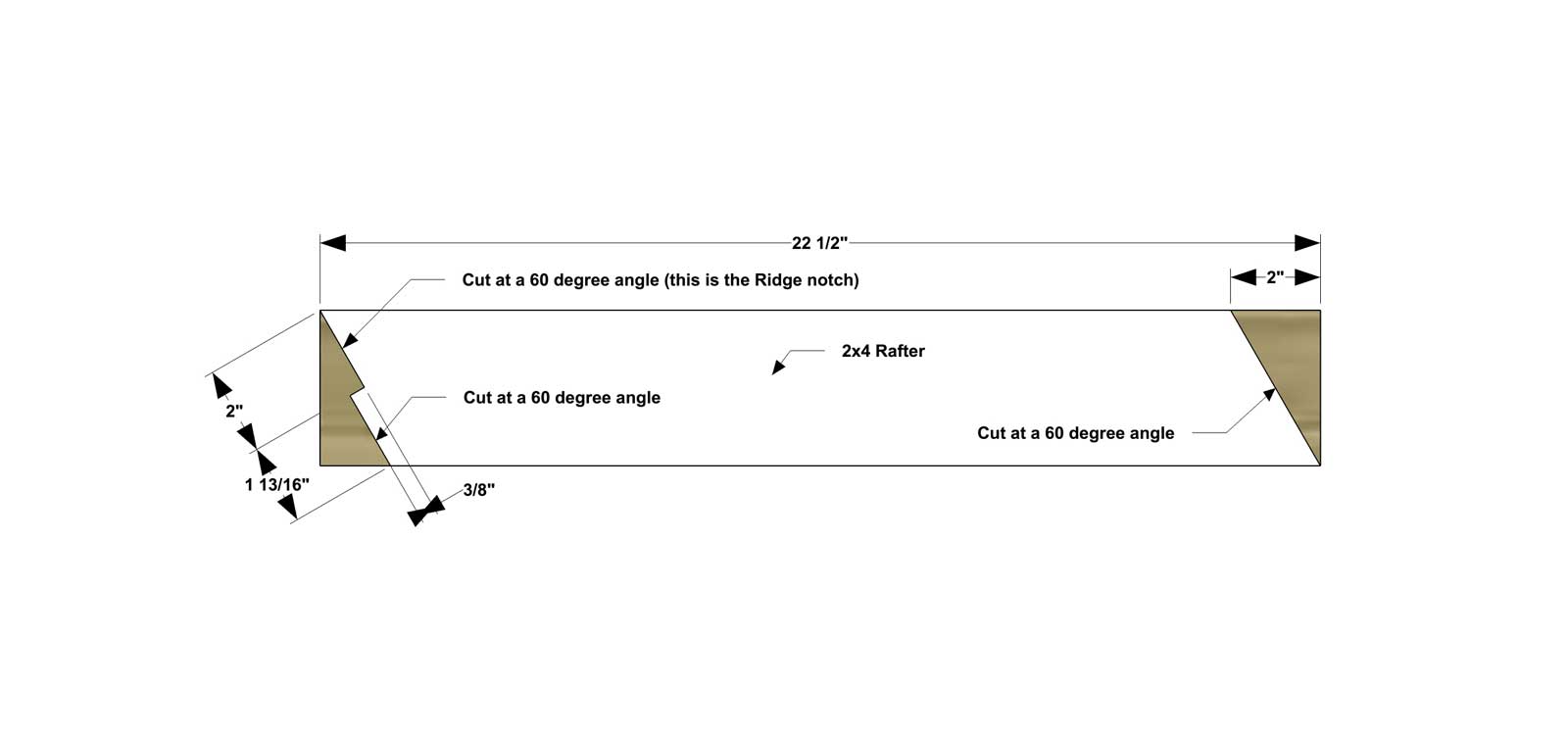

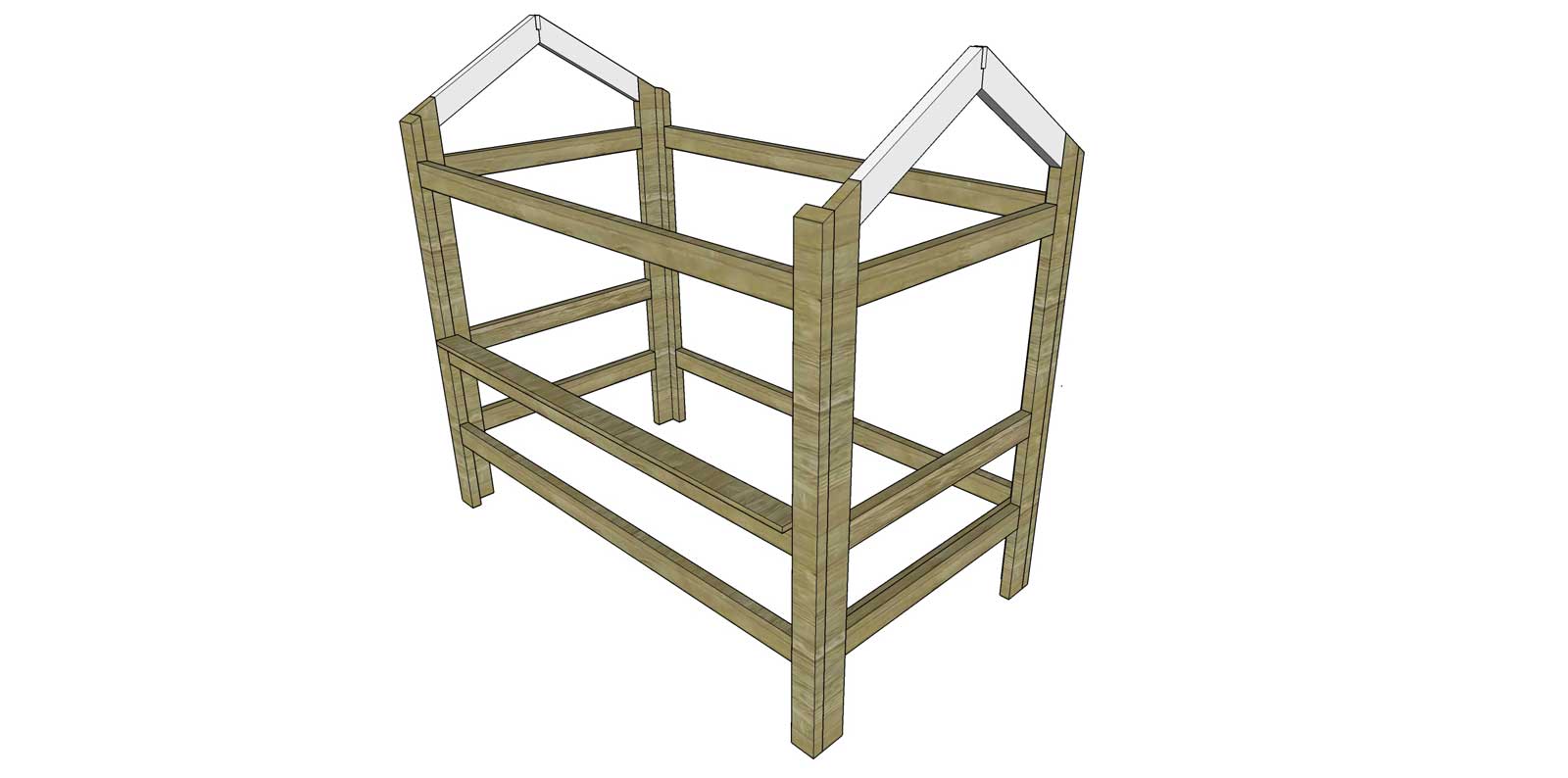

Cut the pieces for the Rafters. Drill pocket holes in the ends of the pieces (avoid drilling pocket screws in the Ridge notch area).

Assemble as shown with glue and 2-1/2” pocket screws.

Step 6
The Design Confidential Free DIY Furniture Plans How to Build a Twin Sized Cabin Loft Bed

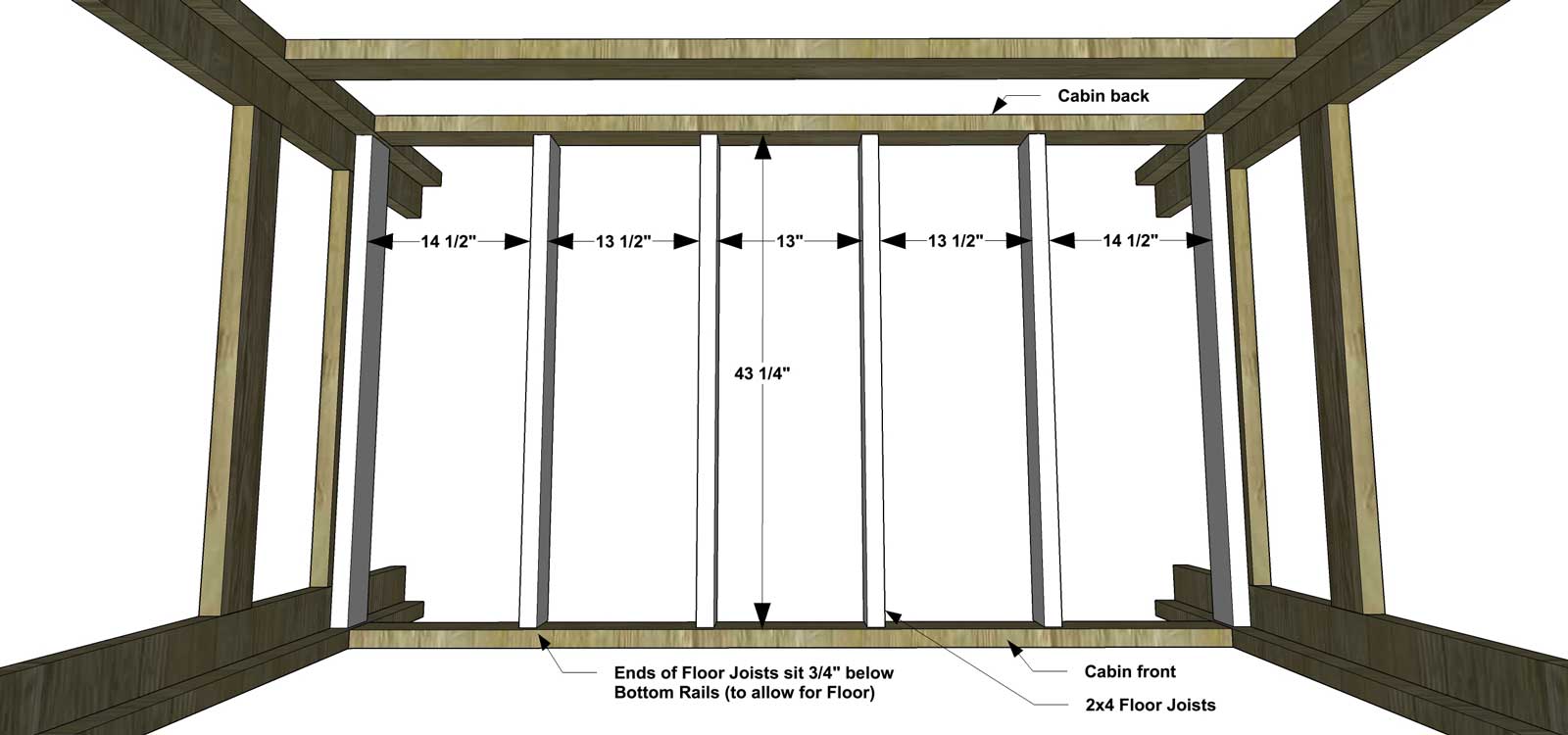

Cut the pieces for the Floor Joists. Drill pocket holes in each end of the pieces. Assemble as shown with glue and 2-1/2” pocket screws.

Step 7

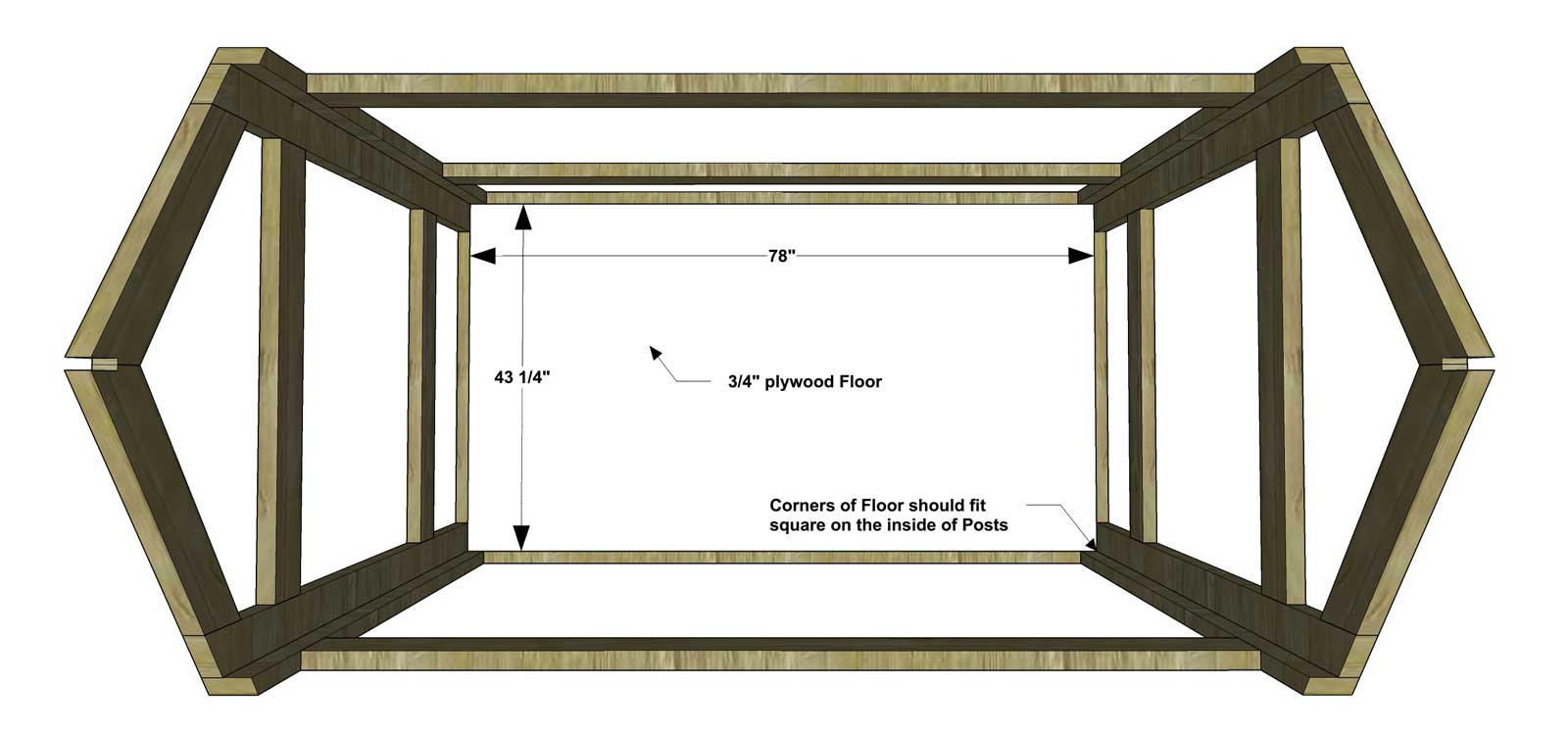

Cut the piece for the floor. Assemble as shown with glue and 1-1/4” brad nails.

Step 8

Cut the piece for the Back Wall. Assemble as shown with glue and 1-1/4” brad nails. Set the Kreg jig for 3/4” material and drill pocket holes on the bottom of the Back Wall piece. Assemble as shown with glue  - use 1-1/4” brad nails to secure the top and sides and 1-1/4” pocket screws to secure the bottom sides.

Step 9

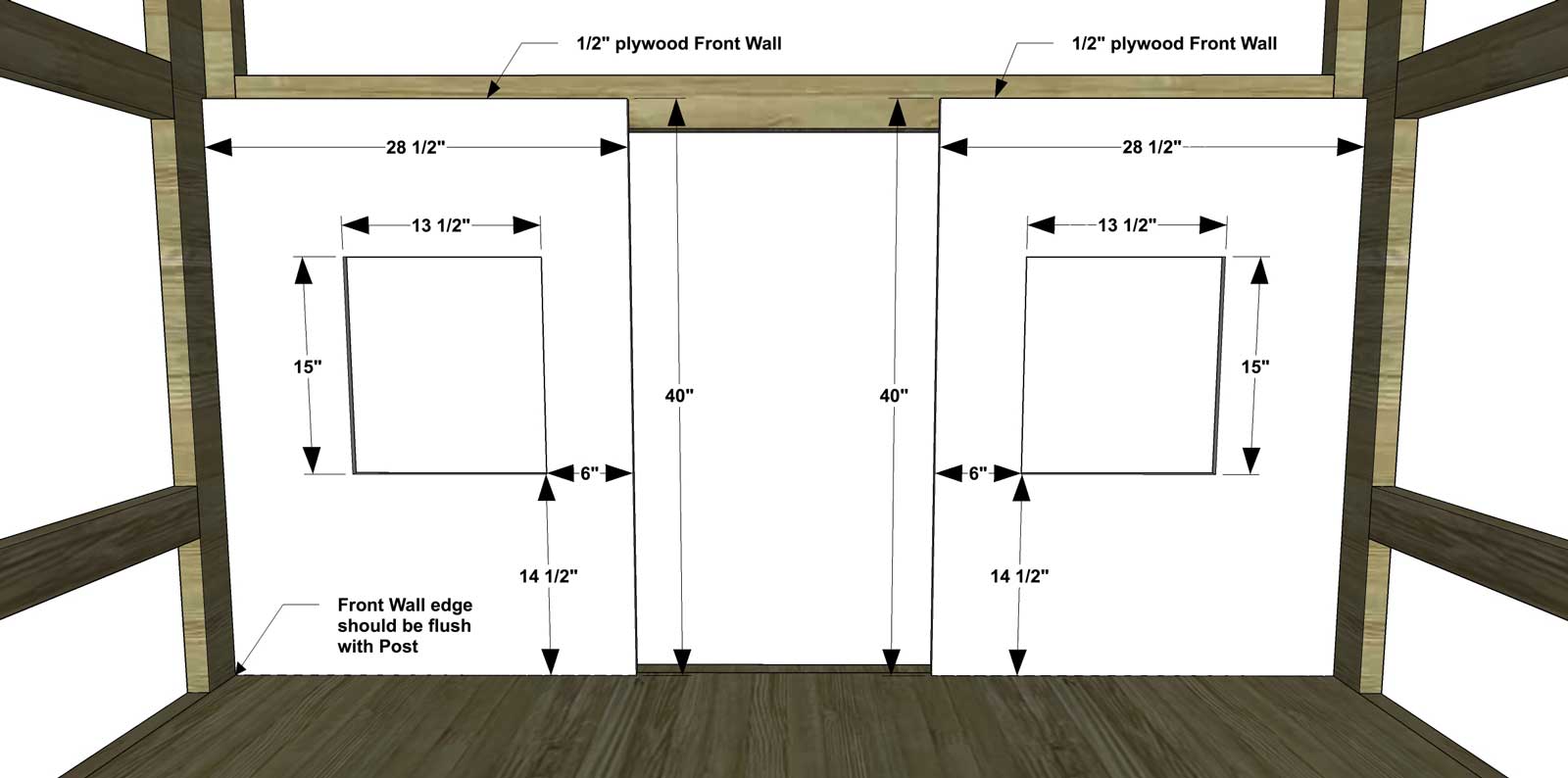

Cut the pieces for the Front Wall. Drill pocket holes on the bottoms of the Front Wall pieces. Assemble as shown with glue  - use 1-1/4” brad nails to secure the top and sides and 1-1/4” pocket screws to secure the bottom sides.

Step 10

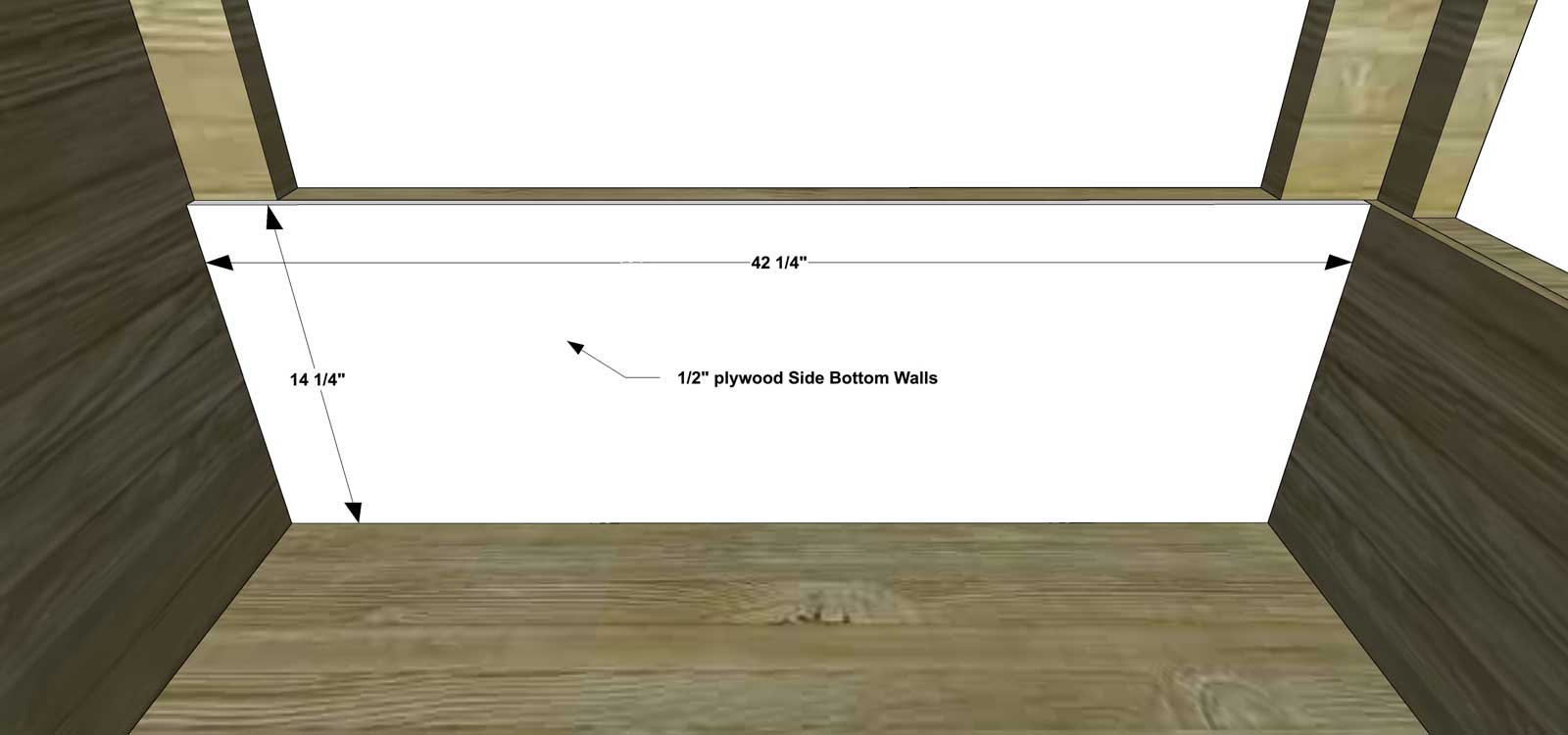

Cut the pieces for the Side Bottom Walls. Assemble as shown with glue and 1-1/4” brad nails. Drill pocket holes on the bottoms of the Side Wall pieces. Assemble as shown with glue  - use 1-1/4” brad nails to secure the top and sides and 1-1/4” pocket screws to secure the bottom sides.

Step 11

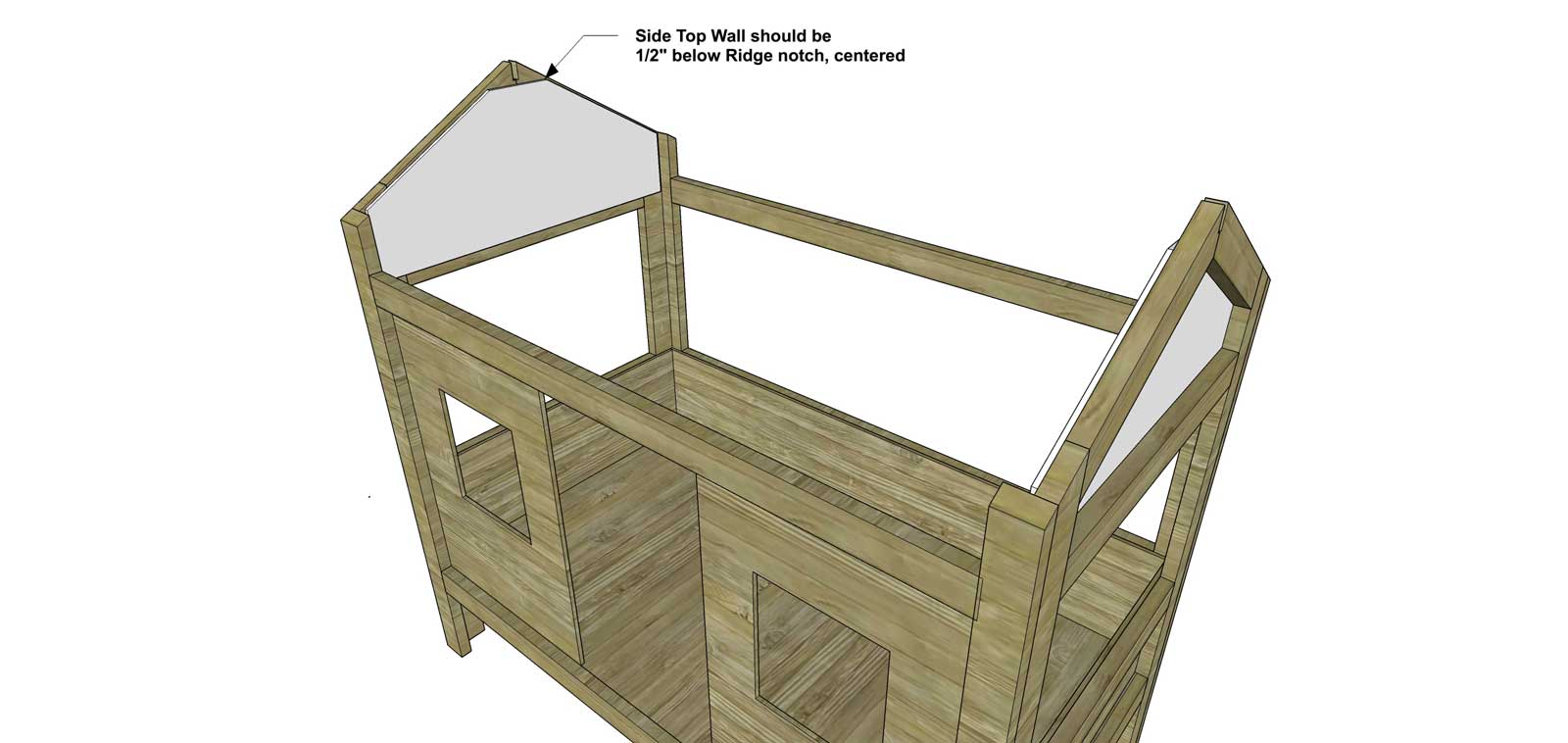

Cut the pieces for the Side Top Walls. Assemble as shown with glue and 1-1/4” brad nails.

Step 12

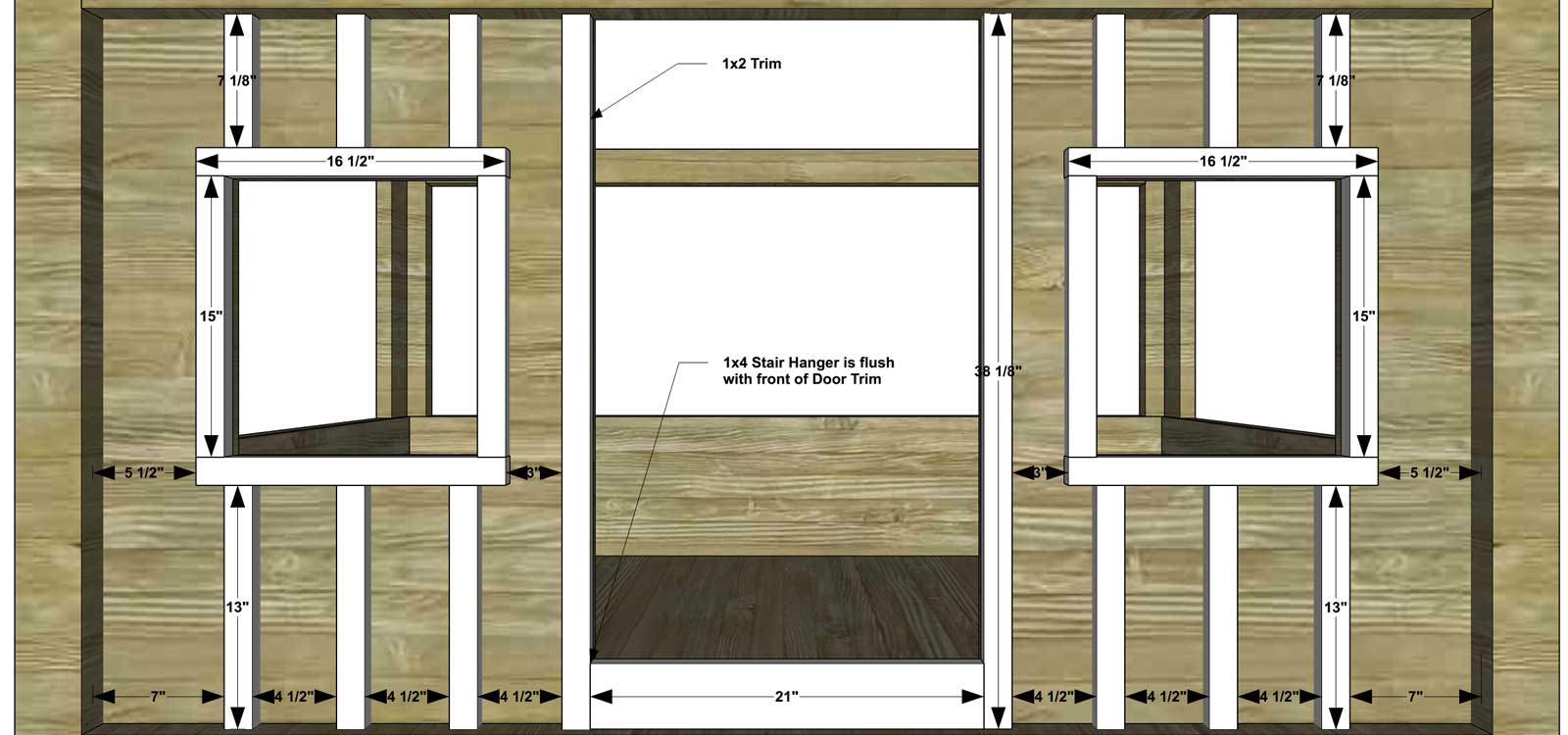

Cut the pieces for the Front Trim, Door Trim, Window Trim, and Stair Hanger. Assemble the Front Trim, Door Trim, and Window Trim as shown with glue and 1-1/4” brad nails. Drill pocket holes in the ends of the Stair Hanger and attach with glue and 1-1/4” pocket screws.

Step 13

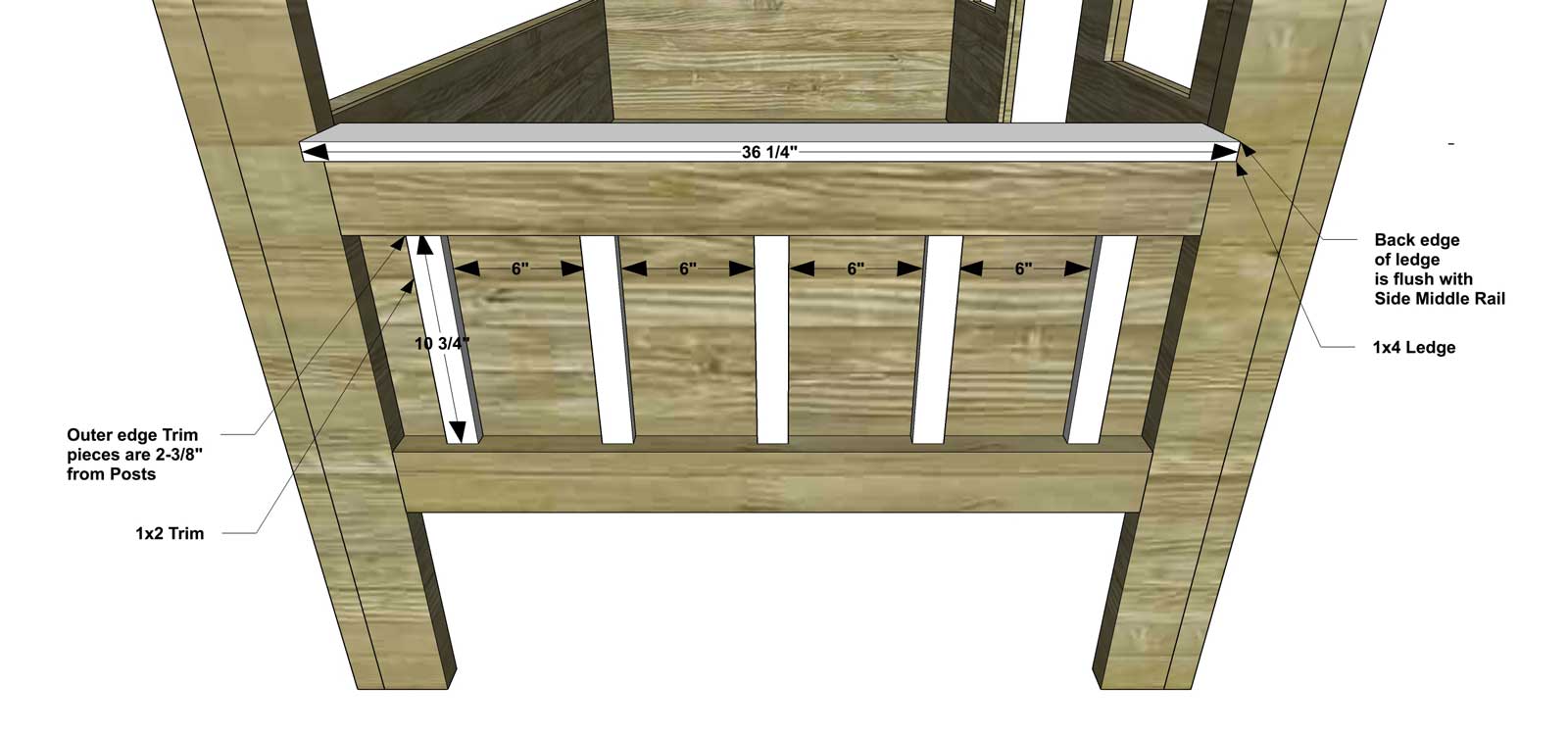

Cut the pieces for the Side Bottom Trim and Side Bottom Ledges. Attach as shown with glue and 1-1/4” brad nails.

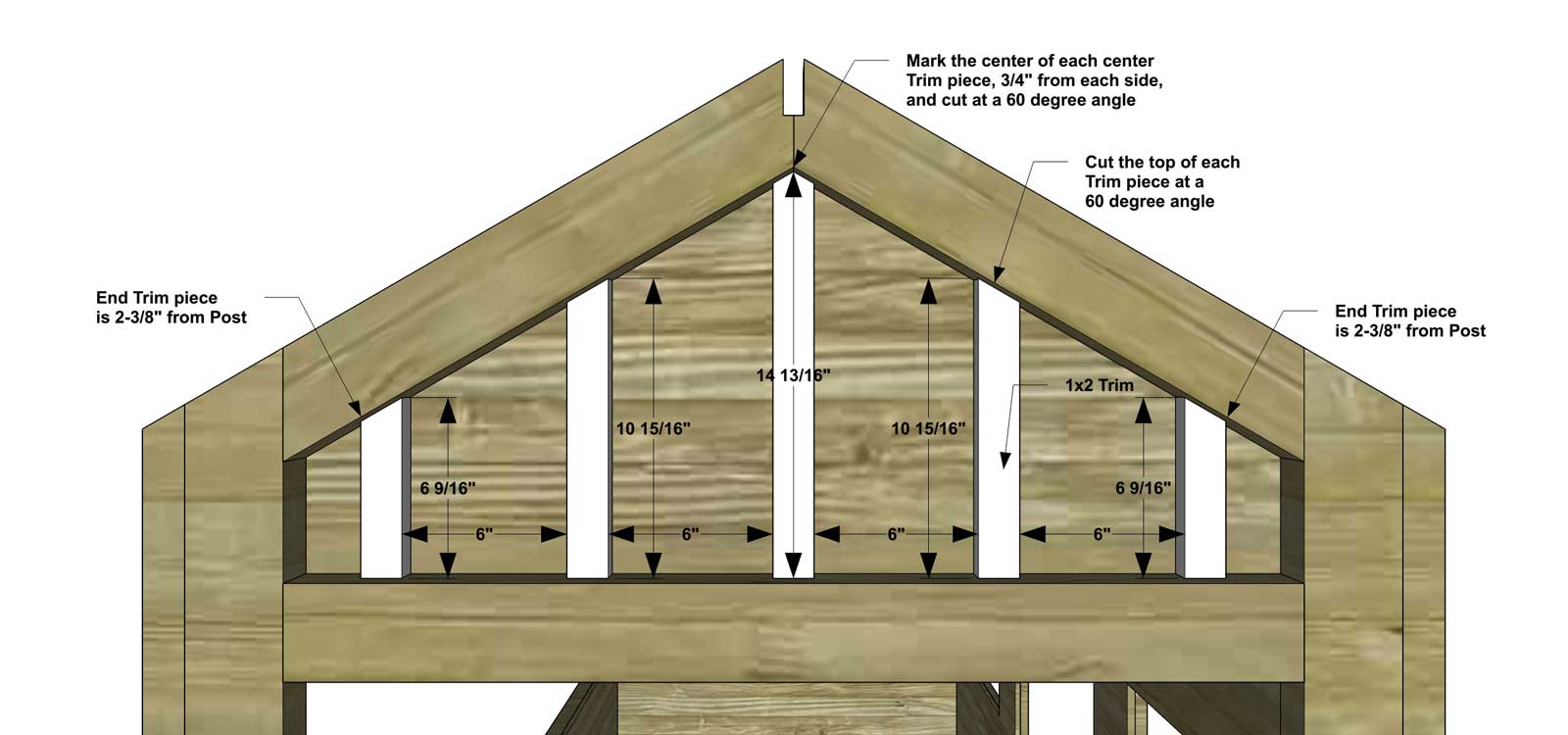

Cut the pieces for the Side Top Trim. Attach as shown with glue and 1-1/4” brad nails.

Step 14

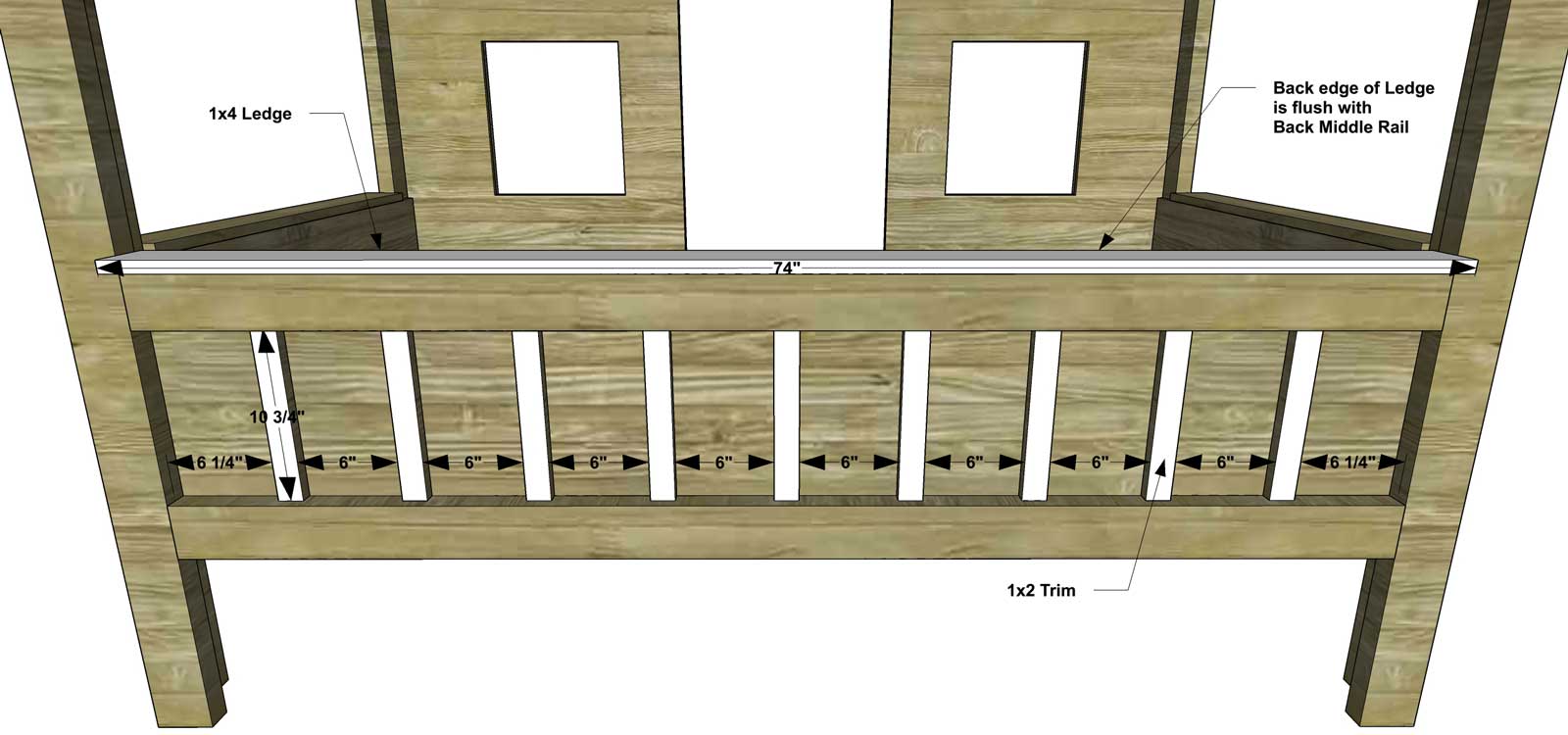

Cut the pieces for the Back Trim and Back Ledge. Attach as shown with glue and 1-1/4” brad nails.

Step 15

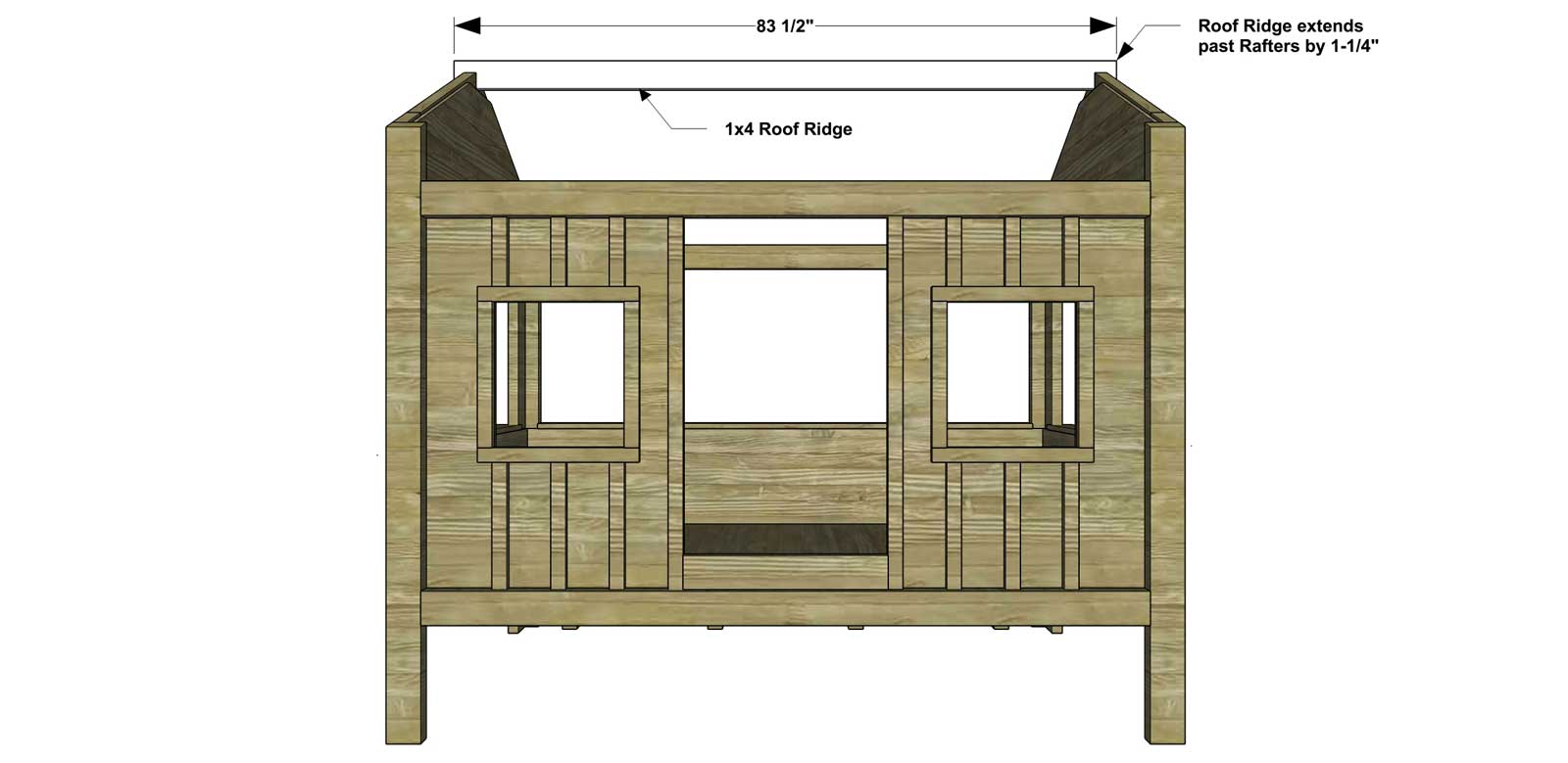

Cut the piece for the Roof Ridge. Attach as shown with glue and 1-1/4” brad nails, nailed through the Rafters.

Step 16

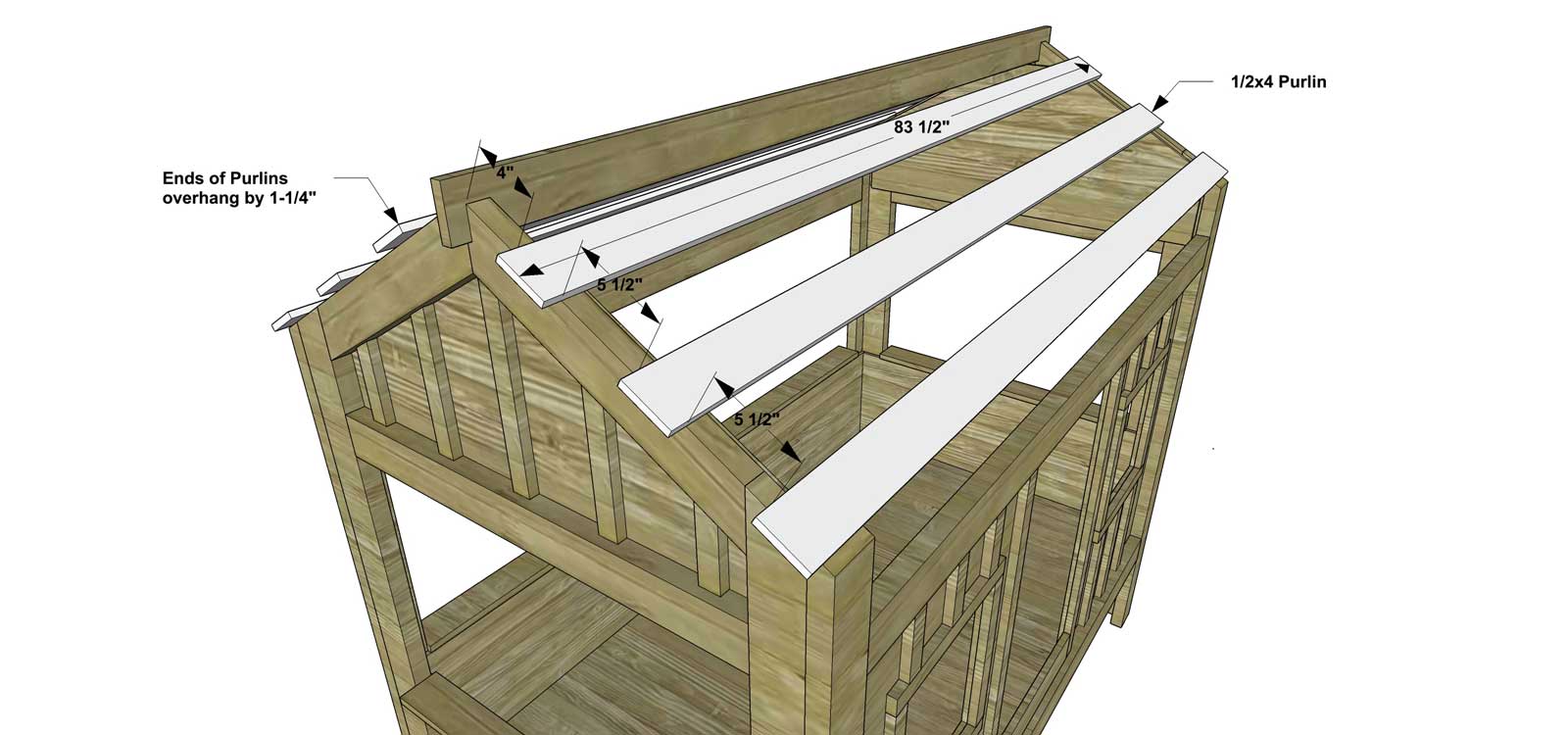

Cut the pieces for the Purlins. Attach as shown with glue and 1-1/4” brad nails. The ends of the Purlins should extend 1-1/4” past the Rafters.

Step 17

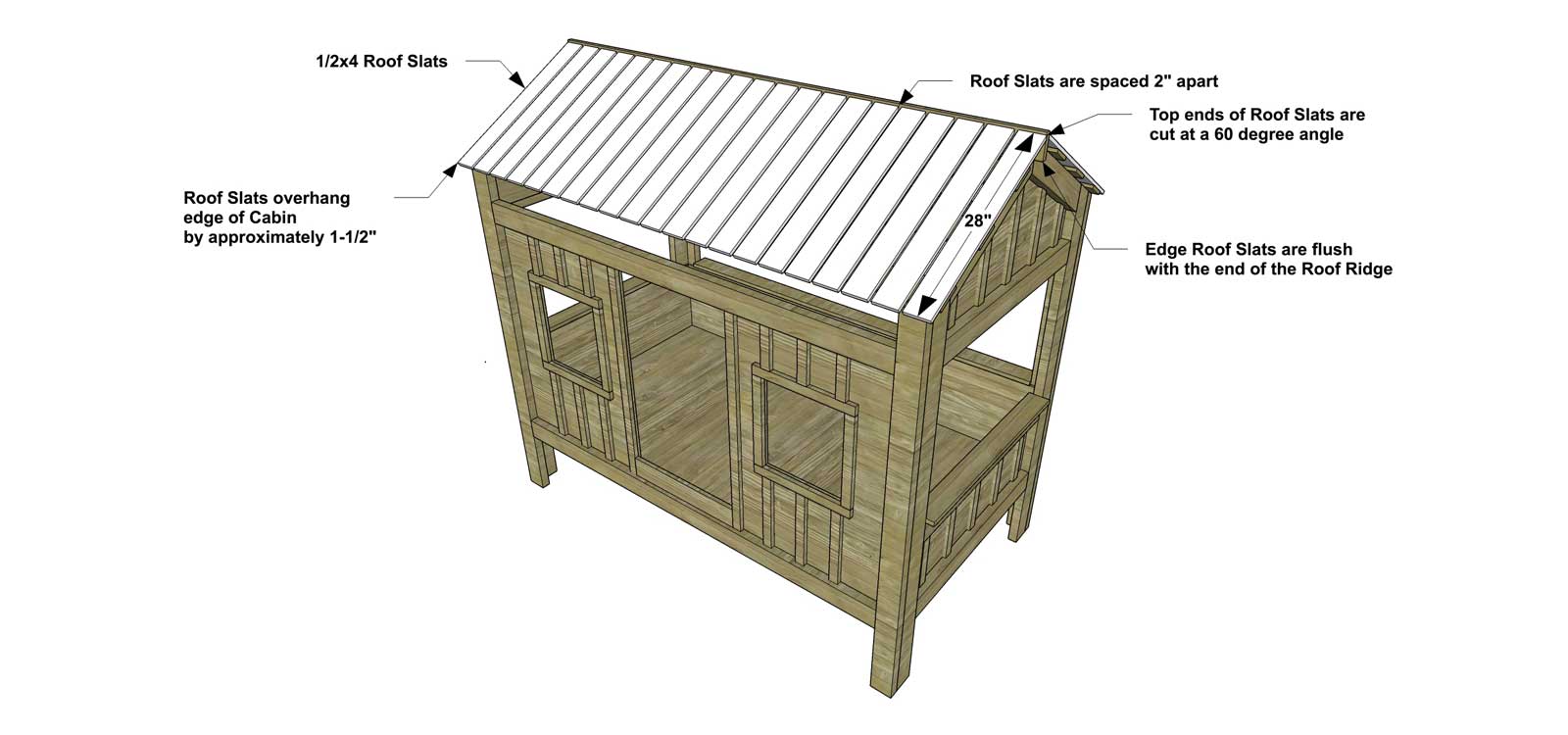

Cut the pieces for the Roof Slats. Attach as shown with glue and 1-1/4” brad nails. Roof Slats should be spaced 1/2” apart from each other and extend approximately 1-1/2” past the Front and Back Rails. The first and last Roof Slats should be flush with the Roof Ridge.

Step 18

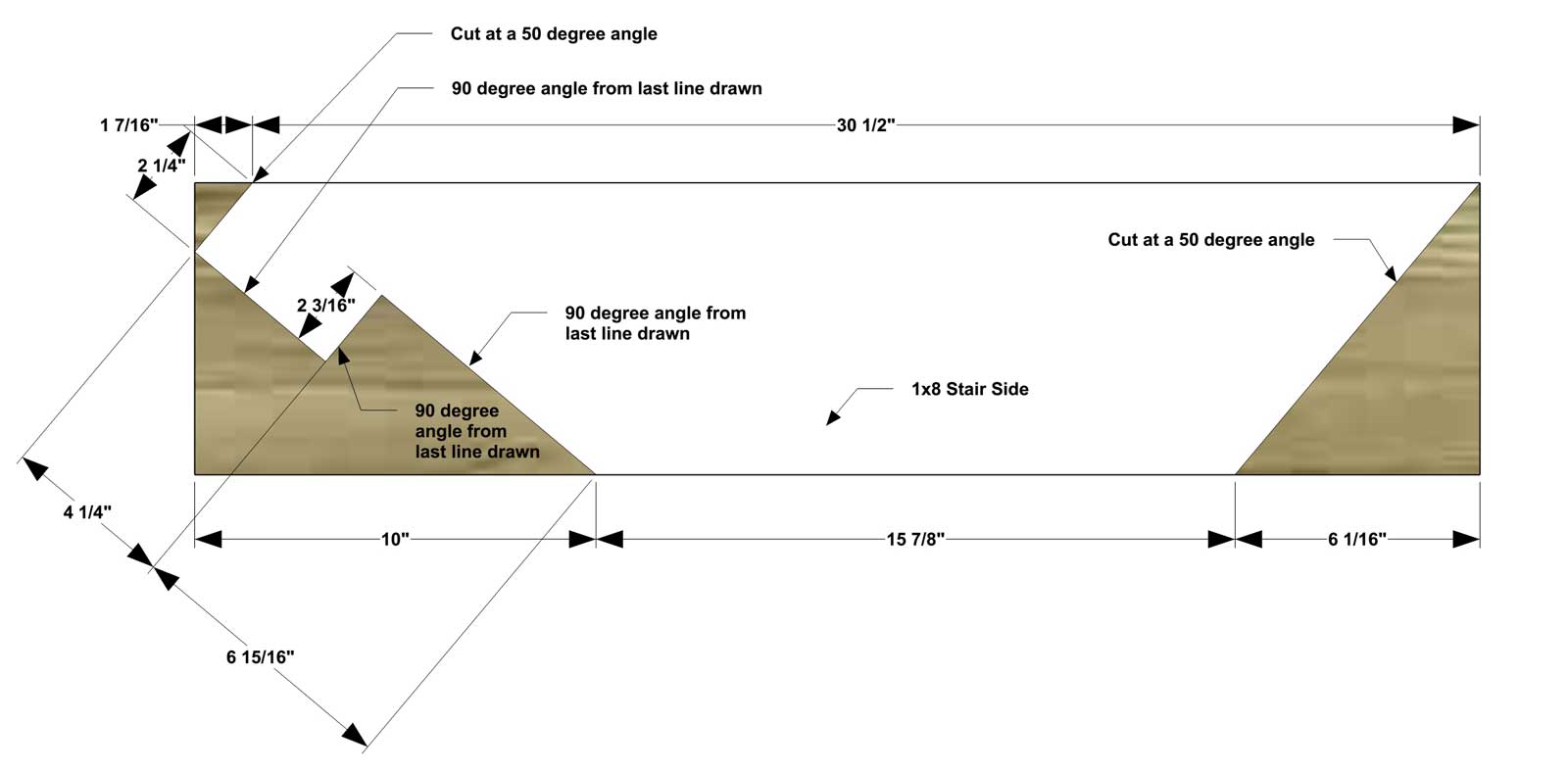

Cut the pieces for the Stair Sides and Steps.

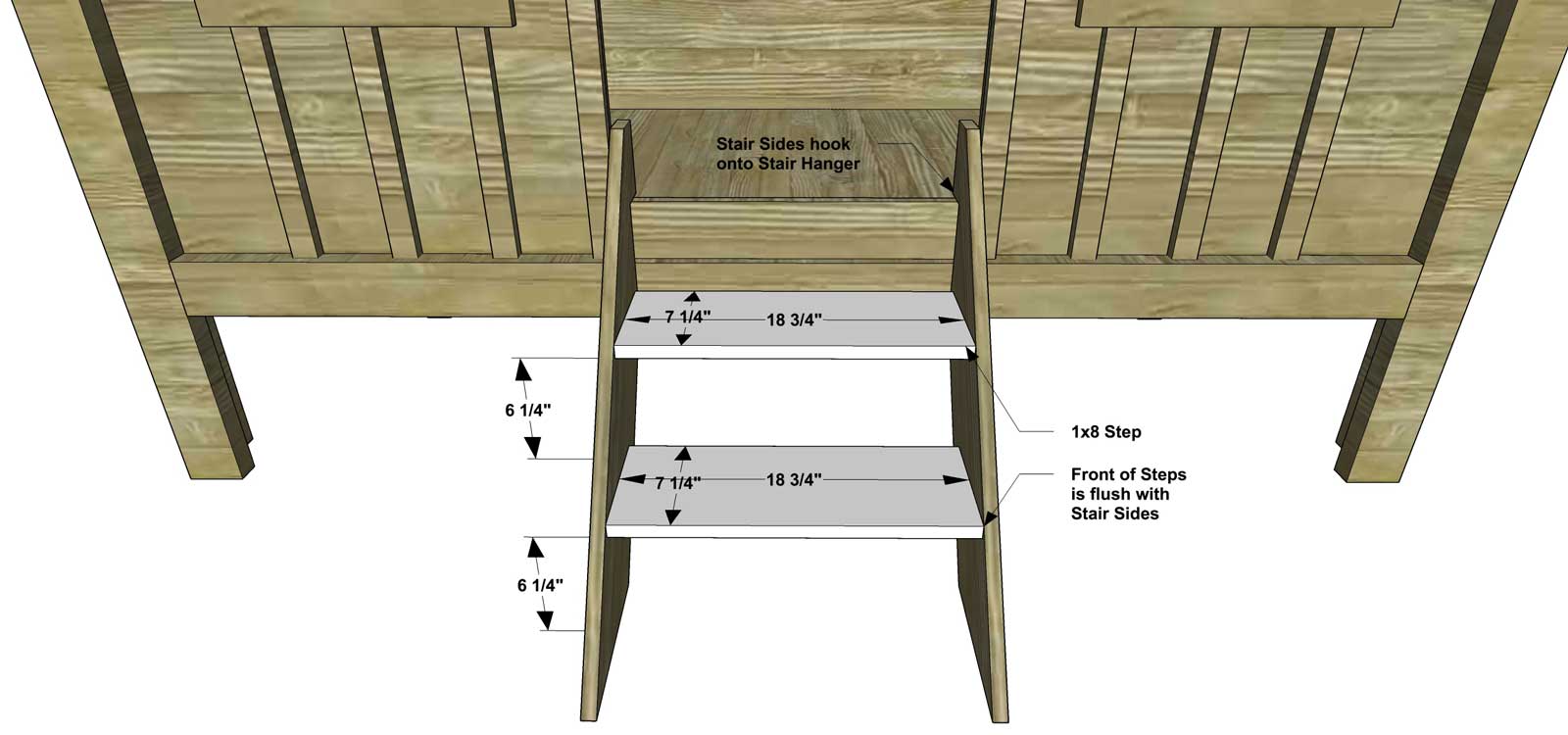

Drill pocket holes in the both ends of the steps. Assemble as shown with glue and 1-1/4” pocket screws – make sure the pocket holes face the ground when assembling. Place on the Stair Hanger as shown and climb on in!

Finishing Instructions

Fill any Screw, Nail or Pocket Holes, Sand and Finish as Desired. For Finishing Tips and Tricks visit my Finishing School
