You Can Build This! The Design Confidential DIY Furniture Plans // How to Build a Kid's Teepee Trundle Bed

Is your little warrior begging for a room upgrade? This Kid's Teepee Trundle Bed is a good looking build with plenty of added features - cutouts for making sure the coast is clear, cute trim details, and of course that trundle that tucks perfectly under the teepee! Go ahead and invite a friend - it's time for a camp out!

As with all of our plans, you are building at your own risk and you should have a firm understanding of building in general before you attempt many of our plans (some are easy as pie and perfect for beginners). With that, go forth, have fun, take lots of pictures and share them in a showcase on the site or on social media with the hashtag #builtTDCtuff and we will share our faves! Be sure to tag @thedesignconfidential on Instagram / FB and @thedesconf on Twitter / Pinterest. Don't forget... for all of our newer plans, clicking on the images will let them expand to enormous sizes with much greater clarity. The older plans may need updating so please let us know if you need one fixed!

Estimated Cost
$275-$325
Dimensions
You Can Build This! The Design Confidential DIY Furniture Plans // How to Build a Kid's Teepee Trundle Bed
Tools
Lumber

7 – 2x4 at 8’
7 – 1x4 at 8’
7 – 1x2 at 8’
4 – 3/4” plywood at 4’x8’

Materials
Cut List

2 – 3/4” plywood at 7-1/2” x 78-1/2” – Trundle Sides
2 – 3/4” plywood at 5-1/2” x 41” – Trundle Ends
1 – 3/4” plywood at 41” x 77” – Trundle Bottom
4 – 2x4 at 18” – Legs
2 – 2x4 at 42-1/2” – Bed Ends
2 – 2x4 at 84” – Bed Sides
2 – 1x2 at 78” – Cleats
2 – 2x4 at 37-7/16” – Teepee Frame A
2 – 2x4 at 41-7/16” – Teepee Frame B
2 – 2x4 at 45-1/2” – Teepee Frame C
13 – 1x4 at 42-1/2” – Slats
2 – 3/4” plywood at 39-3/8” x 45-1/2” – Teepee Wall Ends
2 – 3/4” plywood at 45-1/2” x 84” – Teepee Wall Sides
2 – 1x2 at 54-1/2” – Trim Piece A
2 – 1x2 at 45-1/16” – Trim Piece B
2 – 1x2 at 8-9/16” – Trim Piece C
2 – 1x2 at 18” – Trim Piece D
1 – 1x2 at 84” – Trim Piece E



Instructions

Before beginning to build, always check in on my site to make sure you have the most up to date set of plans, I occasionally update and change the plans to make the building process easier or to allow for less expensive purchasing of materials! Read through the entire set of instructions and all comments before beginning this project. If you print out or save plans, be sure to check in on my site to be sure you have the most up to date set of plans, as I occasionally update things for ease of building or buying. If you are new to building, read through the GETTING STARTED section and other articles found under the BUILD tab in the menu on my site, it has valuable information about how to get started, tools and techniques. If you are unfamiliar with the finishing process, visit my Finishing school for some tips and tricks for painting like a pro and for special finishing practices. Use glue to secure your joints and Consider Painting or Staining individual sections prior to assembling. This makes the paint application virtually flawless. Coat with a spray on Poly or Wipe on Poly to protect your finish and your piece and it will last for ages. Adhere to all safety standards and guidelines, and be sure you follow safety protocol throughout your build. If you are unsure about whether you are building safely, run a quick online search for the tool or technique you are using, or contact me via email or post to the forum before you move ahead. My contact info can be found in the menu of my site.

Step 1
You Can Build This! The Design Confidential DIY Furniture Plans // How to Build a Kid's Teepee Trundle Bed

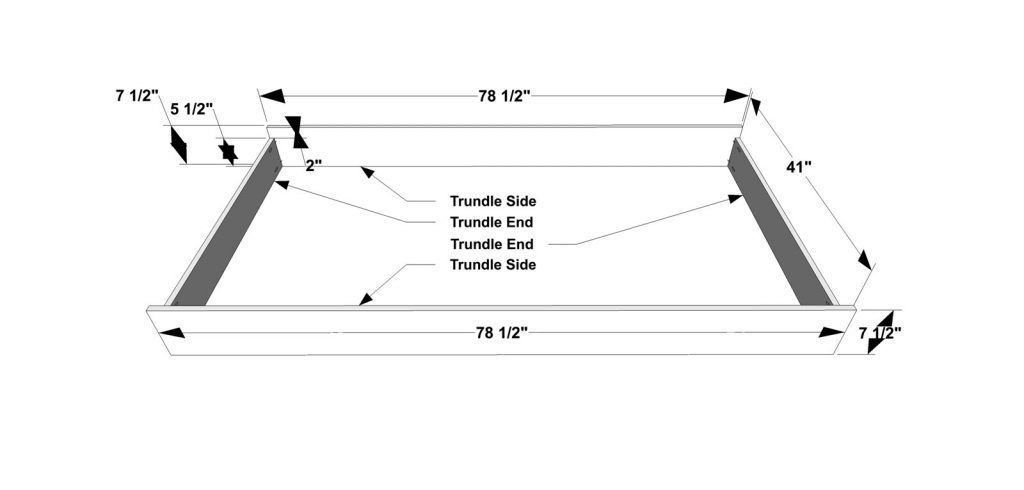

Cut the pieces for the Trundle Sides and Ends. With the Kreg jig set for 3/4” material, drill pocket holes in each end of the Trundle Ends. Assemble as shown with glue and 1-1/4” Pocket Screws.

Step 2
You Can Build This! The Design Confidential DIY Furniture Plans // How to Build a Kid's Teepee Trundle Bed

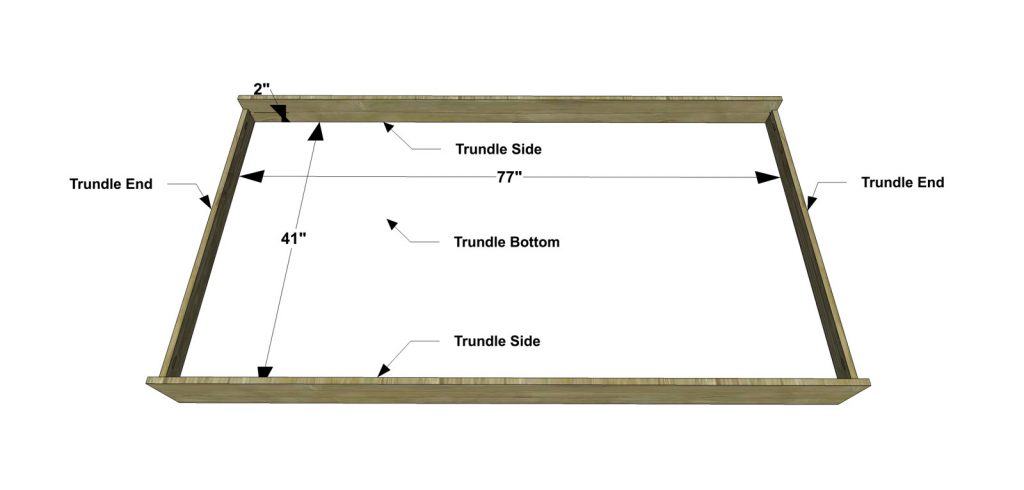

Cut the piece for the Trundle Bottom. With the Kreg jig set for 3/4” material, drill pocket holes along each side of the Trundle Bottom. Attach the Trundle Bottom (with pocket holes facing the ground) to the Trundle Sides and Ends as shown with glue and 1-1/4” Pocket Screws.

Step 3
You Can Build This! The Design Confidential DIY Furniture Plans // How to Build a Kid's Teepee Trundle Bed

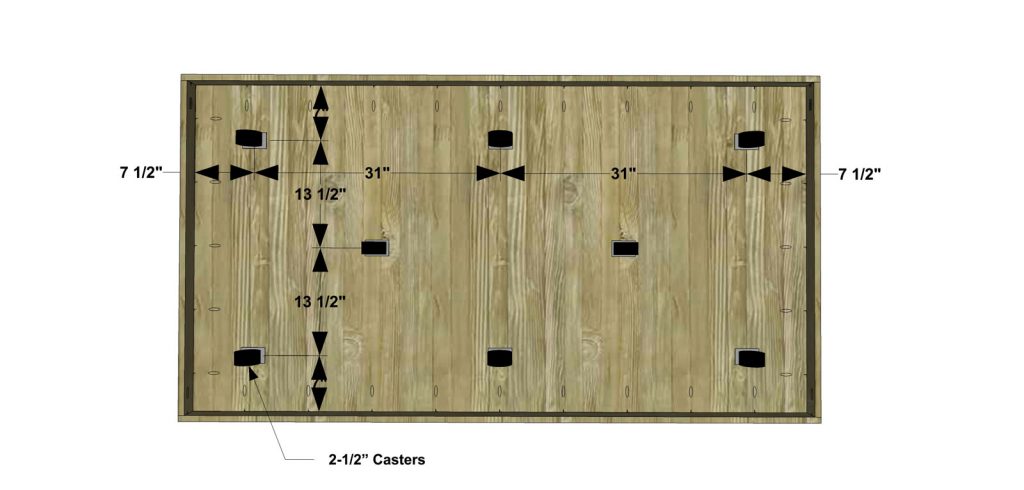

Flip over the Trundle Assembly and attach the 2-1/2” Castor Wheels as shown. Make sure to use screws that are short enough so that they do not go completely through the Trundle Bottom.

Step 4
You Can Build This! The Design Confidential DIY Furniture Plans // How to Build a Kid's Teepee Trundle Bed
You Can Build This! The Design Confidential DIY Furniture Plans // How to Build a Kid's Teepee Trundle Bed

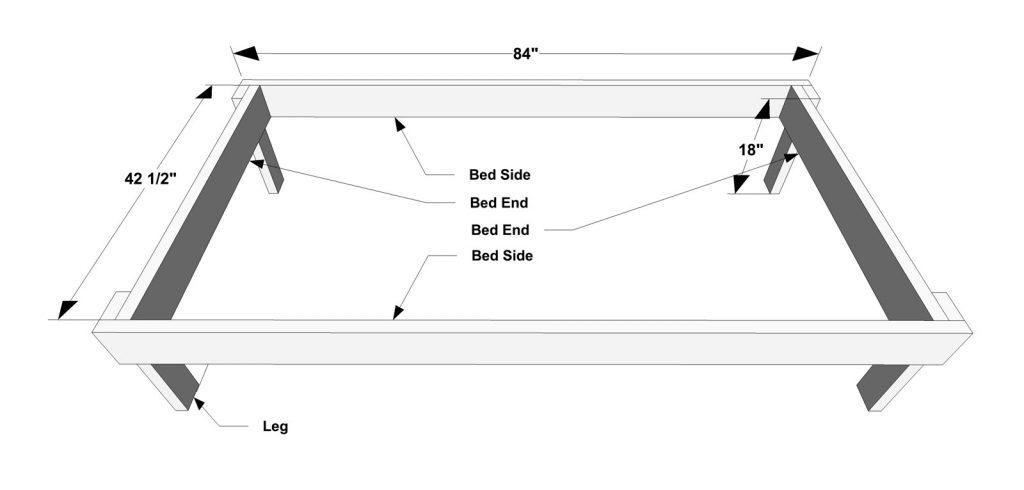

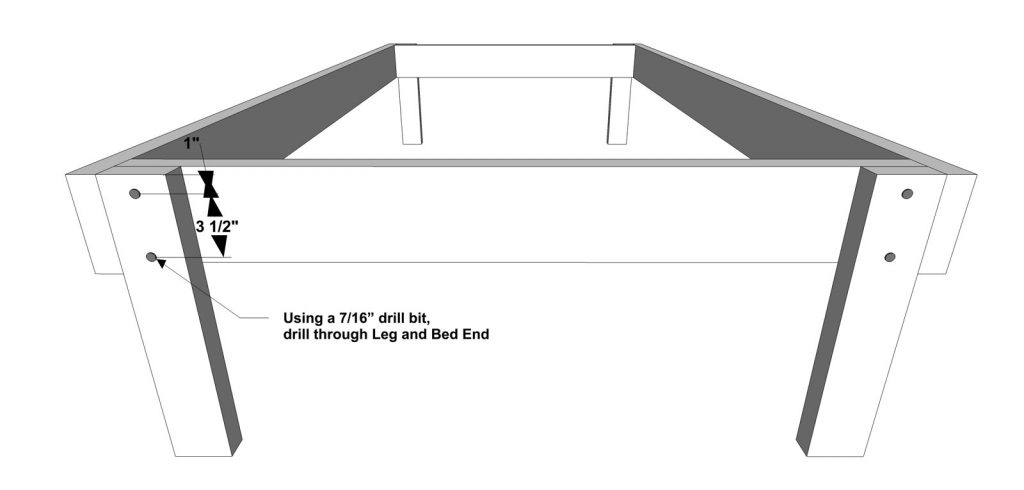

Cut the pieces for the Legs, Bed Sides and Bed Ends. Clamp the Leg and Bed Ends together as shown. With a 7/16” drill bit, drill through the Legs and Bed Ends. Release the clamps. Next, with the Kreg jig set for 1-1/2” material, drill pocket holes at each end of the Bed Ends. Attach the Bed Sides to the Bed Ends with glue and 2-1/2” pocket screws, leaving a 1-1/2” space at the end for the Legs. Assemble the Legs to the Bed Ends as shown with 5/16” carriage bolts, washers, and nuts. For added stability, install corner brackets at each inside corner of the bed.

Step 5
You Can Build This! The Design Confidential DIY Furniture Plans // How to Build a Kid's Teepee Trundle Bed

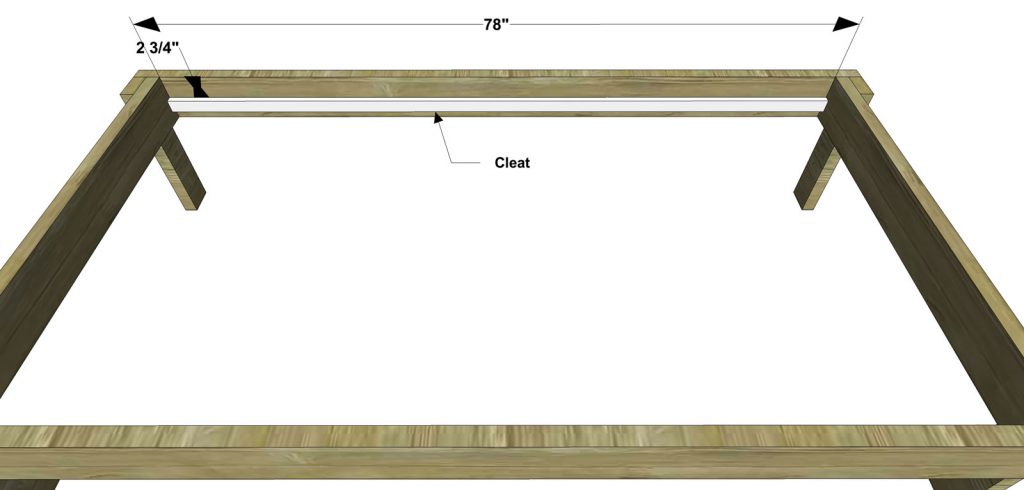

Cut the pieces for the Cleats. Attach the Cleats to the Bed Sides as shown with 2” wood screws. If you chose to install corner brackets at each inside corner of the Bed, adjust Cleat length to accommodate.

Step 6
You Can Build This! The Design Confidential DIY Furniture Plans // How to Build a Kid's Teepee Trundle Bed
You Can Build This! The Design Confidential DIY Furniture Plans // How to Build a Kid's Teepee Trundle Bed

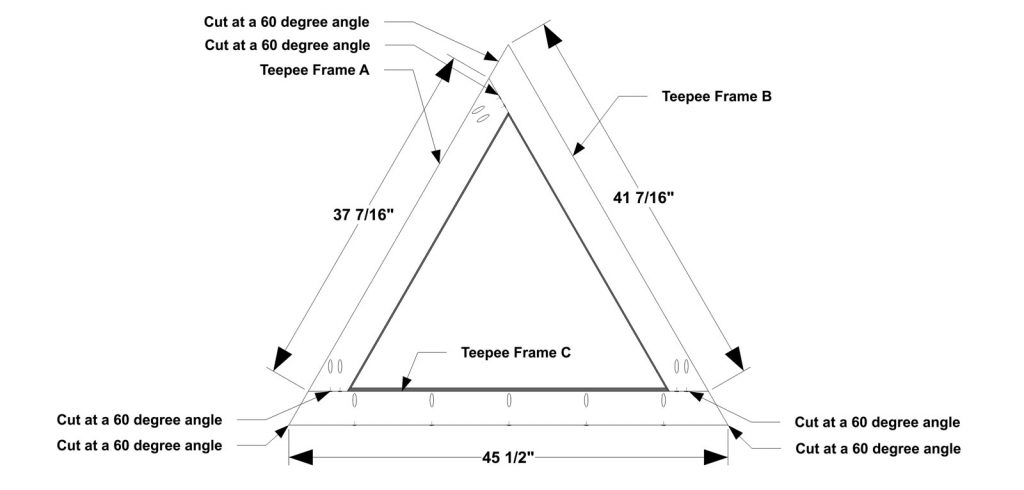

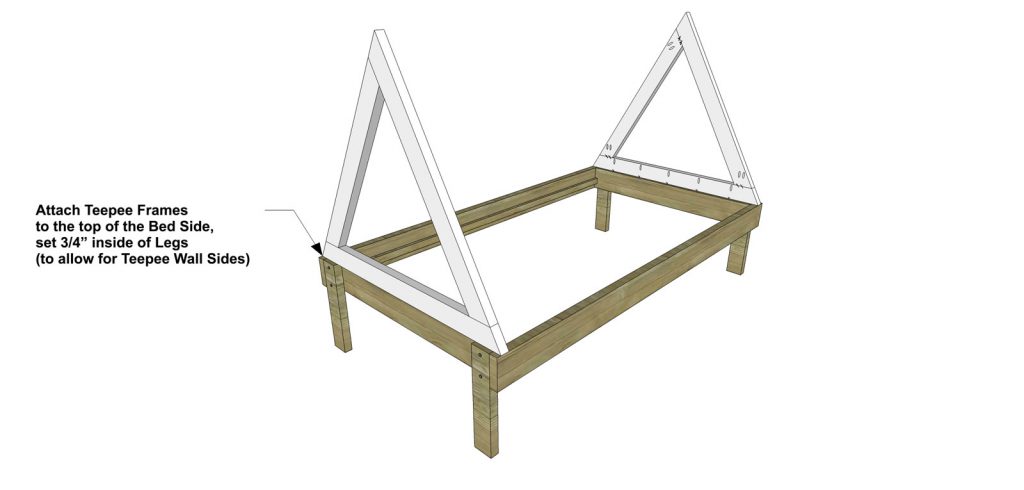

Cut the Teepee Frame pieces. With the Kreg jig set for 1-1/2” material, drill pocket holes at each end of Teepee Frame A, one end of Teepee Frame B, and along the bottom edge of Teepee Frame C. Assemble as shown with glue and 2-1/2” pocket screws. Repeat this step twice, once for each end of the bed. Attach the Teepee Frame assemblies to the Bed assembly as shown with glue and 2-1/2” pocket screws.

Step 7
You Can Build This! The Design Confidential DIY Furniture Plans // How to Build a Kid's Teepee Trundle Bed

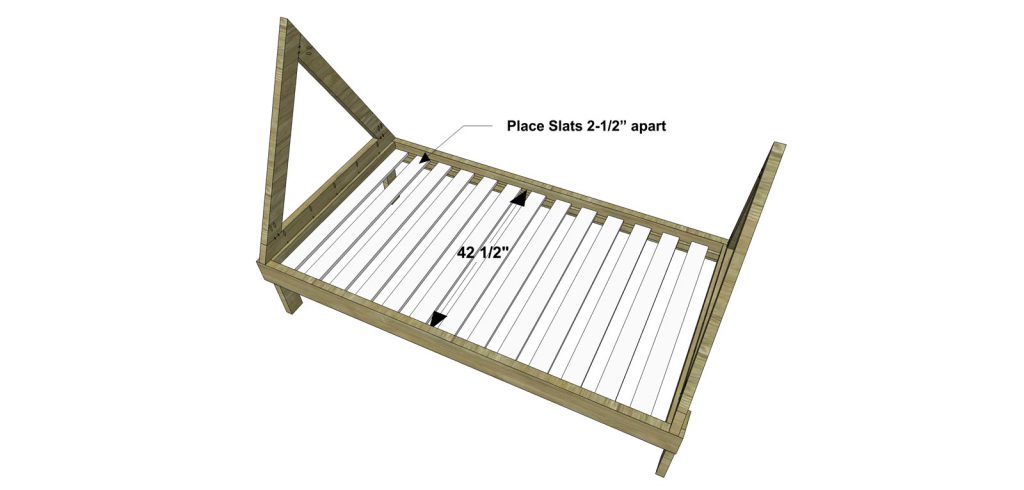

Cut the pieces for Slats. Attach the Bed Slats to the Cleats with 1-1/2” wood screws. Space the Slats approximately 2-1/2” apart from one another.

Step 8
You Can Build This! The Design Confidential DIY Furniture Plans // How to Build a Kid's Teepee Trundle Bed
You Can Build This! The Design Confidential DIY Furniture Plans // How to Build a Kid's Teepee Trundle Bed

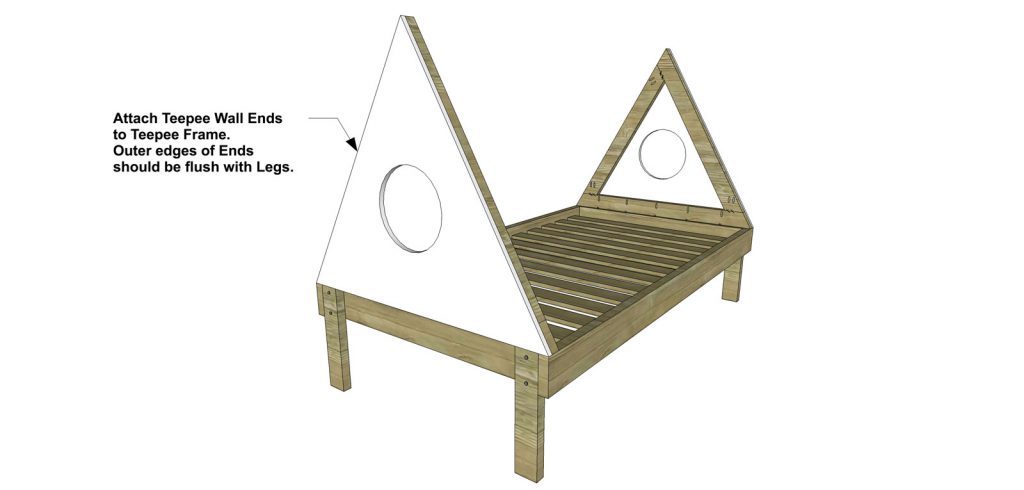

Cut the piece for the Teepee Wall End. Cut the opening for the Teepee Wall End.  Remember to drill pilot holes slightly larger than your jigsaw blade for these inside cuts. Repeat this step twice, once for each end of the bed. Attach the Teepee Wall Ends as shown with glue and 1-1/2” wood screws.

Step 9
You Can Build This! The Design Confidential DIY Furniture Plans // How to Build a Kid's Teepee Trundle Bed
You Can Build This! The Design Confidential DIY Furniture Plans // How to Build a Kid's Teepee Trundle Bed

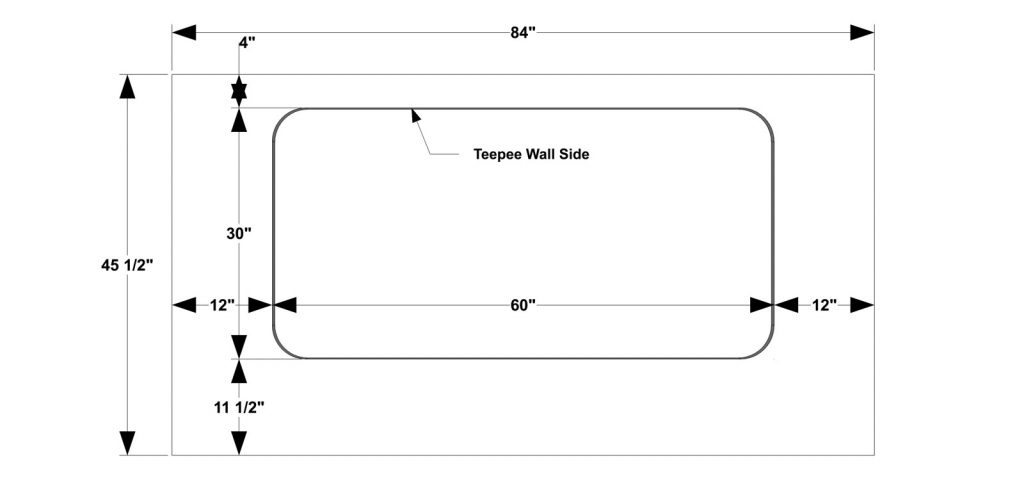

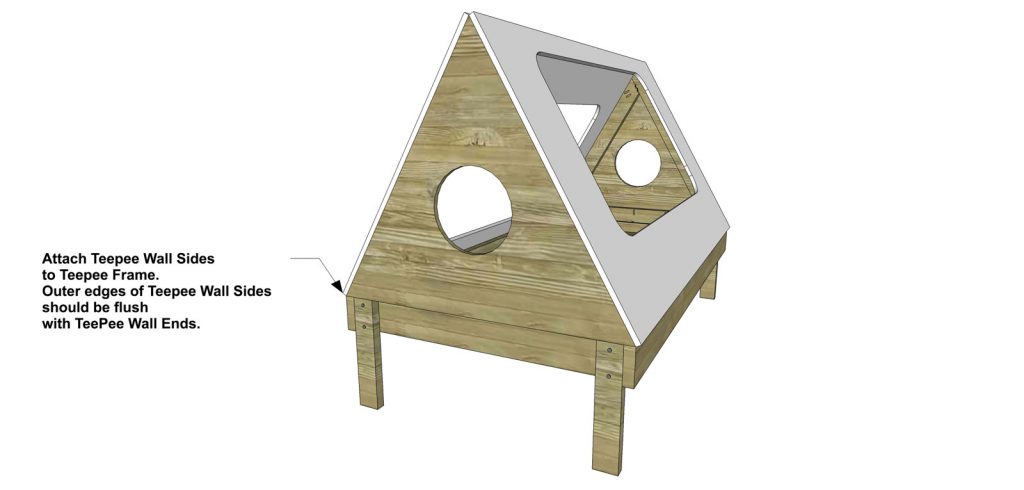

Cut the piece for the Teepee Wall Side. Cut the opening for the Teepee Wall Side.  Remember to drill pilot holes slightly larger than your jigsaw blade for these inside cuts. Repeat this step twice, once for each side of the bed. Attach the Teepee Wall Sides as shown with glue and 1-1/2” wood screws. Note that one side is installed upside down from the other.

Step 10
You Can Build This! The Design Confidential DIY Furniture Plans // How to Build a Kid's Teepee Trundle Bed

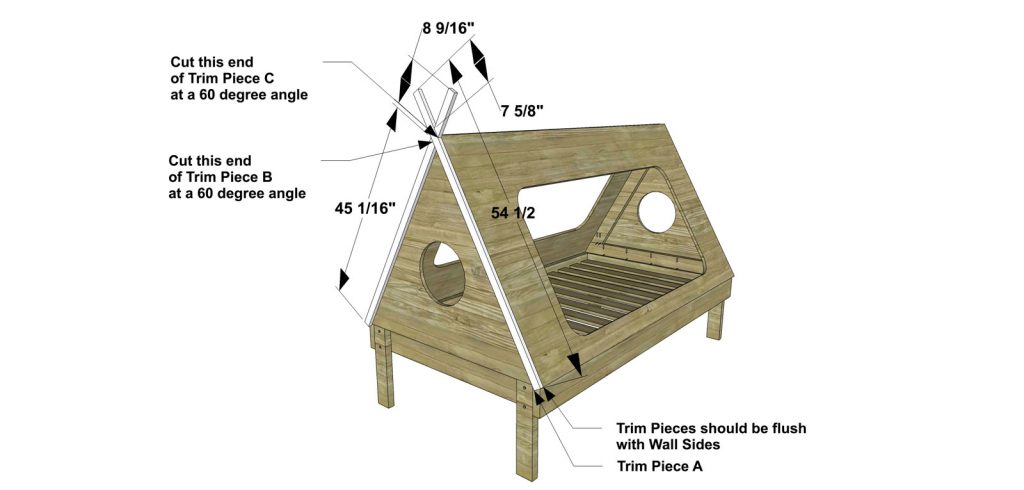

Cut the pieces for the Trim.  With the Kreg jig set for 3/4” material, drill pocket holes at the angled end of Trim Piece C. Attach the Trim Pieces to the Wall Sides and Ends as shown with glue and 1-1/4” brad nails. Attach Trim Piece C to Trim Piece A as shown with glue and 1-1/4” pocket screws. Repeat this step twice, once for each end of the bed.

Step 11

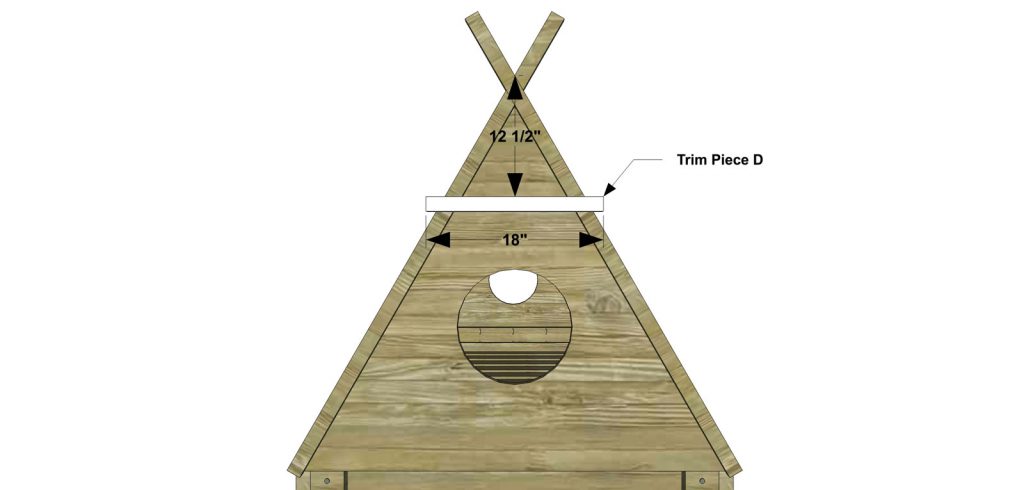

Cut Trim Piece D.  Attach Trim Piece D to the Trim Pieces as shown with glue and 1-1/4” brad nails. Repeat this step twice, once for each end of the bed.

You Can Build This! The Design Confidential DIY Furniture Plans // How to Build a Kid's Teepee Trundle Bed
Step 12
You Can Build This! The Design Confidential DIY Furniture Plans // How to Build a Kid's Teepee Trundle Bed

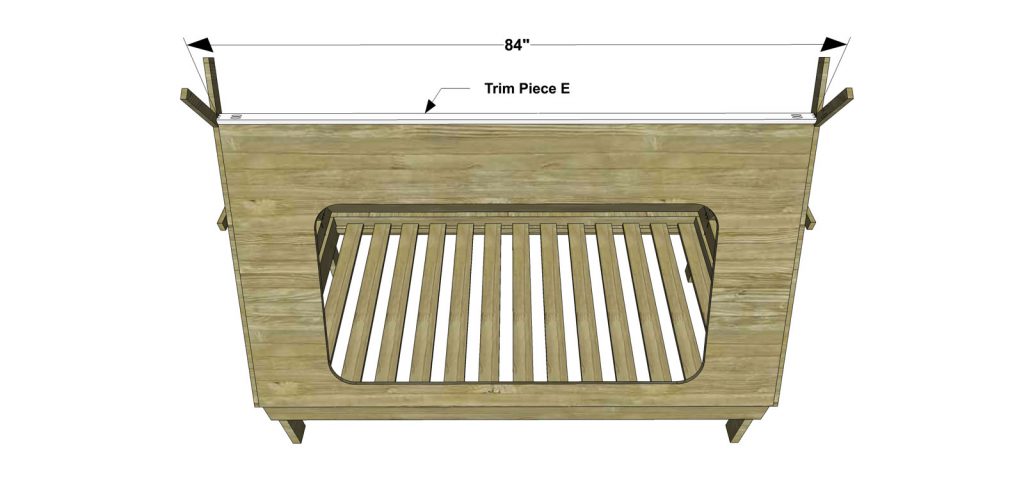

Cut Trim Piece E.  With the Kreg jig set for 1-1/2” material, drill pocket holes at each end of Trim Piece E. Attach Trim Piece E to the Teepee Bed as shown with glue and 1-1/4” brad nails. This Trim Piece may do just fine with only the use of brad nails – you may be able to skip the pocket holes here.

Finishing Instructions

Fill any Screw, Nail or Pocket Holes, Sand and Finish as Desired. For Finishing Tips and Tricks visit my Finishing School
