This piece continues our Chesapeake Collection and takes it to a whole new level! Yay for outdoor lounging! I need to get myself a bigger backyard so I can build myself a resort style outdoor room. The fabulous thing about this chaise lounge is that it is so beautiful, you can use it without a cushion if you prefer. I did construct it according to the Potterybarn dimensions so that their cushions and other standard lounge cushions will fit and work well.

Estimated Cost

$25-$50

Dimensions

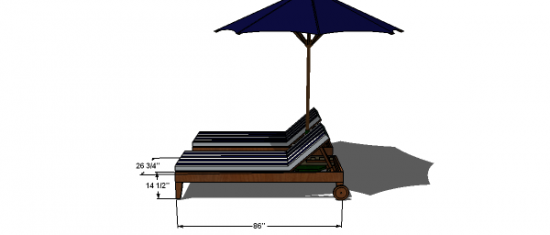

Dimensions for This Project
Tools

Tape Measure

Sander

Drill and a hole saw or spade bit

Kreg Jigs® (pocket hole system)– optional and you can secure using wood screws and a countersink bit or Finish Nails

Jig Saw

Lumber

6 – 1x2 at 8’

9 – 1x3 at 8’

2 – 1x6 at 10’

1 – 1x8 at 6’ – optional for wheels

1 – 2x2 at 8’

1 – 2x4 at 6’

1 – 3/4” Dowel at 3’

Materials

1 1/4” Pocket Hole Screws

2 1/2” Pocket Hole Screws

1 1/4” Wood Screws

2 – 6” or 8” wheels optional and you can make your own from a piece of 3/4” stock by carving a circle from a 1x8 or a 1x10

4 small hinges – butt hinges will work perfectly

Wood Glue

Wood Filler

Sanding Supplies

Finishing Supplies

Cut List

2 – 1x6 at 83 3/4" Frame

2 – 1x6 at 26” Frame

4 – 1x2 at 44 1/2” Interior Frame

3 – 1x2 at 26” Interior Frame

2 – 1x2 at 28 1/2” Vertical Back Rest Supports

1 – 1x2 at 25 1/2” Back Rest Support (Lower)

4 – 1x2 at 2 1/2” Back Rest Stops

2 – 1x2 at 2” Back Rest Stop

2 – 1x2 at 4 1/2” Back Rest Stop

2 – 1x2 at 14 1/2” Lower Back Rest Bar

2 – 1x2 at 24 1/2” Leg Stretchers

30 – 1x3 at 20 1/2” Seat Slats (Lower 17 and Back Rest Portion 13)

2 – 1x3 at 46 3/4” Seat Outside Runner Boards

2 – 1x3 at 35 1/2” Back Rest Outside Runner Boards

1 – 2x2 at 26” Back Rest Stand

1 – 2x2 at 11” Back Rest Stand

2 – 2x2 at 21 1/4” Back Rest Stand

2 – 2x4 at 9” Front Legs

2 – 2x4 at 7” Back Legs

1 – 3/4” Dowel Rod at 29” Axel

2 – 1x10 or 1x8 at an 8” diameter circle (can also be a 7 1/4” diameter, this will depend on what you choose to carve from)

Instructions

This project has some options for the wheel section for you to decide on. You can opt to skip wheels altogether in which case you will make all 4 legs the same length and skip the last 2 steps in this post. You can also opt to either purchase wheels, or create your own wheels (I would recommend giving this a try) in which choice you will simply carve circular shapes from 3/4” stock and drill a hole halfway into the wheels in the center to hold the axel rod (dowel). Easy peasy…

Consider using a specie of wood suitable for outdoor use such as cedar, redwood, teak, etc., and be sure you choose galvanized or coated hardware to avoid rust. Be sure you finishing materials and products are suitable for outdoor use as well.

Read through the entire set of instructions and all comments before beginning this project. If you print out or save plans, be sure to check in on my site to be sure you have the most up to date set of plans, as I occasionally update things for ease of building or buying. If you are new to building, read through the GETTING STARTED section and other articles found under the BUILD tab in the menu on my site, it has valuable information about how to get started, tools and techniques. If you are unfamiliar with the finishing process, visit my Finishing school for some tips and tricks for painting like a pro and for special finishing practices.

Use glue to secure your joints and Consider Painting or Staining individual sections prior to assembling. This makes the paint application virtually flawless. Coat with a spray on Poly or Wipe on Poly to protect your finish and your piece and it will last for ages. Adhere to all safety standards and guidelines, and be sure you follow safety protocol throughout your build. If you are unsure about whether you are building safely, run a quick online search for the tool or technique you are using, or contact me via email or post to the forum before you move ahead. My contact info can be found on the main page of my site.

Step 1

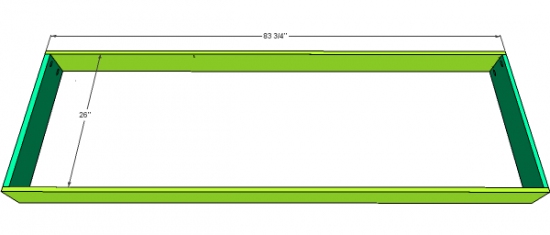

Build the Frame: Use your Kreg Jigs® set for 3/4” stock and your 1 1/4” pocket hole screws and glue.

Step 1
Step 2

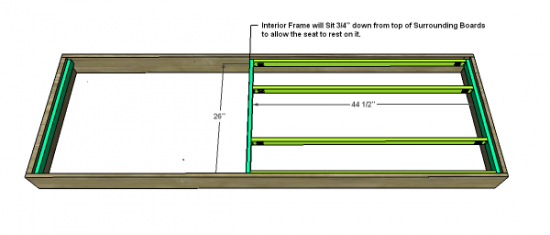

Add the Interior Frame: Build using your Kreg Jigs® set for 3/4” stock and your 1 1/4” pocket hole screws and glue, then fasten to the Frame using 1 1/4” Wood Screws and glue. Place the Interior Frame 3/4” from the top edge of the Frame to allow for the Seat Slats to rest flush in the next step.

Step 2
Step 3

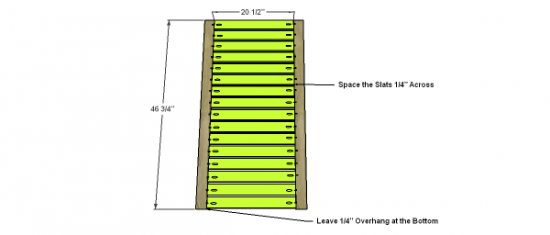

Construct the Lower Seat: Fasten the Slats in place using your Kreg Jigs®set for 3/4” stock and your 1 1/4” pocket hole screws and glue to fasten the slats to the Outside Seat Boards. Leave 1/4” Overhang at one end of the Seat (the end that will sit in the center of the lounger and connect to the back rest).

Step 3
Step 4

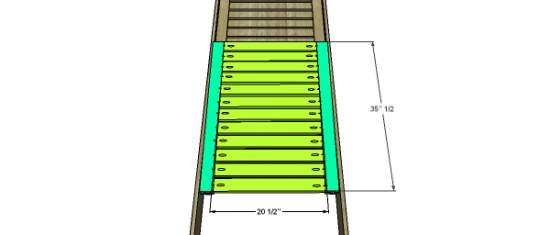

Construct the Back Rest: Use your Kreg Jigs®set for 3/4” stock and your 1 1/4” pocket hole screws and glue to construct the back rest portion of the seat, then attach to the Lower Seat using standard butt hinges.

Step 4
Step 5

Add the Back Rest Supports: Use your Kreg Jigs®set for 3/4” stock and your 1 1/4” pocket hole screws and glue to attach your supports to the back rest. They will attach in a vertical position to the back rest and should be spaced 11 1/4” apart (yellow bars) to adequately allow for the back rest stand in the next step. The lower support (blue), will simply attach in the center of the lowest board to provide extra support for the back rest.

Step 5
Step 6

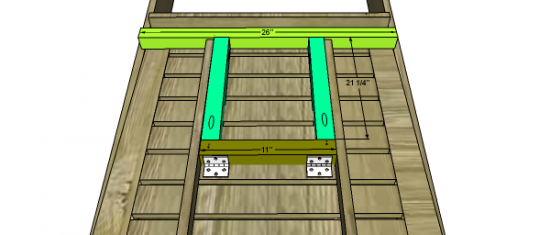

Construct the Back Rest Stand: Use your Kreg Jigs® set for 1 1/2” stock and your 2 1/2” pocket hole screws and glue to construct the stand. It will be something of a T Shape, only with 2 legs and a bottom, so not really a T Shape at all, but you get the point. Once you have fastened the stand together, attach it to the Back Rest using standard butt hinges as shown (it’s shown in an attached position, but please note that other than with the hinges, it doesn’t attach to the back rest itself, it needs to be able to move and rotate) .

Step 6
Step 7

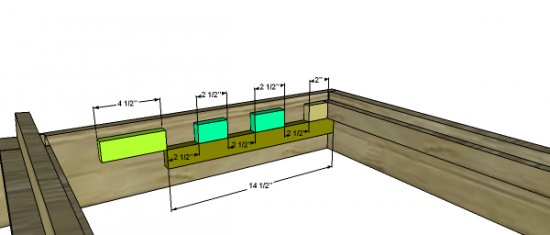

Add the Back Rest Stops: Use your 1 1/4” Wood Screws and glue to fasten the 1x2 sections in place. You will place the stops 3/4” from the top edge just as you did with the interior frame, and each small section should be place about 2 1/2” from the next small section, but you are free to place these as you see fit for allowing the back rest to sit at comfortable positions in recline. Just be sure to allow for adequate space between the last stop (the 4 1/2” section in yellow) and the seat itself so that when the back rest is in the completely flat position there is plenty of room for the back rest stand to sit. The lower stop bar, will sit just below the actual back rest stops to act as a stop for the stops, so to speak, and will sit under the top bar of the interior frame and rest against the top portion of the frame itself.

Step 7
Step 8

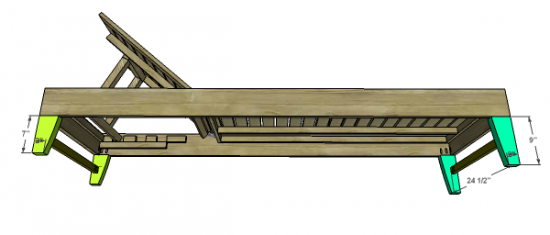

Create the Legs and Attach them: To carve the shape for the legs, begin with a 2x4 and carve the curve from the top edge down to the location 2” in from the outside. The front and back legs will be different heights to allow for the wheels in the next steps. If you prefer to skip the wheels, you can make all 4 legs the same length and stop after this step! This is up to you.

Step 8
Step 9

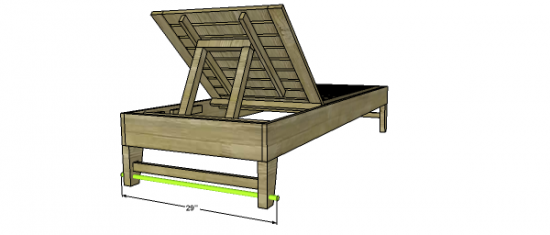

Add the Wheel Axle: This is really simple and you will quite simply use a drill bit to create a hole in the back lets at about 1 1/2” from the bottom of the leg and centered at the location. The hole needs to be just slightly bigger in diameter than the dowel you are using for your axel. So if you choose a 3/4” dowel rod, then a hole at 7/8” or so should be perfect. If you want to use a 3/4” hole saw or spade bit, and simply give it a wiggle while you drill to make that opening a tad larger, that will work also, though not as technical sounding, I realize! ha! Do not glue the rod, simply insert and move the the next step.

Step 9
Step 10

Create and Add the Wheels: I would consider creating your own wheels for this, since purchasing wooden or even rubberized wheels can be expensive. Just trace out a circle and use your jig saw to carve it out. Sand to perfect the roundness. Then drill a hole the same size diameter as your dowel rod, or just a hair larger, about half way through (into but not through) the wheel. **Do not drill the hole all the way through! To attach the wheels, add glue to the hole you just drilled into the wheels, and then use a mallet to hammer the wheels onto the axel rods and allow the glue to set and dry.

Step 10
Finishing Instructions

Fill any Screw Holes, Sand and Finish as Desired!
