Free DIY Furniture Plans // How to Build a Mid Century Modern Side Table

08.18.14 By //
You Can Build This! Easy DIY Furniture Plans from The Design Confidential with Complete Instructions on How to Build a Mid Century Side Table via @thedesconf

I think a Side Table with storage is a perfectly versatile and adaptable piece of furniture. You might use this gorgeous gal as a nightstand, or next to your sofa, and perhaps to create a fabulous design moment on an otherwise empty wall. Mix it up and try this cute friend in a space you might not typically put a side table. You just might love it… Xx… Rayan

As with all of our plans, you are building at your own risk and you should have a firm understanding of building in general before you attempt many of our plans (some are easy as pie and perfect for beginners). With that, go forth, have fun, take lots of pictures and share them in a showcase on the site or on social media with the hashtag #builtTDCtuff and we will share our faves! Be sure to tag @thedesignconfidential on Instagram / FB and @thedesconf on Twitter / Pinterest. If you are a blogger and you post about your build, don’t forget to include a link to your post on your showcase here. Don’t forget… for all of our newer plans, clicking on the images will let them expand to enormous sizes with much greater clarity. The older plans may need updating so please let us know if you need one fixed!

$75-$100
You Can Build This! Easy DIY Furniture Plans from The Design Confidential with Complete Instructions on How to Build a Mid Century Side Table via @thedesconf
  • 1 – 3/4” sheet of plywood at 4’ x 8’
  • 1 – 3/4” sheet of plywood at 2’ x 4’
  • 1 – 2×4 at 8’
  • 1 – 1×2 at 8’
  • 1 – 3/4” plywood at 22” x 20” – Table Bottom
  • 2 – 3/4” plywood at 20” x 19” – Table Sides
  • 1 – 3/4” plywood at 20-1/2” x 17-1/2” – Table Back
  • 2 – 3/4” plywood at 6” x 20-1/2” – Drawer Dividers
  • 1 – 3/4” plywood at 20” x 20-1/2” – Table Top
  • 1 – 3/4” plywood at 20-3/4” x 22” – Finished Table Top
  • 4 – 2×4 at 3-1/2” x 11-1/4” – Table Legs
  • 2 – 1×2 at 12” – Front and Back Stretchers
  • 2 – 1×2 at 10” – Side Stretchers
  • 1 – 3/4” plywood at 19-1/2” x 16-1/2” – Top Drawer Bottom
  • 2 – 3/4” plywood at 2-3/4” x 16-1/2” – Top Drawer Sides
  • 2 – 3/4” plywood at 19-1/2” x 3-1/2” – Top Drawer Frontsand Backs
  • 1 – 3/4” plywood at 22” x 4-3/4” – Top Drawer FinishedFront
  • 2 – 3/4” plywood at 19-1/2” x 16-1/2” – Bottom Drawer Bottoms
  • 4 – 3/4” plywood at 16-1/2” x 4-3/4” – Bottom Drawer Sides
  • 4 – 3/4” plywood at 19-1/2” x 5-1/2” – Bottom Drawer Fronts and Backs
  • 2 – 3/4” plywood at 22” x 6-1/2” – Bottom Drawer Finished Fronts

Before beginning to build, always check in on my site to make sure you have the most up to date set of plans, I occasionally update and change the plans to make the building process easier or to allow for less expensive purchasing of materials! Read through the entire set of instructions and all comments before beginning this project. If you print out or save plans, be sure to check in on my site to be sure you have the most up to date set of plans, as I occasionally update things for ease of building or buying. If you are new to building, read through the GETTING STARTED section and other articles found under the BUILD tab in the menu on my site, it has valuable information about how to get started, tools and techniques. If you are unfamiliar with the finishing process, visit my Finishing school for some tips and tricks for painting like a pro and for special finishing practices. Use glue to secure your joints and Consider Painting or Staining individual sections prior to assembling. This makes the paint application virtually flawless. Coat with a spray on Poly or Wipe on Poly to protect your finish and your piece and it will last for ages. Adhere to all safety standards and guidelines, and be sure you follow safety protocol throughout your build. If you are unsure about whether you are building safely, run a quick online search for the tool or technique you are using, or contact me via email or post to the forum before you move ahead. My contact info can be found in the menu of my site.

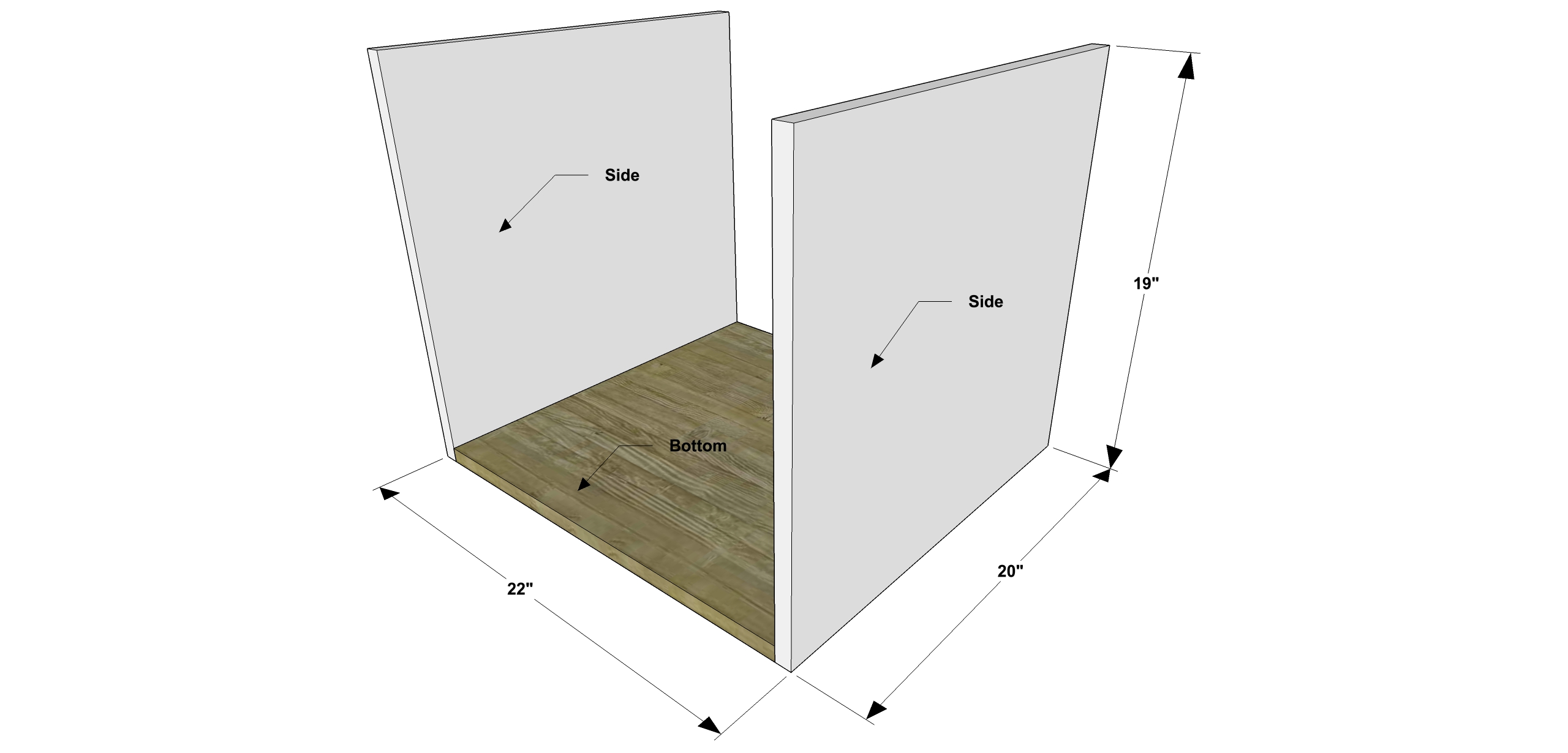

Cut out the Table Bottom and Sides and attach as shown with glue and pocket screws.

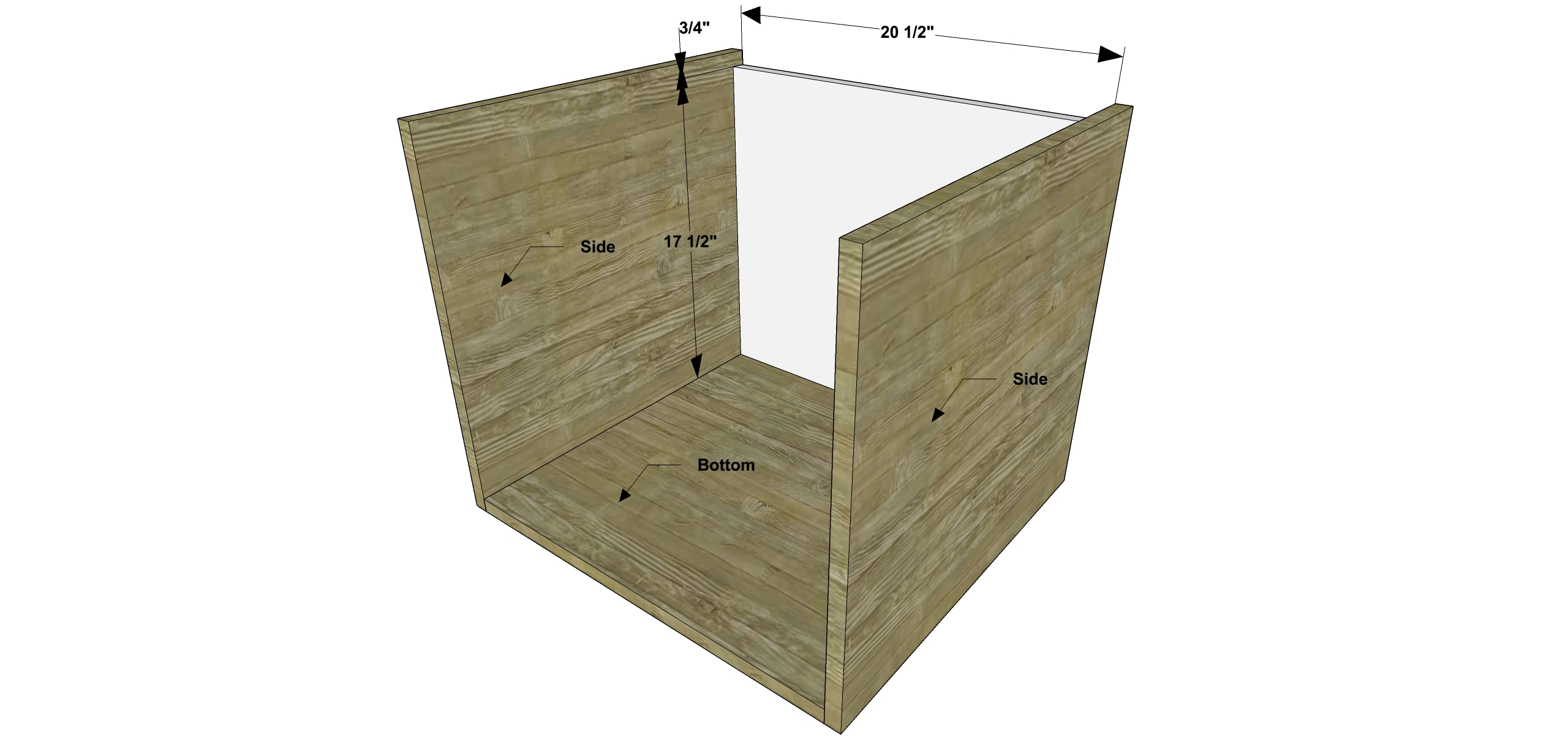

Cut out the Table Back and attach as shown to the Table Sides and Bottom with glue and pocket screws. When the Back is in place, it will leave a 3/4” space at the top for the Table Top.

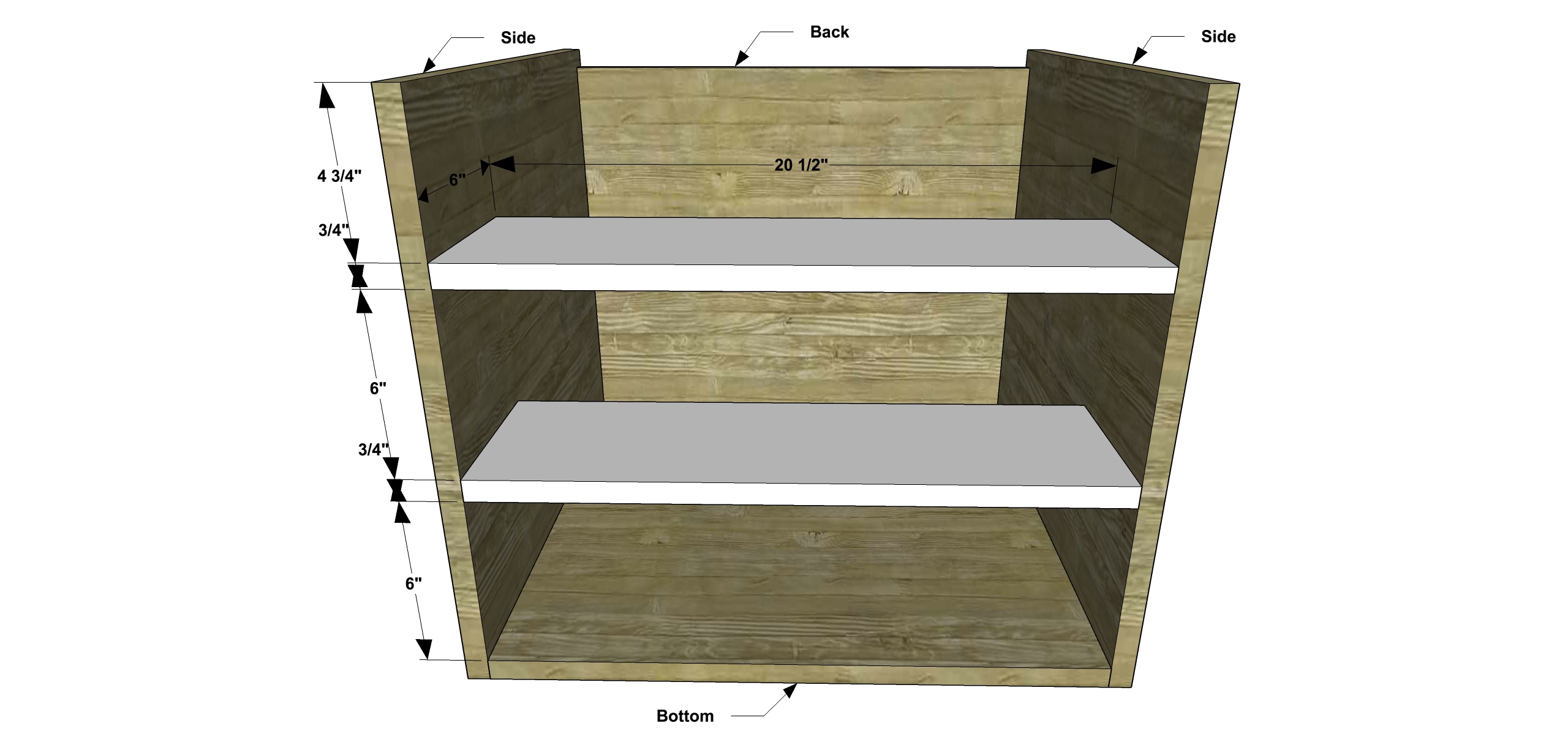

Cut out the Drawer Dividers and attach as shown on the front edge of the Table Sides with glue and pocket screws. There will be a 4-3/4” space above the Top Drawer Divider and a 6” space above and below the Bottom Drawer Divider.

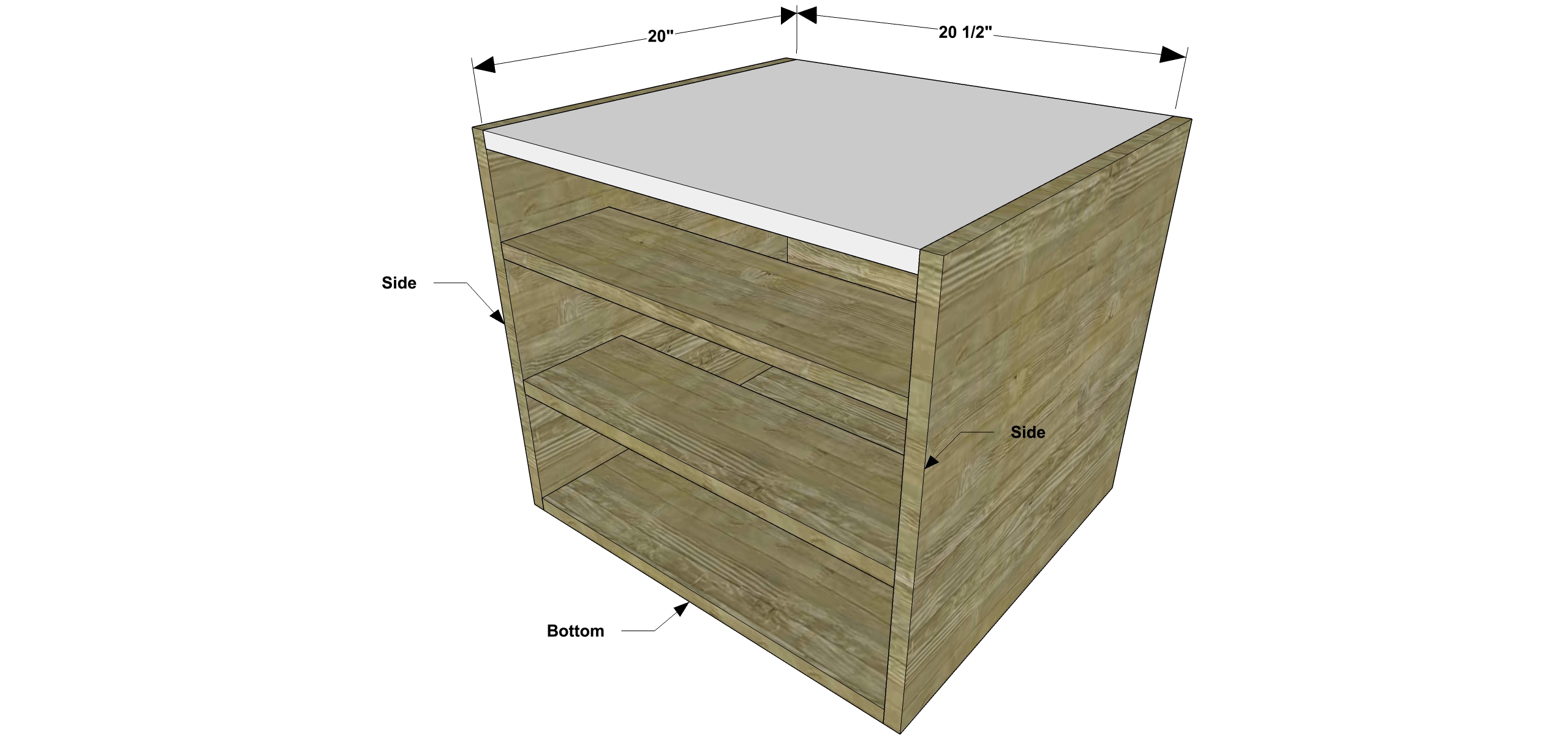

Cut and attach the Table Top to the Table Sides and Table Back with glue and pocket screws. The back of the Table Top will rest on top of the Table Back.

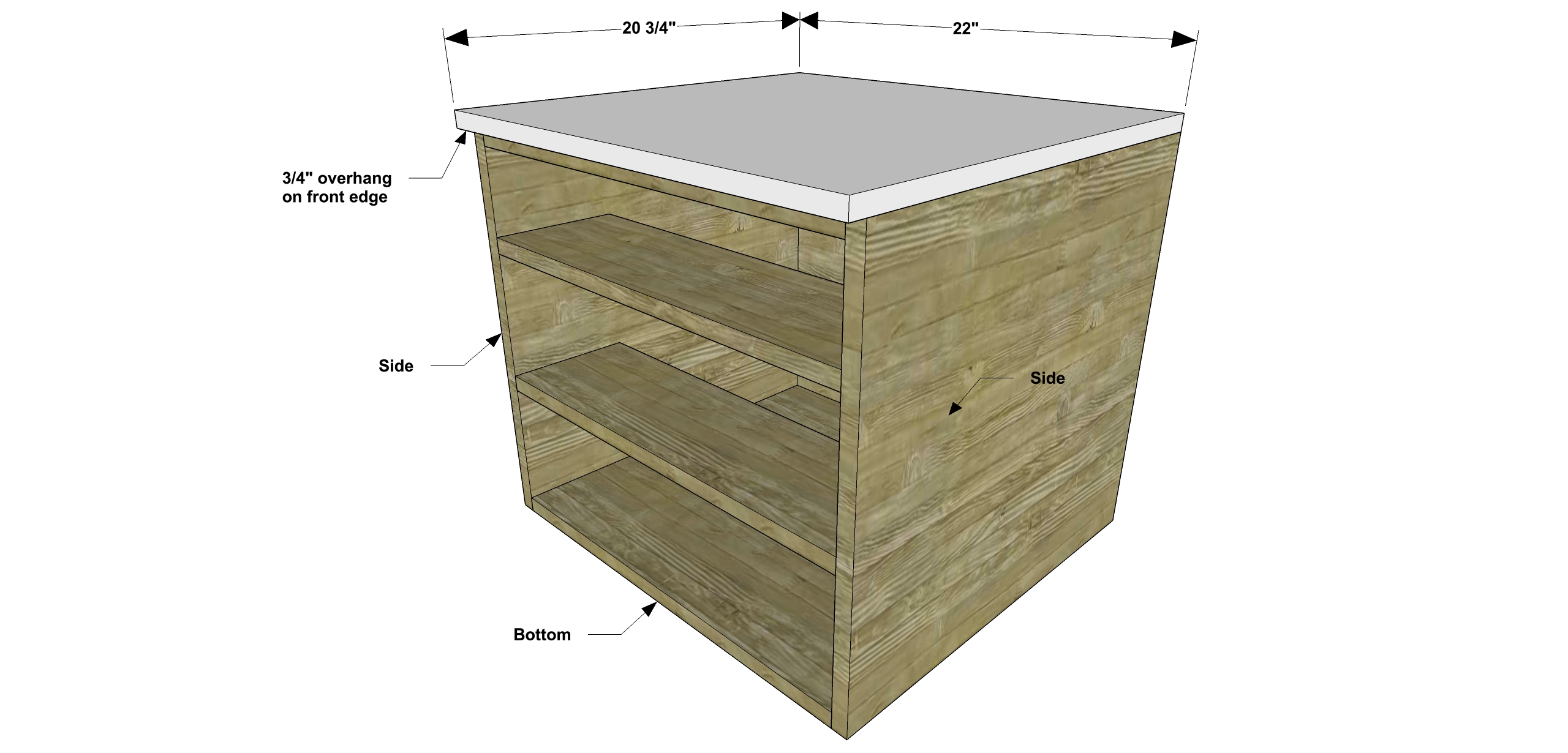

Cut and attach the Finished Table Top to the Table Top as shown with glue and pocket screws. The front of the Finished Table Top will have a 3/4” overhang.

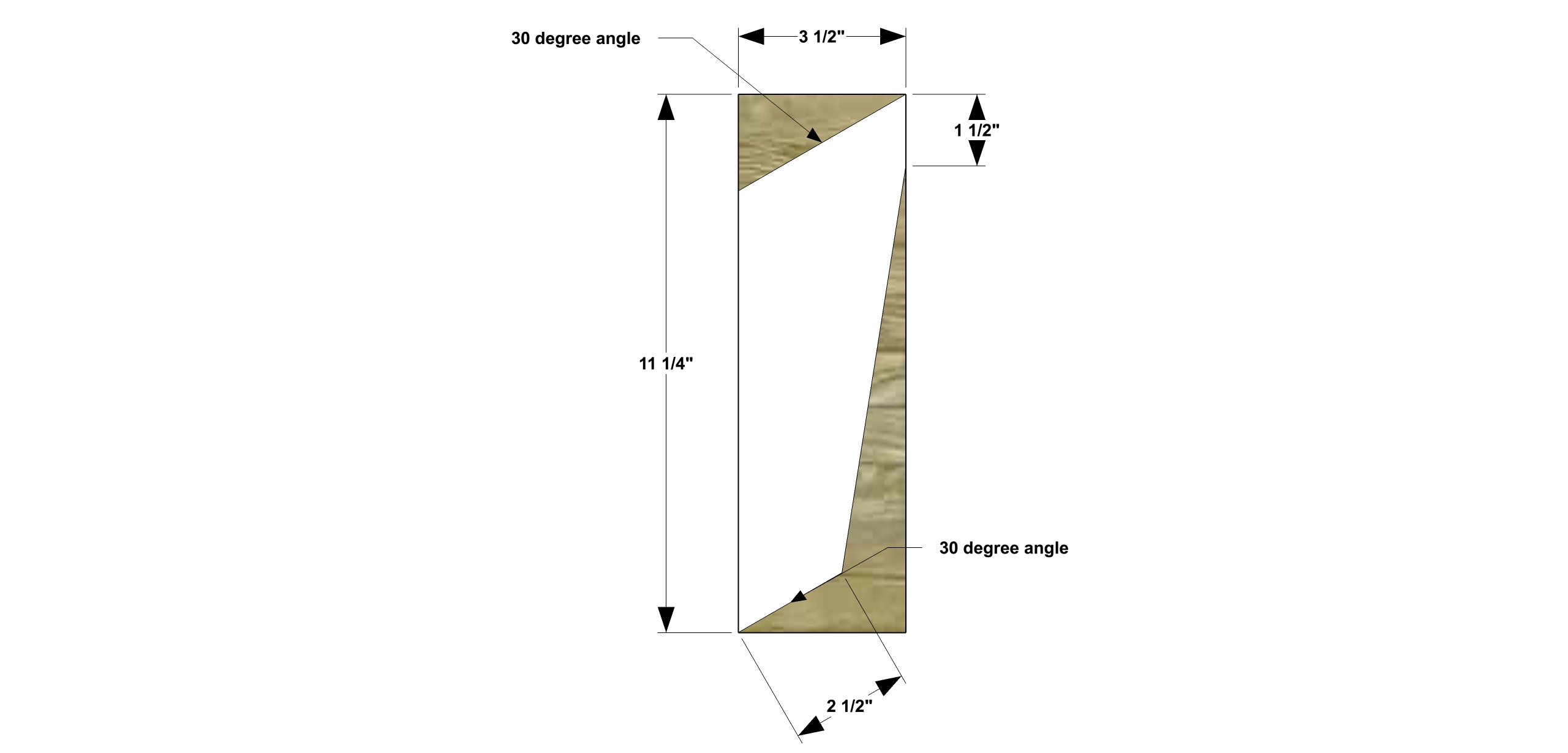

Time to cut out the Table Legs! You will need 4 of these exactly the same. This diagram shows you how to mark out the shape you need for the Table Legs. Use your circular saw to cut this out. If you simply connect the dots between the dimensions outlined below and use a circular saw to make these cuts, you won’t have to worry about the actual angle for each corner.

Cut the pieces for the Stretchers. Cut a 45 degree angle in each end of the long Stretchers and the short Stretchers. Also drill pocket holes along one long edge of each piece (to attach to the bottom of the Table). Secure to the Legs (the top of the Stretchers will be flush with the top of the Legs) using glue and 1-1/4” brad nails.

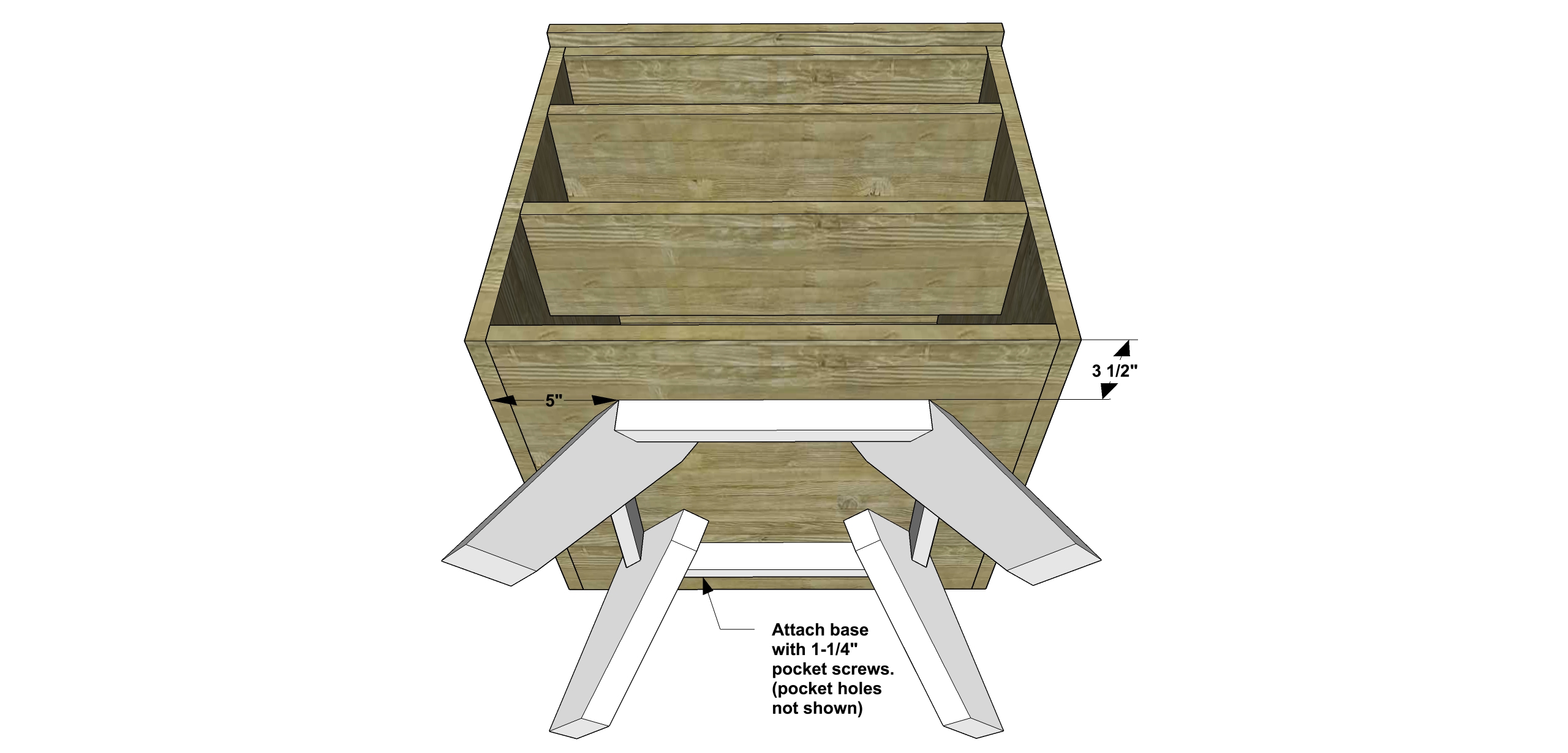

Position the base frame on the bottom of the Table. It will be located 5” in from each side, and 3-1/2” from the front edge. Secure using glue and 1-1/4” pocket hole screws.

And now on to the drawers!

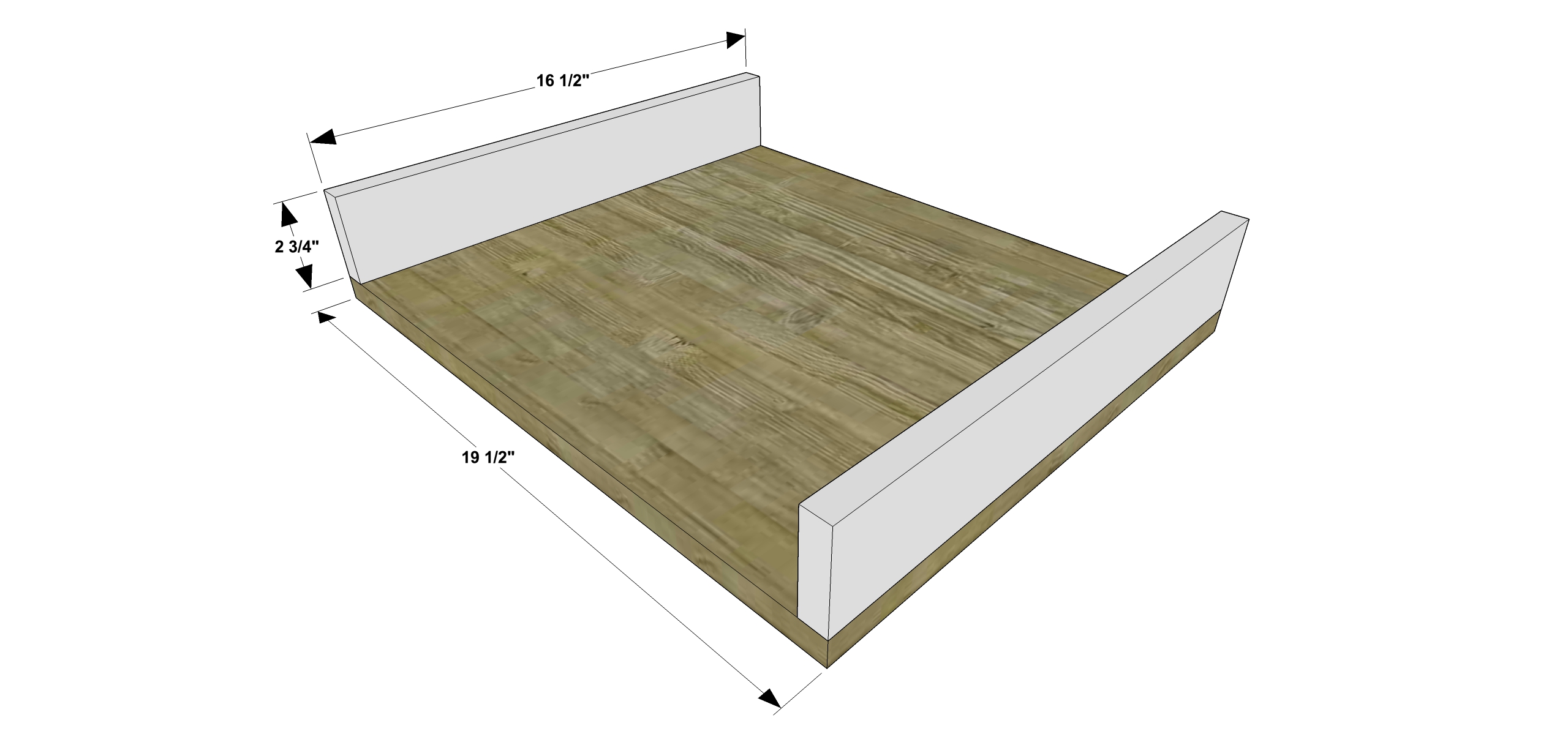

  • Cut the pieces for the Top Drawer Bottom and Sides and secure as shown using glue and 1-1/4” pocket hole screws.

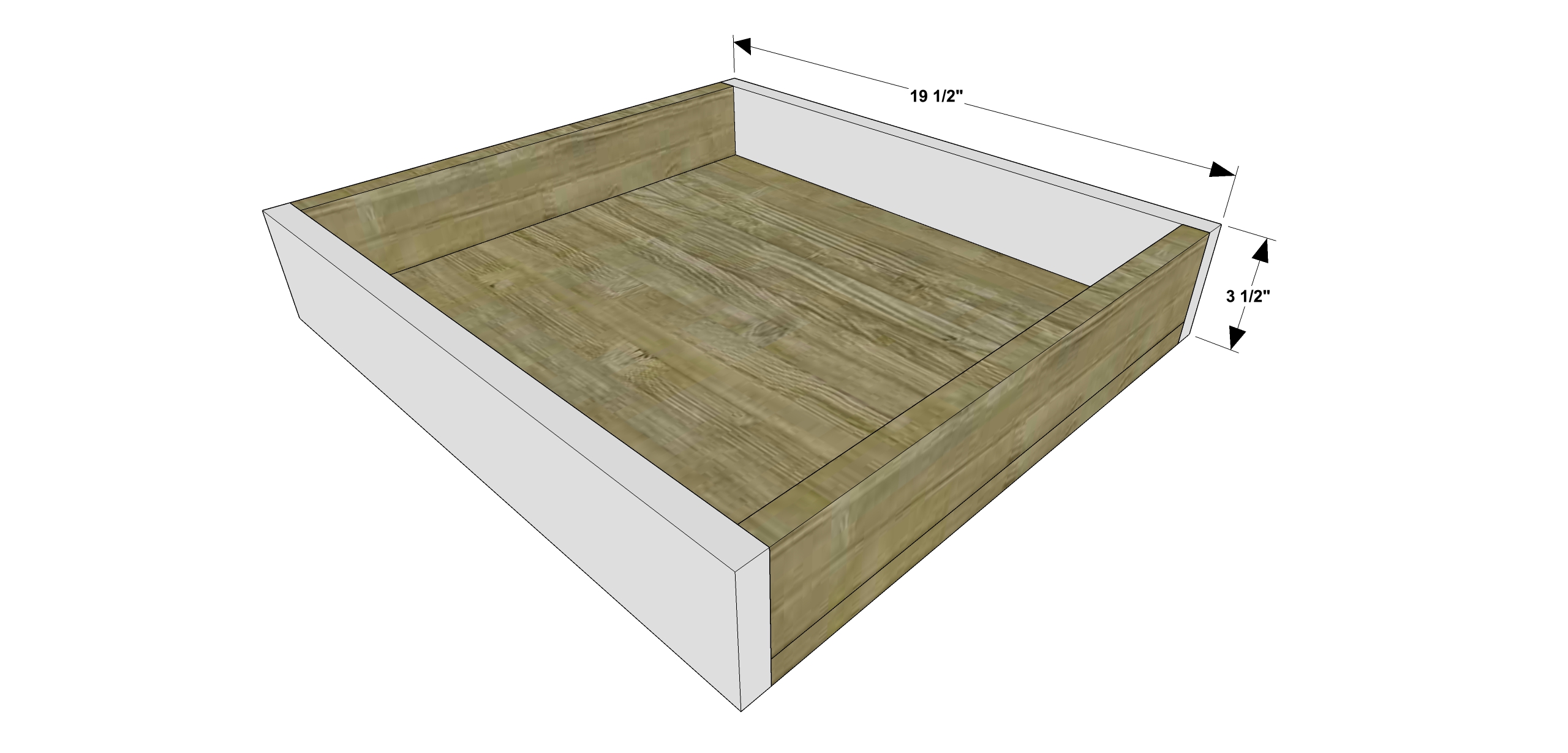

  • Cut and attach the Top Drawer Front and Back Pieces as shown using glue and 1-1/4” pocket hole screws.

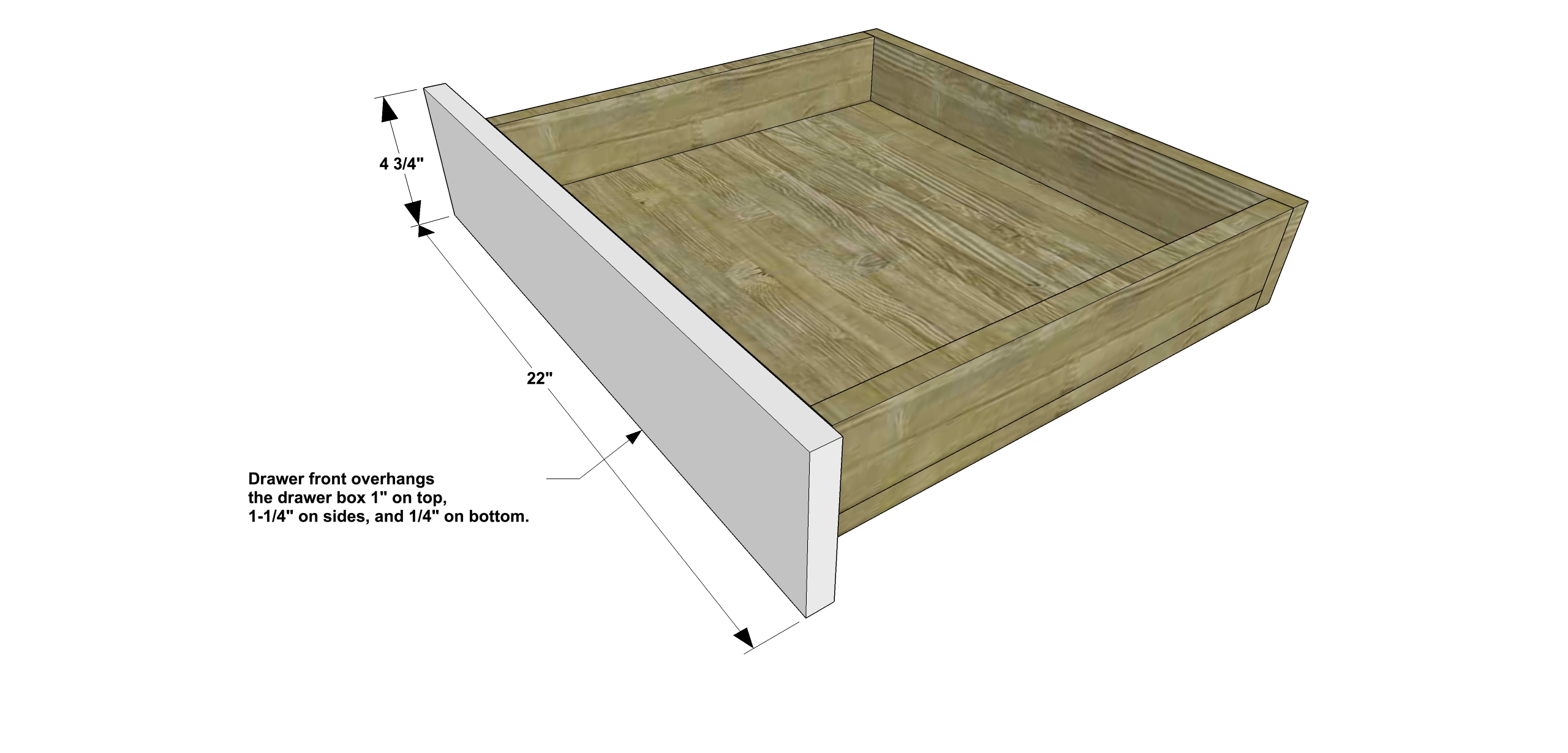

  • Cut and attach the Top Drawer Front to the Drawer Box as shown using glue and 1-1/4” pocket hole screws. The Front will extend 1” above the Drawer Box on the top, 1-1/4” on the sides, and 1/4” on the bottom. Apply a coat of paste wax to the bottom of the Drawer Box to help it slide smoothly. Add drawer hardware such as a pull or knob if desired.

The next three steps will be repeated twice, since this project has two lower drawers of the same size.

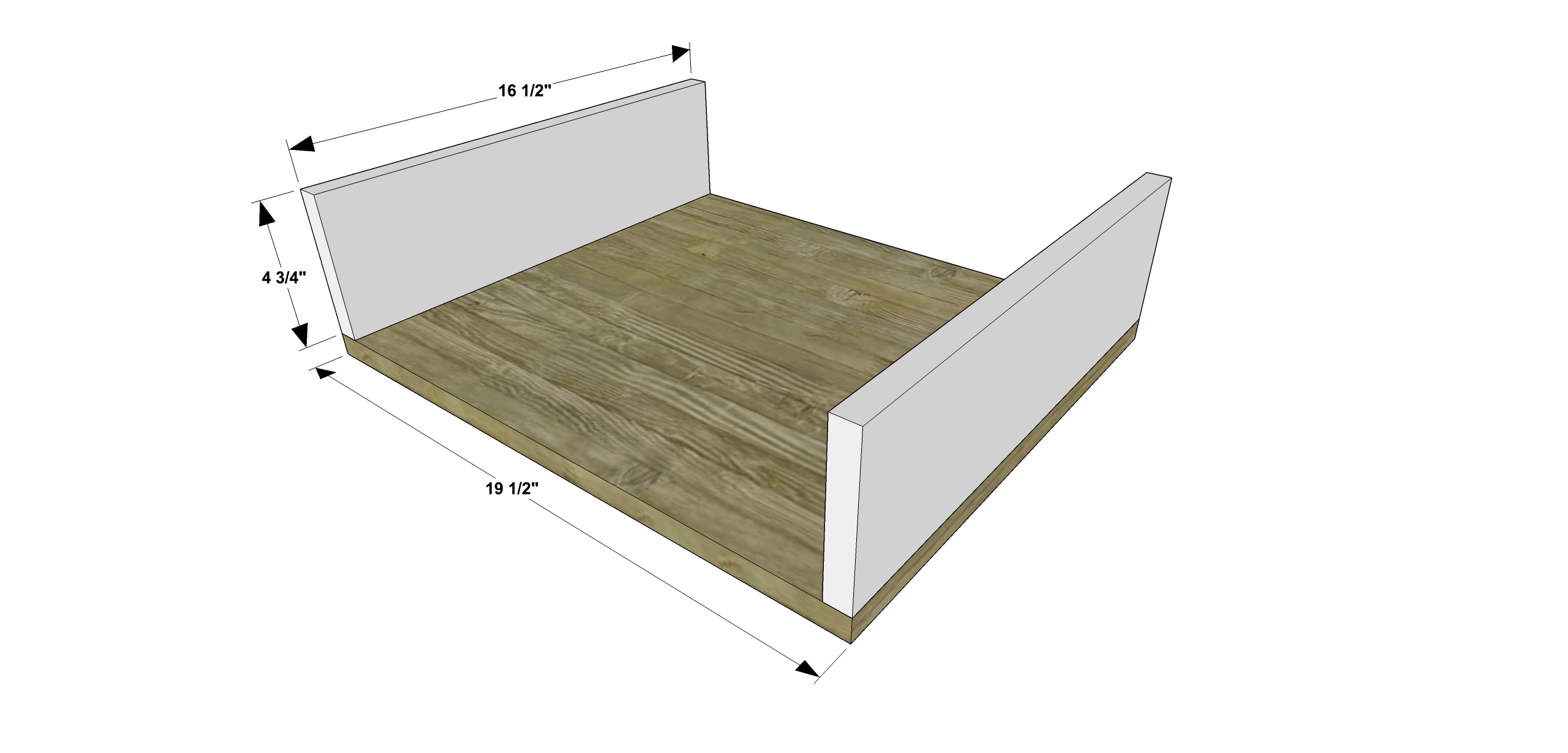

  • Cut the pieces for Bottom Drawer Bottoms and Sides and secure as shown using glue and 1-1/4” pocket hole screws.

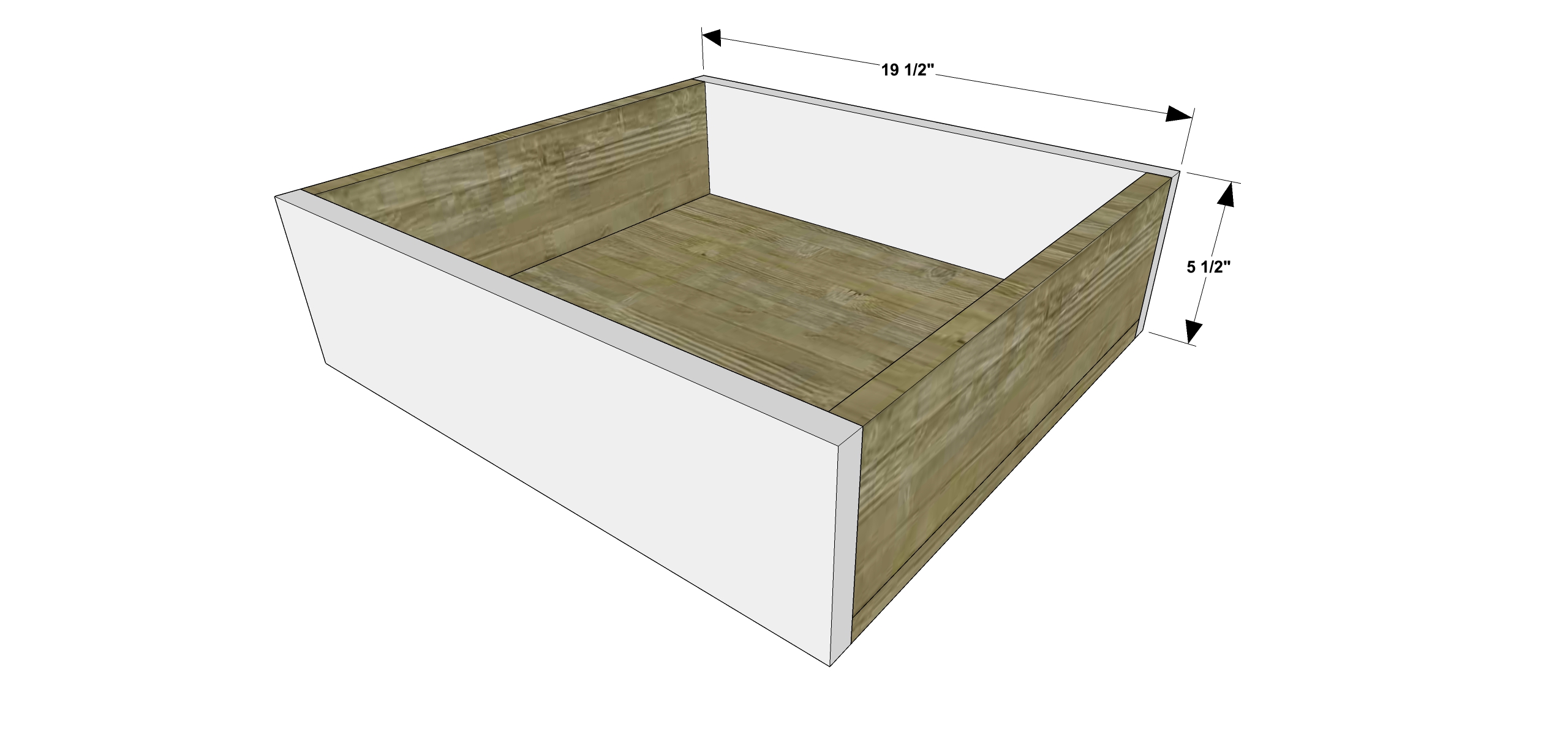

  • Cut and attach the Bottom Drawer Fronts and Back Pieces as shown using glue and 1-1/4” pocket hole screws.

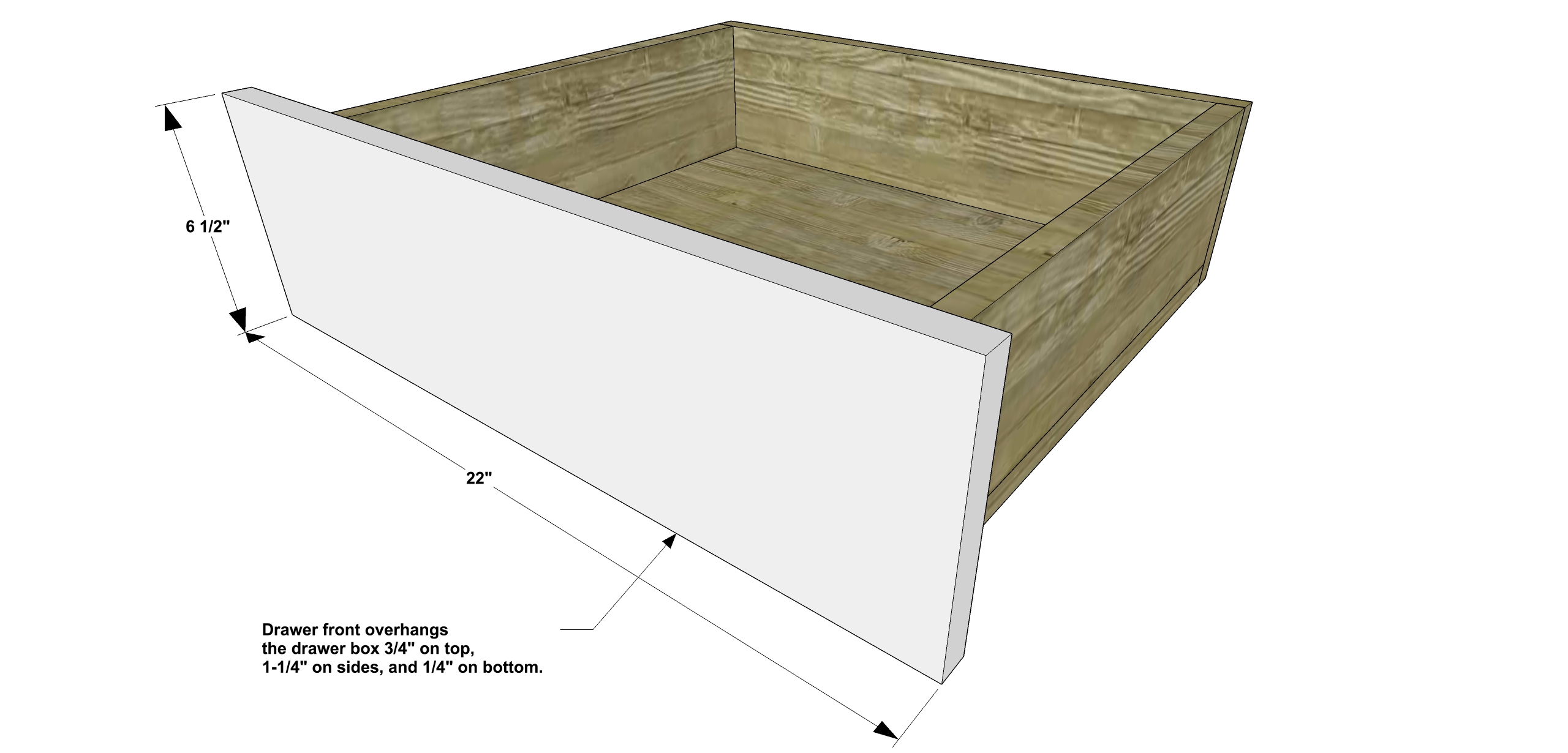

  • Cut and attach the Bottom Drawer Finished Fronts to the Drawer Boxes as shown using glue and 1-1/4” pocket hole screws. The Fronts will extend 3/4” above the Drawer Boxes on the top, 1-1/4” on the sides, and 1/4” on the bottom. Apply a coat of paste wax to the bottom of the Drawer Box to help it slide smoothly. Add drawer hardware such as a pull or knob if desired.

Fill any Screw, Nail or Pocket Holes, Sand and Finish as Desired. For Finishing Tips and Tricks visit my Finishing School
