Free DIY Furniture Plans // How to Build a 4 Post Canopy Bed

07.14.15
You Can Build This! Easy DIY Plans from The Design Confidential Free DIY Furniture Plans // How to Build A 4 Post Canopy Bed via @thedesconf

You’ve been working so hard lately! It’s time for you to have a luxurious bed that you can flop your tired body into at the end of the day. Check out this King Sized 4 Post Canopy Bed! It’s a simple construction with TONS of character. After you wake up from your restful slumber, we want to see your hard work!

As with all of our plans, you are building at your own risk and you should have a firm understanding of building in general before you attempt many of our plans (some are easy as pie and perfect for beginners). With that, go forth, have fun, take lots of pictures and share them in a showcase on the site or on social media with the hashtag #builtTDCtuff and we will share our faves! Be sure to tag @thedesignconfidential on Instagram / FB and @thedesconf on Twitter / Pinterest. If you are a blogger and you post about your build, don’t forget to include a link to your post on your showcase here. Don’t forget… for all of our newer plans, clicking on the images will let them expand to enormous sizes with much greater clarity. The older plans may need updating so please let us know if you need one fixed!

$225-$275
You Can Build This! Easy DIY Plans from The Design Confidential Free DIY Furniture Plans // How to Build A 4 Post Canopy Bed via @thedesconf
  • 4 – 1×2 at 8’
  • 2 – 1×3 at 8’
  • 13 – 1×4 at 8’
  • 9 – 2×4 at 8’
  • 12 – 2×8 at 8’
  • 4 – 4×4 at 8’
  • 4 – 4×4 at 7-1/4” – Legs
  • 2 – 2×8 at 84” – Side Bases
  • 2 – 2×8 at 83” – Head/Foot Bases
  • 5 – 2×4 at 85” – Stretchers
  • 10 – 2×4 at 3-3/4” – Stretcher Bases
  • 2 – 1×3 at 75-1/2” – Cleats
  • 2 – 2×8 at 89-3/4” – Side Bed Frames
  • 2 – 2×8 at 91” – Head/Foot Bed Frames
  • 2 – 1×2 at 91-1/2” – Side Trim
  • 2 – 1×2 at 92-1/2” – Head/Foot Trim
  • 13 – 1×4 at 76-1/2” – Slats
  • 4 – 4×4 at 79-1/4” – Posts
  • 2 – 2×4 at 84” – Head/Foot Canopy Frames
  • 4 – 2×8 at 84” – Headboard Slats
  • 2 – 2×4 at 83” – Side Canopy Frames

Before beginning to build, always check in on my site to make sure you have the most up to date set of plans, I occasionally update and change the plans to make the building process easier or to allow for less expensive purchasing of materials! Read through the entire set of instructions and all comments before beginning this project. If you print out or save plans, be sure to check in on my site to be sure you have the most up to date set of plans, as I occasionally update things for ease of building or buying. If you are new to building, read through the GETTING STARTED section and other articles found under the BUILD tab in the menu on my site, it has valuable information about how to get started, tools and techniques. If you are unfamiliar with the finishing process, visit my Finishing school for some tips and tricks for painting like a pro and for special finishing practices. Use glue to secure your joints and Consider Painting or Staining individual sections prior to assembling. This makes the paint application virtually flawless. Coat with a spray on Poly or Wipe on Poly to protect your finish and your piece and it will last for ages. Adhere to all safety standards and guidelines, and be sure you follow safety protocol throughout your build. If you are unsure about whether you are building safely, run a quick online search for the tool or technique you are using, or contact me via email or post to the forum before you move ahead. My contact info can be found in the menu of my site.

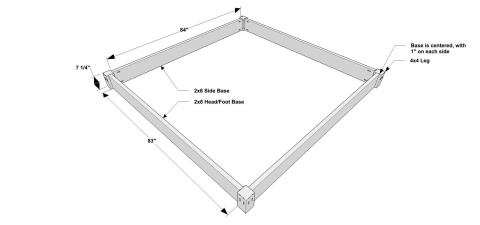

Cut the pieces for the Head/Foot Bases, Side Bases, and Legs. With the Kreg jig set for 1-1/2” material, drill pocket holes in each end of the Head/Foot Bases and Side Bases. Next, drill pocket holes in the two outside sides of the top each Leg (the sides that will not make contact with the Bases). Assemble as shown with glue and 2-1/2” Pocket Screws.

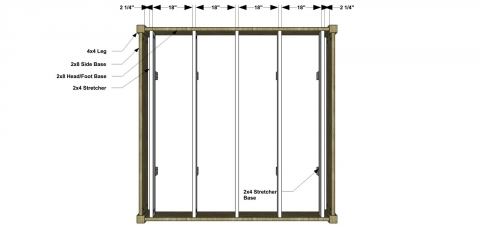

Cut the pieces for the Stretchers and Stretcher Bases. With the Kreg jig set for 1-1/2” material, drill pocket holes in the each end of the Stretchers and in the top end of the Stretcher Bases. Once installed, the top of the Stretchers should be flush with the top of the Bases. Assemble as shown with glue and 2-1/2” Pocket Screws.

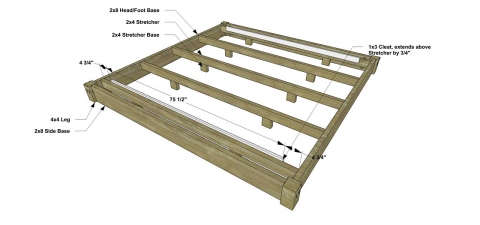

Cut the pieces for the Cleats. Position the Cleats as shown with a 4-3/4” space on each end of the Cleat. The Cleat will be 3/4” above the Stretcher to which it is attached. Assemble as shown with glue and 2” Wood Screws.

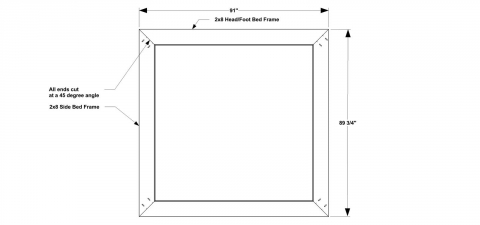

Cut the pieces for the Head/Foot Bed Frames and the Side Frames. The ends should be cut at a 45-degree angle. With the Kreg jig set for 1-1/2” material, drill pocket holes in the each angled end of the Side Frames. Assemble as shown with glue and 2-1/2” Pocket Screws.

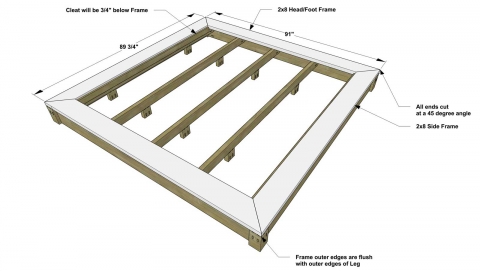

Place the Bed Frame assembly on top of the Base assembly as shown and attach with glue and 2-1/2” Wood Screws. The Cleats will sit 3/4” below the Bed Frame pieces.

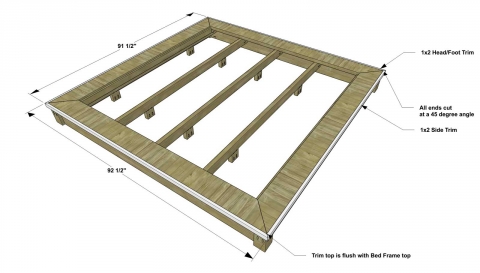

Cut the pieces for Head/Foot Trim and the Side Trim. Each end of the Trim pieces should be cut at a 45-degree angle. Attach to the Frame pieces as shown with glue and 1-1/4” Wood Screws or Brad Nails.

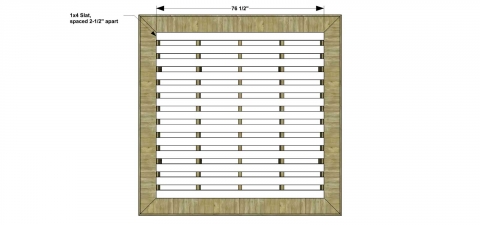

Cut the pieces for the Slats. Position the Slats as shown, approximately 2-1/2” apart. Attach to the Stretchers with 1-1/4” Wood Screws – you should be fine attaching to the first, middle, and last Stretchers only.

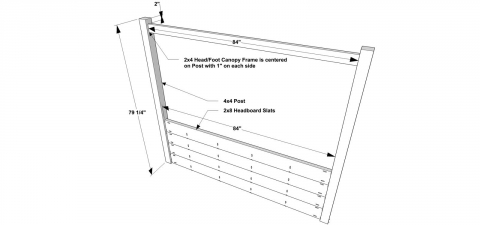

Cut the pieces for the Posts, Headboard Slats, Head/Foot Canopy Frames and Side Canopy Frames. With the Kreg jig set for 1-1/2” material, drill pocket holes in each end of the Canopy Frame pieces. Also, drill pocket holes in two opposite sides of the bottom ends of the Posts. Drill pocket holes in the ends of the Headboard Slat pieces as well as along the long sides to attach the Slats together as shown. Assemble with glue and 2-1/2” Pocket Screws.

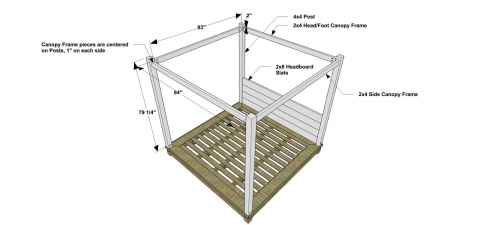

Assemble the remaining Posts and Canopy Frame pieces as shown with glue and 2-1/2” Pocket Screws.

Fill any Screw, Nail or Pocket Holes, Sand and Finish as Desired. For Finishing Tips and Tricks visit my Finishing School

// Disclaimer: Some rights reserved. Private use only. Feel Free to link to any of my plans so long as you ONLY use 1 image and provide an ADEQUATE link back to the original source and appropriate plan! Plans from this page are not to be used for commercial purposes or republished without the express written consent of Rayan Turner, The Design Confidential. By accessing or using any part of the web site, you agree to become bound by the terms and conditions of this website as outlined under Terms of Use. If you do not agree to all the terms and conditions of this agreement, then you may not access the Website or use any services. The information contained in this website is for general information purposes only. The information is provided by The Design Confidential.com and while we endeavor to keep the information up to date and correct, we make no representations or warranties of any kind, express or implied, about the completeness, accuracy, reliability, suitability or availability with respect to the website or the information, products, services, or related graphics contained on the website for any purpose. Any reliance you place on such information is therefore strictly at your own risk. In no event will we be liable for any loss or damage including without limitation, indirect or consequential loss or damage, personal injury or death, or any loss or damage whatsoever arising from loss of information or profits arising out of, or in connection with, the use of this website. I hope to provide accurate plans, however, I cannot guarantee each plan for accuracy. Not every plan that I post has been built and tested, so you are building at your own risk. It is recommended that you have a clear understanding of how the project works before beginning any project. Please contact me if you find an error or inaccuracy so that I might fix it. The Design Confidential.com is inspired by but does not replicate exact designs, any similarities between these plans and items sold at specialty retailers is coincidential and not endorsed by or related to any said retailers. // Post May Contain Affiliate Links

Print Friendly, PDF & Email

2 comments on “Free DIY Furniture Plans // How to Build a 4 Post Canopy Bed”

  1. i want to make a wueen size 4 post canopy bed. i think the dimensions u have would be a lil big.

    1. yep, i think this is the king sized version – though now i am wondering why it doesn’t say so… eek. if you search for queen sized canopy on my site, you should find it easily.
