A favorite for many of you, this plan is the Queen sized version of our King Canopy Bed! Yahoo.
As with all of our plans, you are building at your own risk and you should have a firm understanding of building in general before you attempt many of our plans (some are easy as pie and perfect for beginners). With that, go forth, have fun, take lots of pictures and share them in a showcase on the site or on social media with the hashtag #builtTDCtuff and we will share our faves! Be sure to tag @thedesignconfidential on Instagram / FB and @thedesconf on Twitter / Pinterest. If you are a blogger and you post about your build, don’t forget to include a link to your post on your showcase here. Don’t forget… for all of our newer plans, clicking on the images will let them expand to enormous sizes with much greater clarity. The older plans may need updating so please let us know if you need one fixed!
- 8 – 4×4 at 8’
- 14 – 2×8 at 8’
- 7 – 2×4 at 8”
- 4 – 4×4 at 84” – Posts
- 2 – 4×4 at 61” – Front and Back Frame
- 2 – 4×4 at 92-1/4” – Frame Sides
- 2 – 2×4 at 61” – Front and Back Top Rails
- 2 – 2×4 at 92-1/4” – Top Rail Sides
- 2 – 2×8 at 61” – Front and Back Platform
- 2 – 2×8 at 92-1/4” – Platform Sides
- 2 – 2×4 at 92-1/4” – Cleats
- 1 – 2×4 at 92-1/4” – Center Support
- 2 – 2×4 at 3-3/4” – Center Support Legs
- 13 – 2×8 at 61” – Slats
Before beginning to build, always check in on my site to make sure you have the most up to date set of plans, I occasionally update and change the plans to make the building process easier or to allow for less expensive purchasing of materials! Read through the entire set of instructions and all comments before beginning this project. If you print out or save plans, be sure to check in on my site to be sure you have the most up to date set of plans, as I occasionally update things for ease of building or buying. If you are new to building, read through the GETTING STARTED section and other articles found under the BUILD tab in the menu on my site, it has valuable information about how to get started, tools and techniques. If you are unfamiliar with the finishing process, visit my Finishing school for some tips and tricks for painting like a pro and for special finishing practices. Use glue to secure your joints and Consider Painting or Staining individual sections prior to assembling. This makes the paint application virtually flawless. Coat with a spray on Poly or Wipe on Poly to protect your finish and your piece and it will last for ages. Adhere to all safety standards and guidelines, and be sure you follow safety protocol throughout your build. If you are unsure about whether you are building safely, run a quick online search for the tool or technique you are using, or contact me via email or post to the forum before you move ahead. My contact info can be found in the menu of my site.

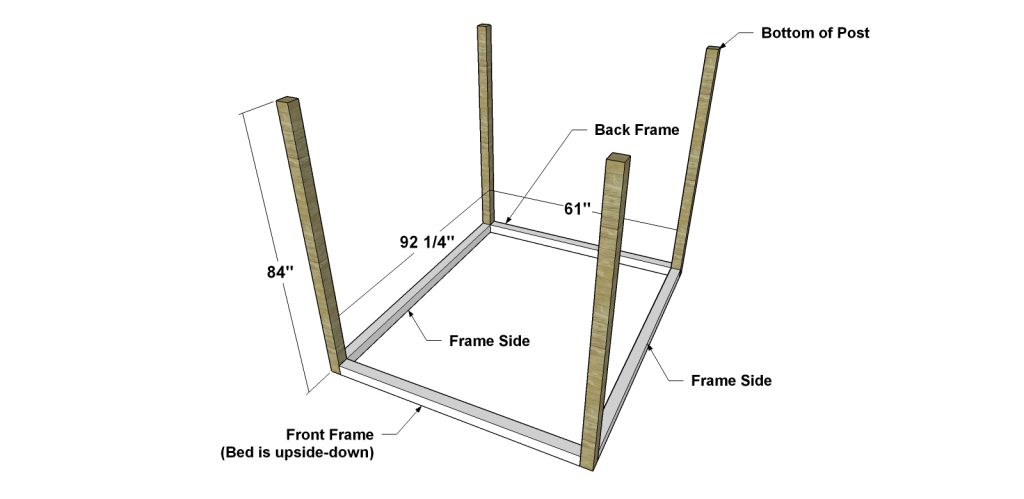

Cut the pieces for the Posts, Front and Back Frame, and Frame Sides. Set the Kreg jig for 1-1/2” material and drill pocket holes in each end of the Frame pieces. Assemble as shown with glue and 2-1/2” pocket screws. At this point, the Bed is upside down so that it is easier to assemble. Make sure that the pocket holes will face the ceiling when the bed is turned right side up.
Flip the piece over. Next, cut the pieces for the Front, Back and Side Top Rails. Set the Kreg jig for 1-1/2” material and drill pocket holes in each end of the Top Rail pieces. Assemble as shown with glue and 2-1/2” pocket screws. Make sure that the pocket holes face the floor when assembled.

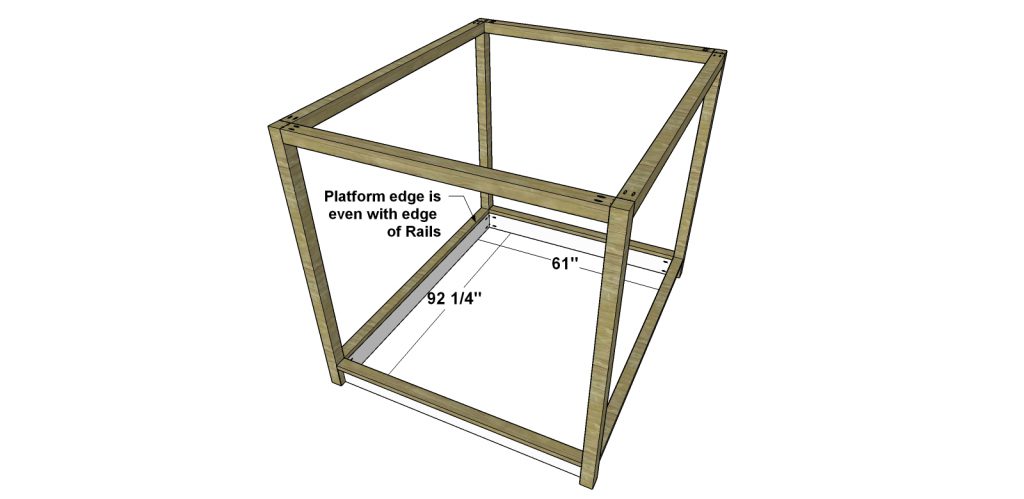

Cut the pieces for the Front, Back, and Side Platform pieces. Set the Kreg jig for 1-1/2” material and drill pocket holes in each end of the Platform pieces. Assemble as shown with glue and 2-1/2” pocket screws. Make sure the pocket holes face the inside of the Bed when assembled. In addition to the pocket screws, you can use 2” wood screws to attach the Top Rails to the Platform pieces.

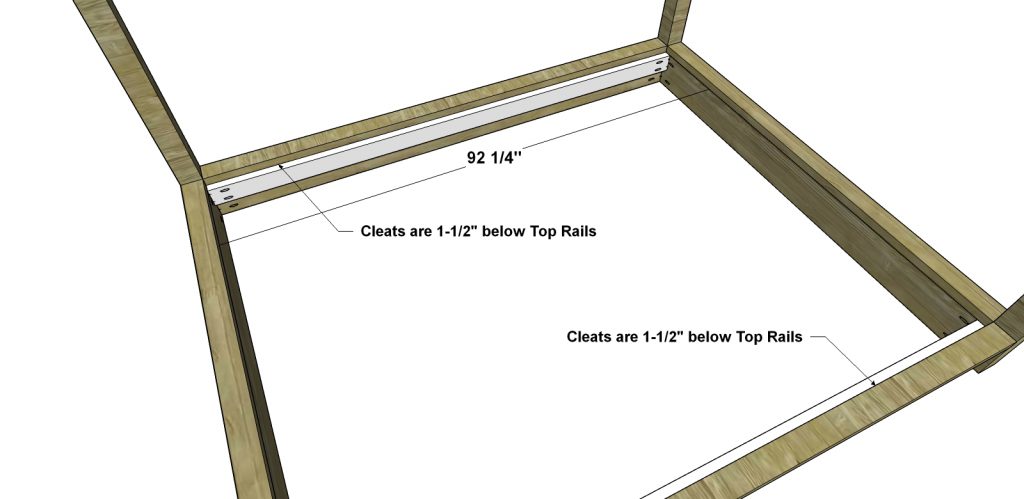

Cut the pieces for the Cleats. Set the Kreg jig for 1-1/2” material and drill pocket holes in each end of the Cleats. Assemble to the Platform Sides as shown with glue and 2-1/2” pocket screws. In addition to the pocket screws, you can use 2” wood screws to attach the Cleats to the Platform.

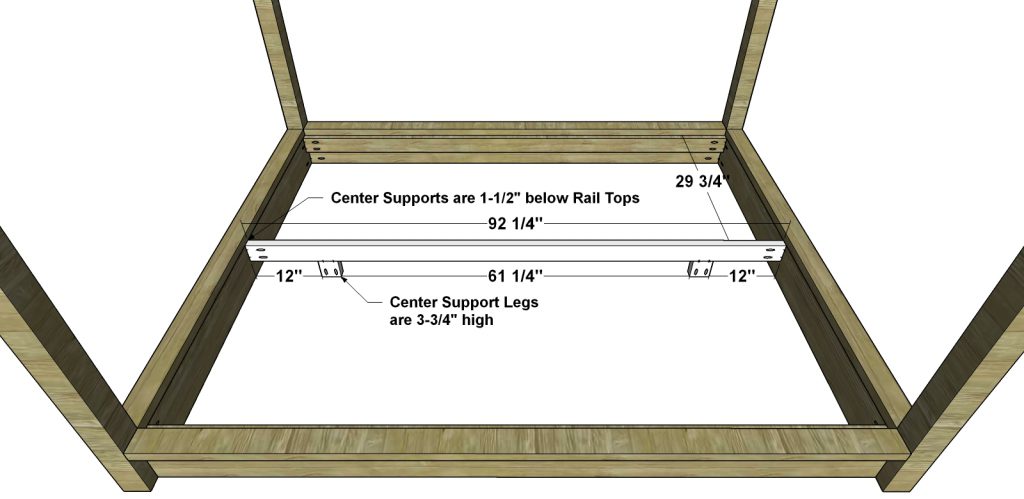

Cut the pieces for the Center Support and Center Support Legs. Set the Kreg jig for 1-1/2” material and drill pocket holes in the top ends of the Center Support Legs and in each end of the Center Support. Attach the Center Support Legs to the Center Support with glue and 2-1/2” pocket screws. Attach the Center Support to the Front and Back Platform pieces and assemble as shown with glue and 2-1/2” pocket screws.

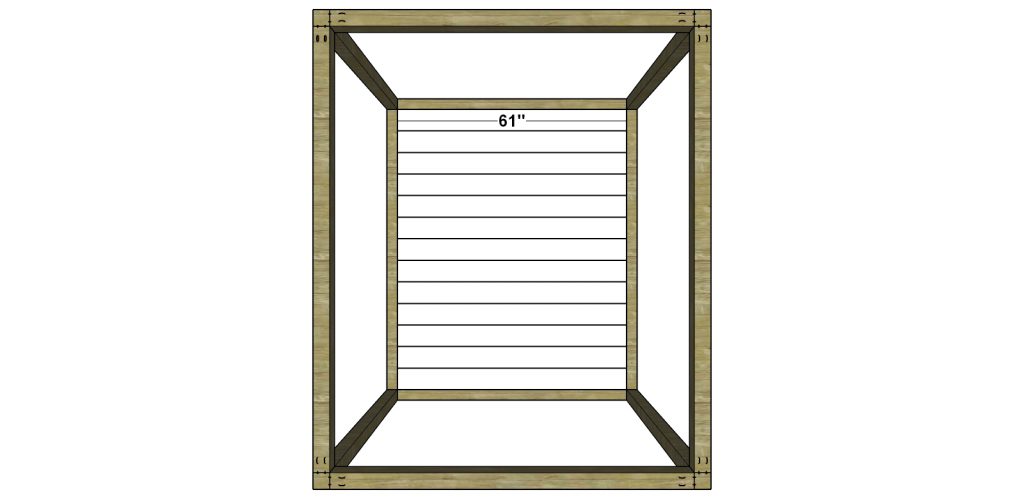

Cut the pieces for the Slats. Attach the Slats to the Cleats and assemble as shown with glue and 2” wood screws.
Fill any Screw, Nail or Pocket Holes, Sand and Finish as Desired. For Finishing Tips and Tricks visit my Finishing School
