Free DIY Furniture Plans to Build a Ballard Designs Inspired Original Office Collection Two Drawer Cabinet! ** The components can be mixed and matched. The length of the top will be cut separately, and depends on the number of components used with at least 24” for leg room if using as a desk. **

Estimated Cost

$25-$50

Dimensions

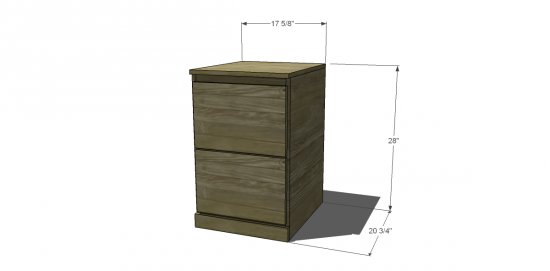

Dimensions for This Project
Tools
  • Tape Measure
  • Saw – Jig, Circular, or Miter
  • Drill
  • Brad nailer
  • Square
  • Sander
  • Kreg Jig
Lumber
  • 1 sheet of ¾” plywood
Materials
  • 1-1/4” pocket hole screws
  • 1-1/4” brad nails
  • Edge banding for plywood
  • 2 sets of 18” drawer slides
  • Wood filler
  • Sandpaper
  • Wood glue
  • Finishing Supplies
Cut List
  •  2 – ¾” plywood at 20” x 27-1/4” – Sides
  • 2 – ¾” plywood at 1-1/2” x 16-1/8” – Upper Stretchers
  • 2 – ¾” plywood at 2-1/2”x 16-1/8” – Lower Stretchers
  • 1 – ¾” plywood at 16-1/8” x 20” – Bottom
  • 1 – ¾” plywood at 16-1/8” x 24” – Back
  • 2 – ¾” plywood at 1-1/2″ x 16-1/8″ – Stretchers
  • 1 – ¾” plywood at 17-5/8” x 20-3/4” – Top
  • 1 – ¾” plywood at 2-1/2” x 17-5/8” – Trim
  • 2 – ¾” plywood at 13-3/8” x 17-1/4” – Drawer Bottom
  • 4 – ¾” plywood at 10-3/8” x 17-1/4” – Drawer Sides
  • 2 – ¾” plywood at 10-3/8” x 14-7/8” – Drawer Back
  • 2 – ¾”plywood at 11-3/8” x 16-5/8” – Drawer Front
Instructions

Before beginning to build, always check in on my site to make sure you have the most up to date set of plans, I occasionally update and change the plans to make the building process easier or to allow for less expensive purchasing of materials! Read through the entire set of instructions and all comments before beginning this project. If you print out or save plans, be sure to check in on my site to be sure you have the most up to date set of plans, as I occasionally update things for ease of building or buying. If you are new to building, read through the GETTING STARTED section and other articles found under the BUILD tab in the menu on my site, it has valuable information about how to get started, tools and techniques. If you are unfamiliar with the finishing process, visit my Finishing school for some tips and tricks for painting like a pro and for special finishing practices. Use glue to secure your joints and Consider Painting or Staining individual sections prior to assembling. This makes the paint application virtually flawless. Coat with a spray on Poly or Wipe on Poly to protect your finish and your piece and it will last for ages. Adhere to all safety standards and guidelines, and be sure you follow safety protocol throughout your build. If you are unsure about whether you are building safely, run a quick online search for the tool or technique you are using, or contact me via email or post to the forum before you move ahead. My contact info can be found in the menu of my site.

Step 1
Step 1

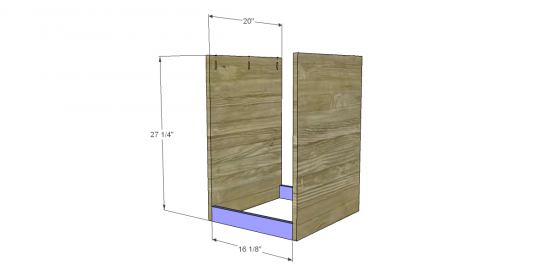

Edge banding will be applied to the exposed edges of the plywood before assembly.

Cut the pieces for the sides and the stretchers. Set the Kreg jig for ¾” material and drill pocket holes in each end of the stretcher pieces, as well as the top edge of the sides. Assemble as shown using glue and 1-1/4” pocket hole screws.

Step 2
Step 2

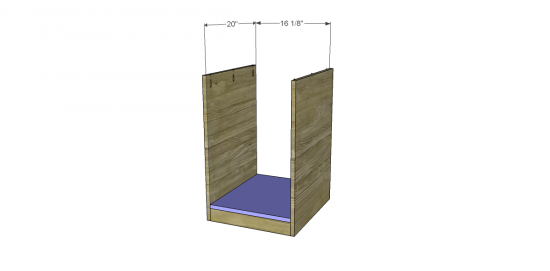

Cut the piece for the bottom and position as shown. Secure to the stretchers using glue and 1-1/4” brad nails.

Step 3
Step 3

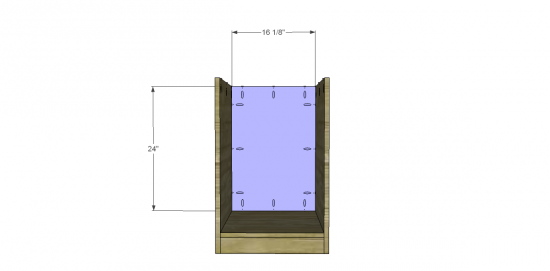

Cut the piece for the back and drill pocket holes in all four edges. Position as shown and secure using glue and 1-1/4” pocket hole screws.

Step 4
Step 4

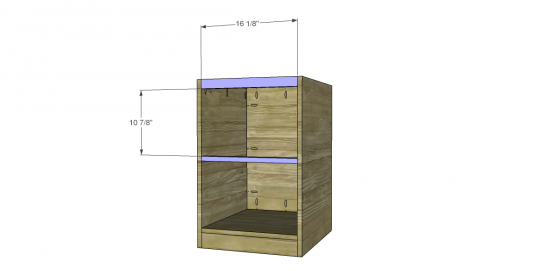

Cut the pieces for the stretchers and drill pocket holes in each end. Position as shown then secure using glue and 1-1/4″ pocket hole acrews.

Step 5
Step 5

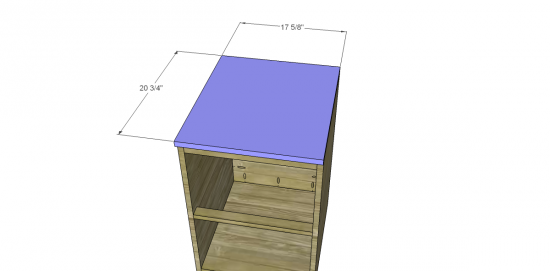

Cut the piece for the top. The front will overlap by ¾”. Secure using glue and 1-1/4” pocket hole screws through the holes drilled in the back and side pieces.

Step 6

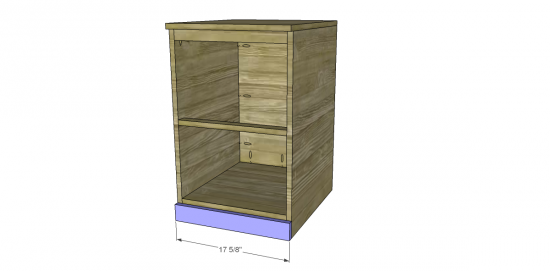

Cut the piece for the trim. Secure in place using glue and 1-1/4” brad nails.

Step 7
Step 7
Step 7
Step 7

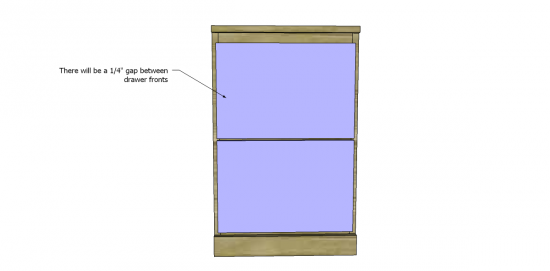

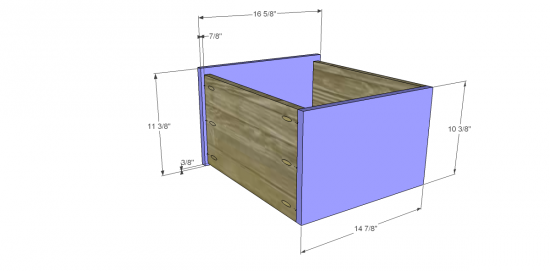

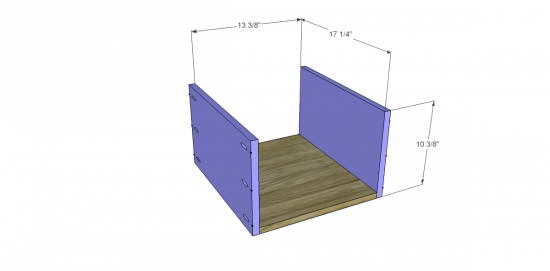

Cut the pieces for the drawers. Drill pocket holes in each end of the side pieces as well as all four edges of the bottom. Assemble as shown using glue and 1-1/4″ pocket hole screws. The fronts will overlap the drawer opening by 3/8” on the sides, and ¼” at the top and bottom.

Install the drawer slides according to the manufacturer’s instructions. For an easy tutorial, click here. Make any necessary adjustments.

Finishing Instructions

Fill any Screw, Nail or Pocket Holes, Sand and Finish as Desired. For Finishing Tips and Tricks visit my Finishing School
