Free DIY Furniture Plans // How to Build a Highland Buffet

06.13.14 By //
You Can Build This! Easy DIY Furniture Plans from The Design Confidential with Complete Instructions on How to Build a Highland Buffet via @thedesconf

While we are hard at work reenginering most of our outdoor seating and lounge plans to work with less expensive cushions, I thought I would bring you a gorgeous modern buffet build! This large piece would be fabulous in an entryway or whever you need extra strorage including it’s potential use in a bedroom and as a place to set your tv! A buffet is ust so versitile really, don’t you think?

If you prefer more of a mid-century style you might also like our Free DIY Furniture Plans to Build a Dumont Buffet and of course if you are looking for a buffet that is versatile for outdoor use our Free DIY Furniture Plans to Build a Chesapeake Buffet is a fabulous option!

As with all of our plans, you are building at your own risk and you should have a firm understanding of building in general before you attempt many of our plans (some are easy as pie and perfect for beginners). With that, go forth, have fun, take lots of pictures and share them in a showcase on the site or on social media with the hashtag #builtTDCtuff and we will share our faves! Be sure to tag @thedesignconfidential on Instagram / FB and @thedesconf on Twitter / Pinterest. If you are a blogger and you post about your build, don’t forget to include a link to your post on your showcase here. Don’t forget… for all of our newer plans, clicking on the images will let them expand to enormous sizes with much greater clarity. The older plans may need updating so please let us know if you need one fixed!

You Can Build This! Easy DIY Furniture Plans from The Design Confidential with Complete Instructions on How to Build a Highland Buffet via @thedesconf
  • 2 – 1×2 at 8’
  • 9 – 1×3 at 8’
  • 3 – 2×2 at 8’
  • 3 sheets of ¾” plywood
  • 2 – 2×2 at 56-1/2” – Base Frame
  • 4 – 2×2 at 13” – Base Frame
  • 1 – ¾” plywood at 17-1/4” x 58-1/2” – Bottom
  • 2 – ¾” plywood at 17-1/4” x 31-3/4” – Sides
  • 1 – ¾” plywood at 31-3/4” x 57” – Back
  • 1 – 1×2 at 57” – Lower Stretcher
  • 2 – 1×2 at 24” – Lower Dividers
  • 6 – 2×2 at 15-3/4” – Shelf Supports & Drawer Slide Supports
  • 1 – ¾” plywood at 15-3/4” x 57” – Shelf
  • 2 – 1×2 at 6-1/4” – Upper Dividers
  • 1 – 1×2 at 58-1/2” – Upper Stretcher
  • 1 – ¾” plywood at 18-1/2” x 58-1/2” – Top
  • 3 – ¾” plywood at 14-1/2” x 15-1/2” – Drawer Box Bottoms
  • 6 – ¾” plywood at 3-1/2” x 14-1/2” – Drawer Box Sides
  • 6 – ¾” plywood at 3-1/2” x 17” – Drawer Box Front & Back
  • 36 – 1×3 at 19-1/4” – Drawer Front Slats & Door Slats
  • 6 – 1×3 at 23-3/4” – Doors

Before beginning to build, always check in on my site to make sure you have the most up to date set of plans, I occasionally update and change the plans to make the building process easier or to allow for less expensive purchasing of materials! Read through the entire set of instructions and all comments before beginning this project. If you print out or save plans, be sure to check in on my site to be sure you have the most up to date set of plans, as I occasionally update things for ease of building or buying. If you are new to building, read through the GETTING STARTED section and other articles found under the BUILD tab in the menu on my site, it has valuable information about how to get started, tools and techniques. If you are unfamiliar with the finishing process, visit my Finishing school for some tips and tricks for painting like a pro and for special finishing practices. Use glue to secure your joints and Consider Painting or Staining individual sections prior to assembling. This makes the paint application virtually flawless. Coat with a spray on Poly or Wipe on Poly to protect your finish and your piece and it will last for ages. Adhere to all safety standards and guidelines, and be sure you follow safety protocol throughout your build. If you are unsure about whether you are building safely, run a quick online search for the tool or technique you are using, or contact me via email or post to the forum before you move ahead. My contact info can be found in the menu of my site.

Edge banding will be applied to the exposed edges of the plywood before assembly.

Cut the pieces for the base frame. Set the Kreg jig for 1-1/2” material and drill pocket holes in each end of the shorter frame pieces. Assemble as shown using glue and 2-1/2” pocket hole screws.

Cut the piece for the bottom. Position on the base so that 1” overlaps the sides and back (1/4” will overlap the front edge). Secure using glue and 1-1/4” brad nails.

Cut the pieces for the sides. Set the Kreg jig for ¾” material and drill pocket holes in each of the shorter edges. Secure to the bottom using glue and 1-1/4” pocket hole screws.

Cut the piece for the back and drill pocket holes in all four edges. Secure to the sides and bottom using glue and 1-1/4” pocket hole screws.

Cut the piece for the lower stretcher and drill pocket holes in each end. Secure to the sides as shown using glue and 1-1/4” pocket hole screws.

Cut the pieces for the lower dividers and shelf supports. Drill pocket holes in each end of the dividers. Attach to the bottom and lower stretcher as shown using glue and 1-1/4” pocket hole screws.

Position the shelf supports as shown. Secure the outer supports to the sides using glue and 1-1/4” brad nails through the outer face of the sides into the support. Secure the inner supports using glue and 1-1/4” brad nails through the dividers and back into the ends of the supports.

Cut the piece for the shelf. Position as shown, then secure to the supports using glue and 1-1/4” brad nails.

Cut the pieces for the upper dividers and supports. Drill pocket holes in one end only of the dividers and secure to the lower stretcher using glue and 1-1/4” pocket hole screws.

Position the drawer slide supports as shown. Secure the supports using glue and 1-1/4” brad nails through the dividers and back into the ends of the supports.

Cut the piece for the upper stretcher. Secure to the cabinet sides and upper dividers using glue and 1-1/4” brad nails.

Cut the piece for the top. The top will overlap the front by ½”. Secure to the sides, back, and upper stretcher using glue and 1-1/4” brad nails.

Cut the pieces for the drawer boxes. Drill pocket holes in each end of the side pieces as well as all four edges of the bottom. Assemble as shown using glue and 1-1/4” pocket hole screws. Install the drawer slides according to the manufacturer’s installation instructions. Install the drawer, then make any necessary adjustments.

Cut the pieces for the drawer front slats. Install the front slats on the outer drawers first. The outside edge of the pieces will be flush with the outer face of the sides and there will be a 1/8” gap between the upper slat and the upper stretcher. Position the slats as indicated then secure to the drawer boxes using glue and 1-1/4” brad nails through the slats into the drawer boxes. There will be a 3/8” gap between the outer drawer front slats and the center drawer front slats with a 1/8” gap between the upper slat and the upper stretcher. Position the slats as indicated then secure to the drawer boxes using glue and 1-1/4” brad nails through the slats into the drawer boxes.

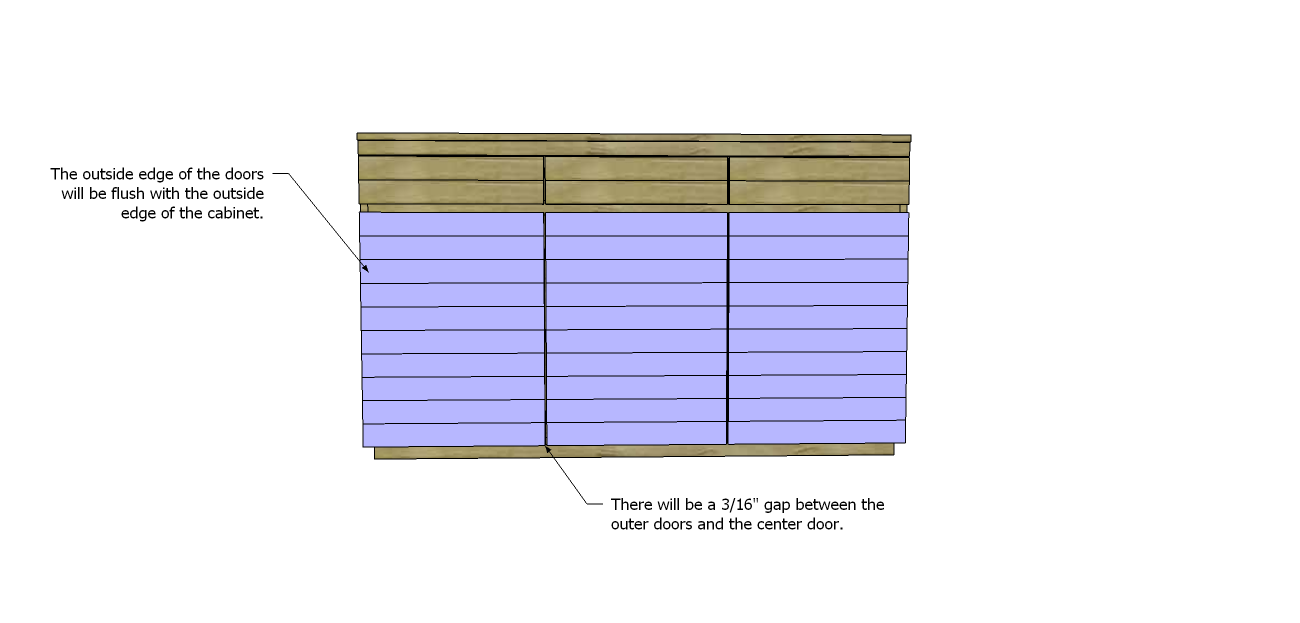

Cut the pieces for the doors. Position the slats as indicated in the drawing. Secure the vertical pieces using glue and 1-1/4” brad nails.

Install the European hinges according to the manufacturer’s installation instructions. Install the outer doors first, with the outside edges flush with the outside face of the sides. The bottom edge of the doors will be flush with the bottom. Make any necessary adjustments.

Install the center door with a 3/8” gap between the outer doors and the center door using the regular cabinet hinges mounted to the face of the divider. Make any necessary adjustments.

Fill any Screw, Nail or Pocket Holes, Sand and Finish as Desired. For Finishing Tips and Tricks visit my Finishing School
