Free DIY Furniture Plans: How to Build an Outdoor Reef Chair with Modifications for Cushions from Target

06.06.14 By //

I actually wanted to add a ‘woot woot’ to the title, but I figured I would restrain myself and show a bit of composure here, you know… like a lady and all. Right. So we are beginning to roll out our mods to some of the popular pieces that many of you have requested we adjust. These mods will accommodate some much less expensive, standard sized and much more readily available cushion options. You guys, I couldn’t agree more that this is much needed but honestly until recently not many of the retailers have graced us with a variety of cushion options that are inexpensive, mix and match and not custom to a specific piece of their own furniture lines. So of course, once the build is all said and done, it’s the dang cushions that either stump you or set you back a pretty penny. Well, thank you to the Targets Home Depots, and IKEAs of the world for hearing our DIY prayers, am I right?

Each furniture collection and piece will likely have an option or two that work most easily with it according to it’s size and shape. I’m hoping for the path of least resistance here my friends and the lowest cost possible. The Free DIY Furniture Plans to Build a Reef Sofa and Free DIY Furniture Plans to Build a Reef Chair have quickly become two of our most popular builds (take a peak through our Showcase Gallery and our hashtag #builtTDCtuff and you will see) so I’m starting with these…

We have also finished the Free DIY Furniture Plans for Building an Outdoor Reed Sofa with Modifications for Cushions from Target ! Now we have a set!

The cushion options here that will work best are the Outdoor Deep Seating Cushions set and one or two Outdoor Back Cushions for the back.

As with all of our plans, you are building at your own risk and you should have a firm understanding of building in general before you attempt many of our plans (some are easy as pie and perfect for beginners). With that, go forth, have fun, take lots of pictures and share them in a showcase on the site or on social media with the hashtag #builtTDCtuff and we will share our faves! Be sure to tag @thedesignconfidential on Instagram / FB and @thedesconf on Twitter / Pinterest. If you are a blogger and you post about your build, don’t forget to include a link to your post on your showcase here. Don’t forget… for all of our newer plans, clicking on the images will let them expand to enormous sizes with much greater clarity. The older plans may need updating so please let us know if you need one fixed!

You Can Build This! Easy DIY Plans from The Design Confidential with Complete Instructions on How to Build a Reef Outdoor Chair via @thedesconf
  • 4 – 2×4 at 8’
  • 4 – 1×4 at 8’
  • 4 – 2×4 at 27 1/4” – Legs
  • 2 – 2×4 at 33 3/4” – Side Frames
  • 2 – 2×4 at 36 3/4” – Top
  • 1 – 2×4 at 29” – Top
  • 2 – 2×4 at 22” – Seat Support
  • 1 – 2×4 at 22” (ripped to 2-3/4” wide) – Seat Support
  • 3 – 1×4 at 24” – Seat Slats
  • 8 – 1×4 at 14-3/4” – Side Slats
  • 3 – 1×4 at 16-3/4” – Back Slats

Before beginning to build, always check in on my site to make sure you have the most up to date set of plans, I occasionally update and change the plans to make the building process easier or to allow for less expensive purchasing of materials! Read through the entire set of instructions and all comments before beginning this project. If you print out or save plans, be sure to check in on my site to be sure you have the most up to date set of plans, as I occasionally update things for ease of building or buying. If you are new to building, read through the GETTING STARTED section and other articles found under the BUILD tab in the menu on my site, it has valuable information about how to get started, tools and techniques. If you are unfamiliar with the finishing process, visit my Finishing school for some tips and tricks for painting like a pro and for special finishing practices. Use glue to secure your joints and Consider Painting or Staining individual sections prior to assembling. This makes the paint application virtually flawless. Coat with a spray on Poly or Wipe on Poly to protect your finish and your piece and it will last for ages. Adhere to all safety standards and guidelines, and be sure you follow safety protocol throughout your build. If you are unsure about whether you are building safely, run a quick online search for the tool or technique you are using, or contact me via email or post to the forum before you move ahead. My contact info can be found in the menu of my site.

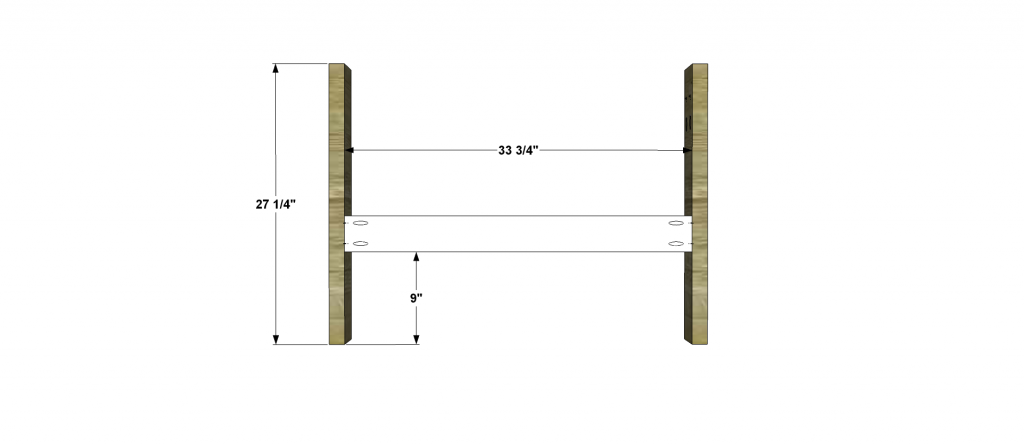

Cut the pieces for the sides. Set the Kreg jig for 1-1/2” material and drill pocket holes in each end of the 33 3/4” piece as well as the top only of the legs. Assemble using glue and 2-1/2” pocket hole screws.

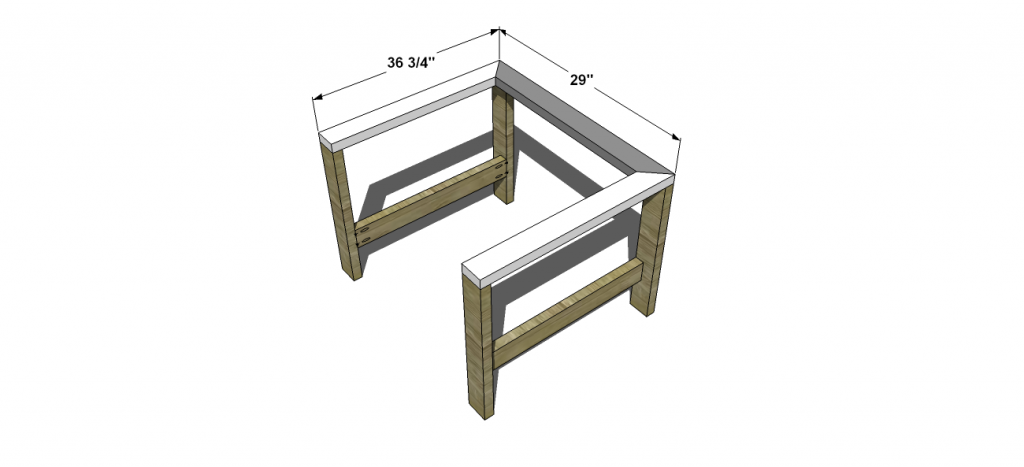

Cut the pieces for the top. Cut 45 deg. angles in each end of the short piece as well as one end of the long pieces (there will be a left and right). Drill pocket holes in the mitered ends and assemble with glue and 2” pocket hole screws. Place on the side assemblies and attach using glue and 2” pocket hole screws through the top of the legs into the top piece.

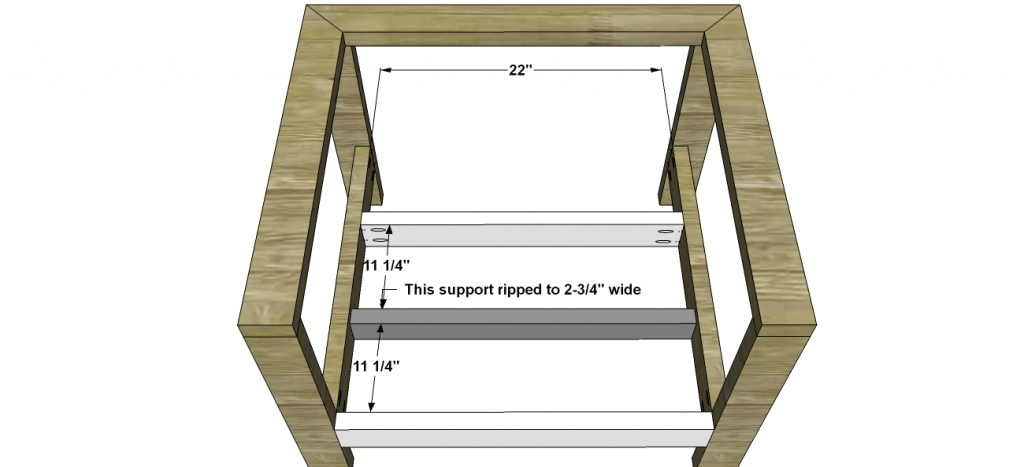

Cut the pieces for the seat supports. The center support will be a 2×4 ripped to 2-3/4” wide and will be located ¾” down from the top of the side stretcher piece to allow for the seat slats. Attach all pieces at the spacing indicated (with the front piece flush with the front of the side frame) to the side frames using glue and 2-1/2” pocket hole screws.

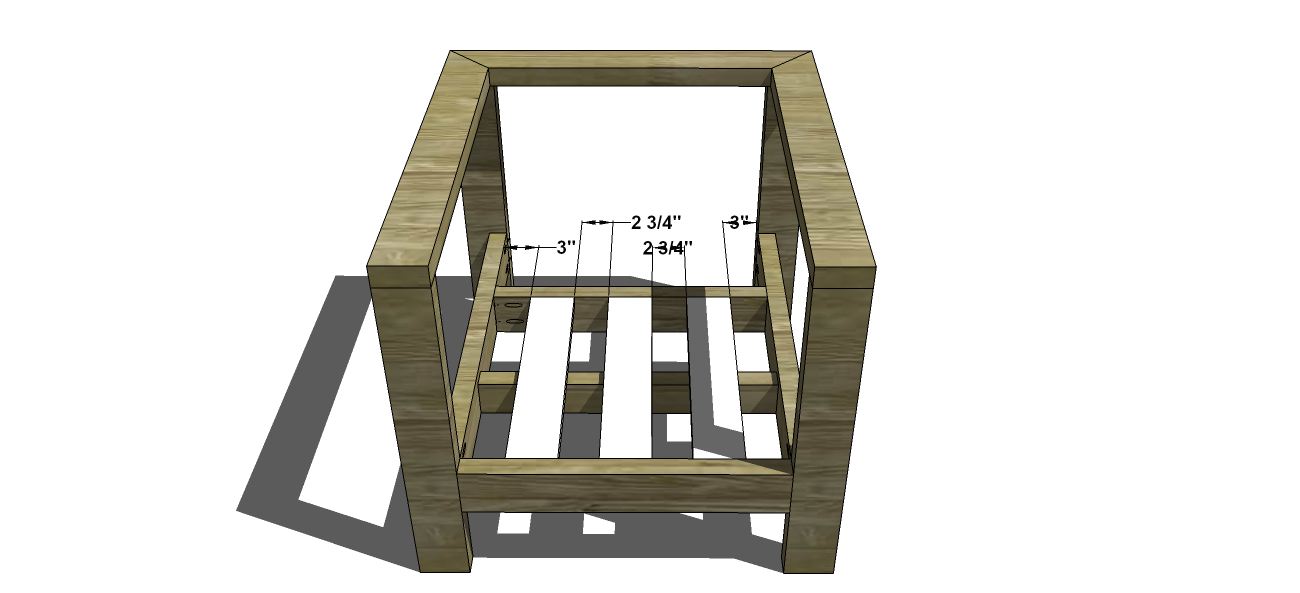

Cut the pieces for the seat slats. Set the Kreg jig for ¾” material and drill pocket holes in each end. Attach to the seat supports using glue and 1-1/4” pocket hole screws. Secure the center of the slats to the center of the support with 1-1/4” brad nails.

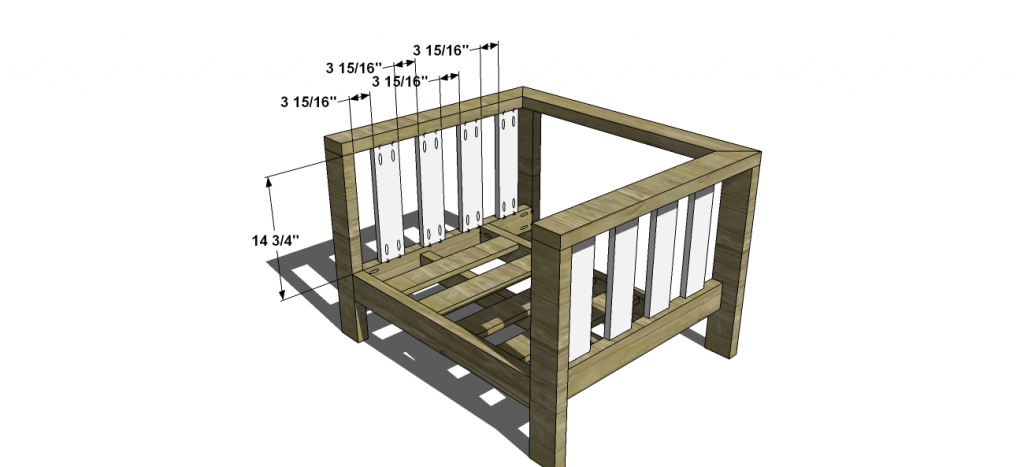

Cut the pieces for the side slats. Drill pocket holes in each end. Attach to the side frames at the spacing indicated with glue and 1-1/4” pocket hole screws.

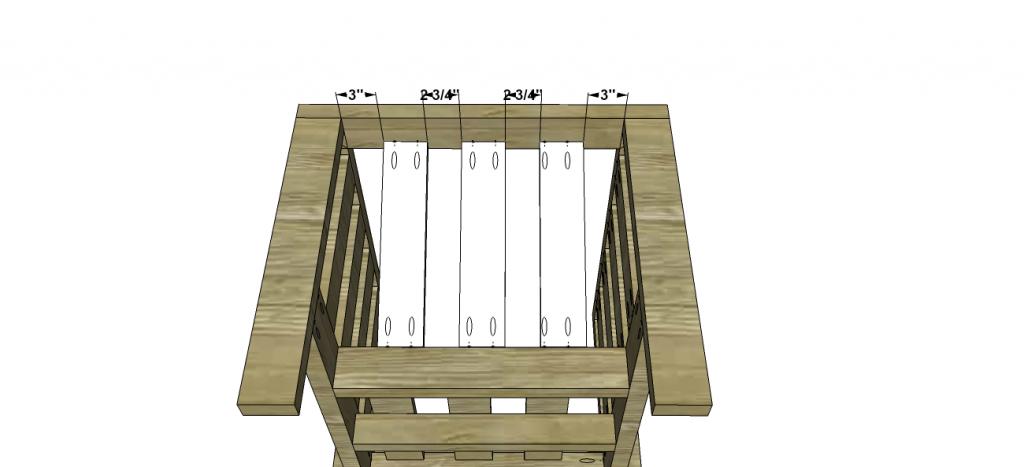

Cut the pieces for the back slats. The angles may be a little tricky but they should be cut at approximately 25 deg. (see drawing). Once the angles are cut, drill pocket holes in the end of each slat. Attach to the back support and top with glue and 1-1/4” pocket hole screws.

Fill any Screw, Nail or Pocket Holes, Sand and Finish as Desired. For Finishing Tips and Tricks visit my Finishing School

// Disclaimer: Some rights reserved. Private use only. Feel Free to link to any of my plans so long as you ONLY use 1 image and provide an ADEQUATE link back to the original source and appropriate plan! Plans from this page are not to be used for commercial purposes or republished without the express written consent of Rayan Turner, The Design Confidential. By accessing or using any part of the web site, you agree to become bound by the terms and conditions of this website as outlined under Terms of Use. If you do not agree to all the terms and conditions of this agreement, then you may not access the Website or use any services. The information contained in this website is for general information purposes only. The information is provided by The Design and while we endeavor to keep the information up to date and correct, we make no representations or warranties of any kind, express or implied, about the completeness, accuracy, reliability, suitability or availability with respect to the website or the information, products, services, or related graphics contained on the website for any purpose. Any reliance you place on such information is therefore strictly at your own risk. In no event will we be liable for any loss or damage including without limitation, indirect or consequential loss or damage, personal injury or death, or any loss or damage whatsoever arising from loss of information or profits arising out of, or in connection with, the use of this website. I hope to provide accurate plans, however, I cannot guarantee each plan for accuracy. Not every plan that I post has been built and tested, so you are building at your own risk. It is recommended that you have a clear understanding of how the project works before beginning any project. Please contact me if you find an error or inaccuracy so that I might fix it. The Design is inspired by but does not replicate exact designs, any similarities between these plans and items sold at specialty retailers is coincidental and not endorsed by or related to any said retailers. // Affiliate links are used for tools and materials. The Design Confidential will earn a small commission for any items purchased using these links. Thank you for your support – every little bit counts!

Print Friendly, PDF & Email

3 comments on “Free DIY Furniture Plans: How to Build an Outdoor Reef Chair with Modifications for Cushions from Target”

  1. Just finished building this chair. I purchased the deep seating cushions based on the plans, and the seat cushion I used is 24” wide x 25” deep. I had to modify the plans to accommodate the width because what is posted here is for 22” wide cushions. Having no actual dimensions given for the cushions, I proceeded hoping the build would work. Unfortunately, the seat built as per the plans is much deeper than the seat cushion: 24” of seat slat plus the thickness of the front seat support plus the angle on the back results in a finished seat depth of about 26”, so the cushion doesn’t fit. If I modify the angle of the back slats to make the seat shorter, it will be reclined far too much. Very frustrating! I think something has gone wrong with the modification of the plans unfortunately.
